Turning Point Hustler 3-Blade Aluminum Propeller — 3" Gearcase — 10/14-Spline Applications

$80.48 $113.00

In stock

- Ships same or next business day.

Select propeller

🛡️ PARTSDUCK Promise - Best price, great support & more

More than just a price match! Best price, fast shipping, great stock, real support. More Here

Free Shipping Over $99

In stock items ship same or next business day from the closest of our 20+ warehouses with stock. Economy Shipping is free over $99.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday EST.

(856) 666-7986

No Fee Returns for 30 Days

No restocking fees on most items, full Return Policy

Description

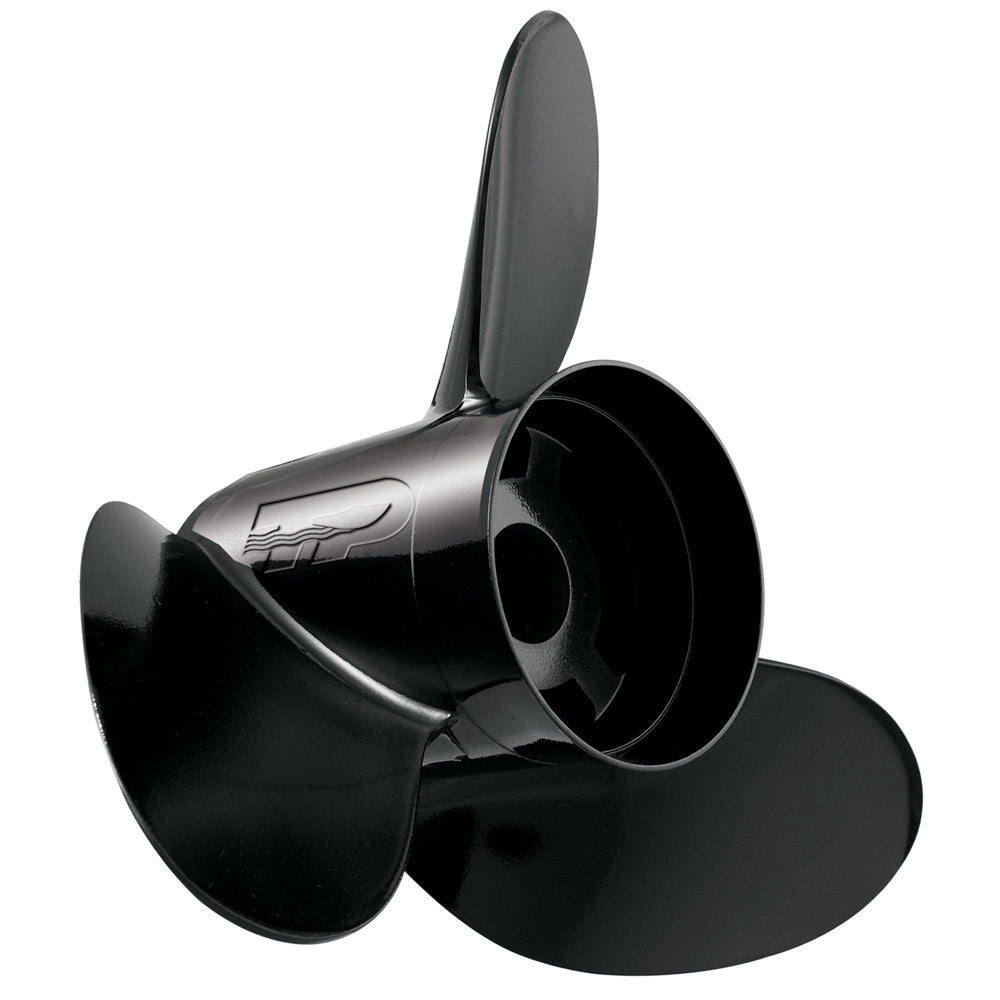

The Turning Point Hustler R1 is a 3-blade aluminum propeller housing in the 3-inch gearcase family. Compare the available pitch and rotation with your engine requirements and loaded boating conditions. Engine fitment requires the correct separate installation/hub kit; gearcase family or horsepower alone does not establish compatibility.

Sold as one propeller housing. The engine-specific hub/installation kit is required and sold separately. Choose the exact propeller from the dropdown. Each choice lists diameter x pitch, rotation and manufacturer part number; use the specification table below to compare.

Exact specifications by part number

Part number	PartsDuck SKU	Diameter	Pitch	Rotation	Material	Blades
21201110	PD-31683	10.5 in	11 in	Right Hand	Aluminum	3
21201310	PD-31684	10.125 in	13 in	Right Hand	Aluminum	3

Design details

Separate prop housing and engine-specific installation kit allow the hub and prop to be selected for the application.

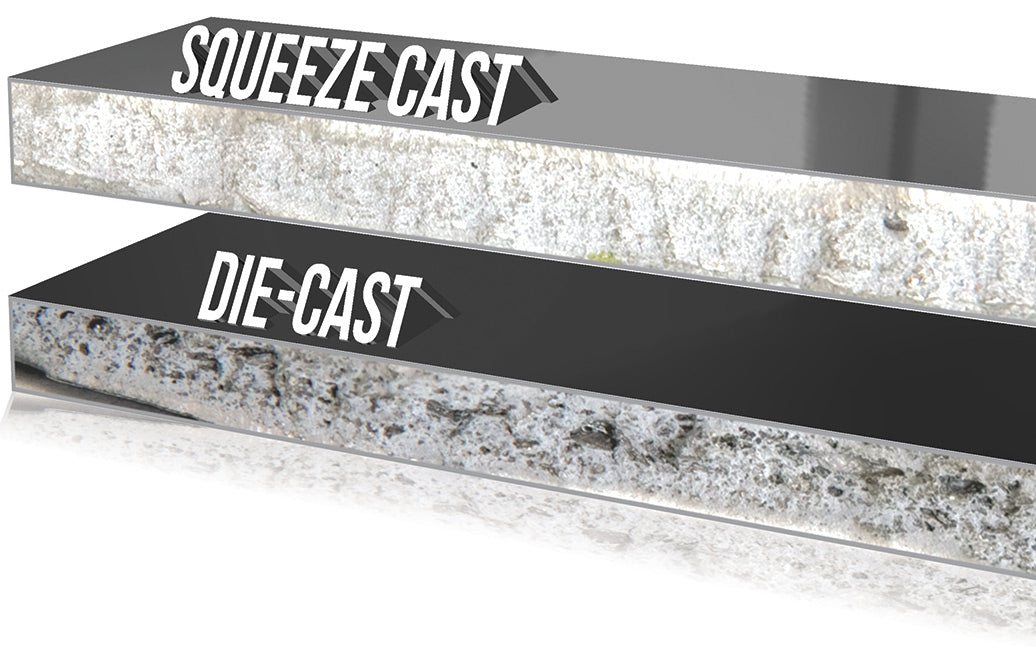

Squeeze-cast aluminum construction.

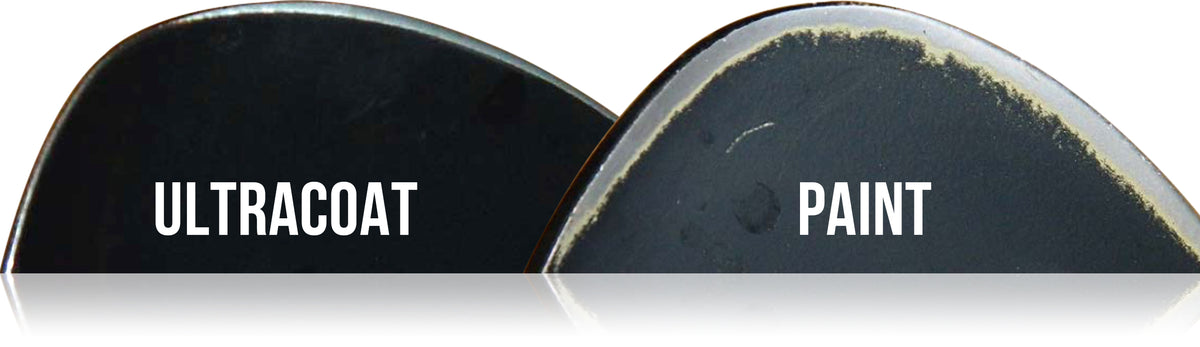

Ultracoat powder-coated finish.

Performance depends on hull, engine, load, mounting height and trim. A different blade count or design may require a different pitch even when replacing a prop with the same stamped pitch.

Hub and engine compatibility

Start with the exact engine manufacturer, model, year, gearcase and shaft spline count in Prop Wizard. The following kit references are application-dependent choices, not a list of interchangeable hubs. Applications marked four-blade-only or OS-only require that specified prop design.

Hub kit and engine application chart — R1 prop housing
Engine application and fitment requirements	Shop hub kit
10-spline Force 25 hp (1995–1998), Mercury/Mariner 2-stroke 18 (1980–1985), 20 (1986+), 25 (1985+), and 4-stroke Bigfoot/Sail 9.9/15 hp (1999–2005). Hustler R1 / Express EX1, 3-inch gearcase family.	Kit 21 — 11200100
14-spline Evinrude/Johnson 2-stroke 20, 25 (1984+), commercial 25 (1993–2005), 30 (1984+), 35 (1976–2005); E-TEC 25/30 and H.O. 15 hp. Hustler R1 / Express EX1, 3-inch gearcase family.	Kit 22 — 11200200

Choosing pitch and rotation

Record the current prop part number, diameter, pitch and rotation.
Check the engine maker’s recommended wide-open-throttle RPM range and record actual RPM and GPS speed with the normal passenger, fuel and gear load.
Use Prop Wizard with the exact engine and boat details; do not select by horsepower alone.
Confirm right-hand or left-hand rotation, particularly on twin-engine installations. Left-hand is not a substitute for right-hand.
After installation, water-test under normal load and confirm operation within the engine maker’s RPM range.

Installation and package

Package: one propeller housing. Hub kit and engine-specific installation hardware are separate. Follow the installation-kit instructions and engine manual for washer order, shaft preparation, retaining hardware, torque and locking procedure. Check full rotation and trim-tab clearance before operation. Do not assume the old hub or hardware will fit the new prop.
