Description
Description

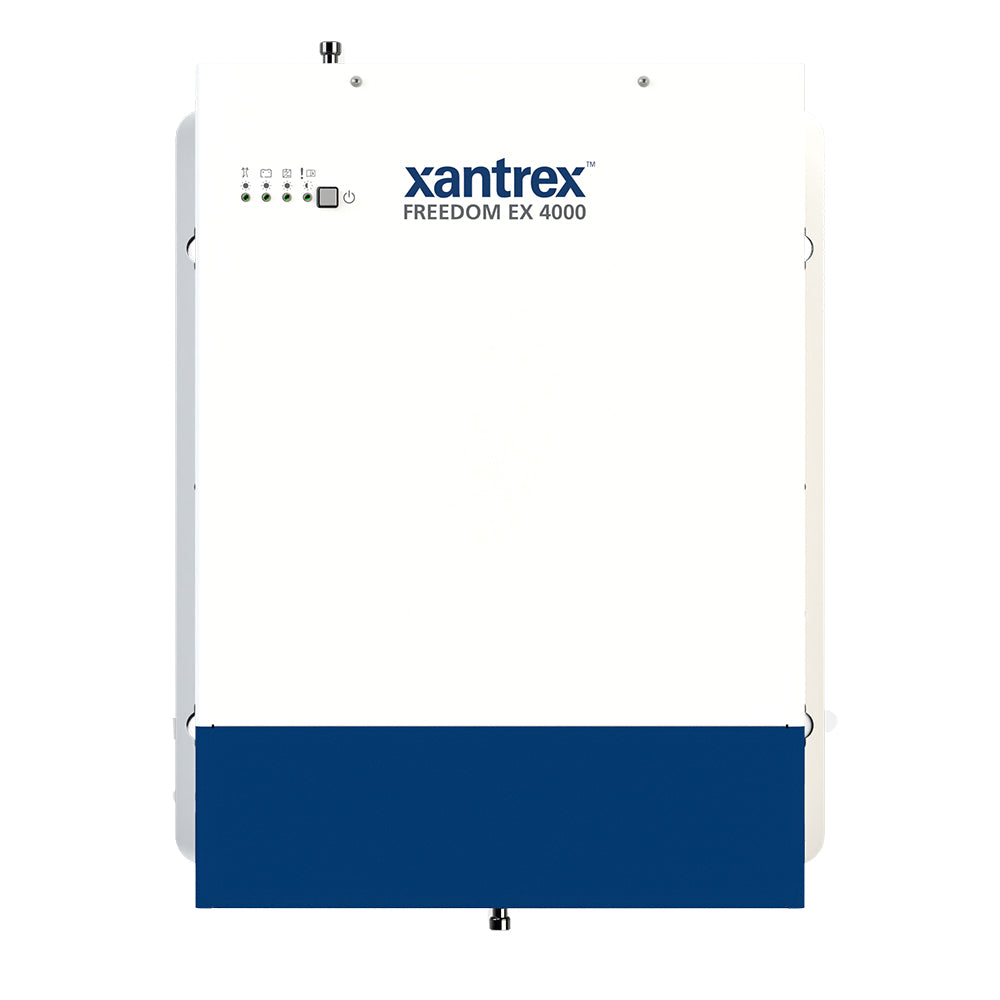

FREEDOM EX 4000 - 4000W Inverter/Charger 80A 120V/48VDC
The FREEDOM EX 4000 is a truly unique, true sine wave power solution packing a powerful 48VDC, 4000W (8000W [5s]) inverter, 80A 48VDC battery charger, 50A transfer relay, and a 48VDC to 12VDC, 45A converter inside one box. Designed for mobile applications that utilize 48VDC battery systems, the FREEDOM EX 4000 is designed to work as a standalone AC and DC power solution or supplement an existing generator to create a hybrid system. The FREEDOM EX 4000 features the most widely used communication protocols – RV-C (RV), enabling it to be used in virtually any application that requires integration with 3rd party MFPs and software.
Features:
- Stack up to 3 units in parallel; up to 2 units in series
- 48VDC to 12VDC converter output
- Highly configurable charger specifically designed for lithium-ion batteries
- Built-in 50A Transfer Relay
- Extended Surge Rating to 2X continuous power for 5 seconds
- True Sine Wave AC Power
- Ignition Control Feature to turn the inverter on/off via a 12VDC signal
- Easily configurable settings to charge any lithium-ion battery
Quick Guide (pdf)
Owner's Manual (pdf)
