Victron Energy  |  SKU: PD-88340  |  Barcode: 8719076023043

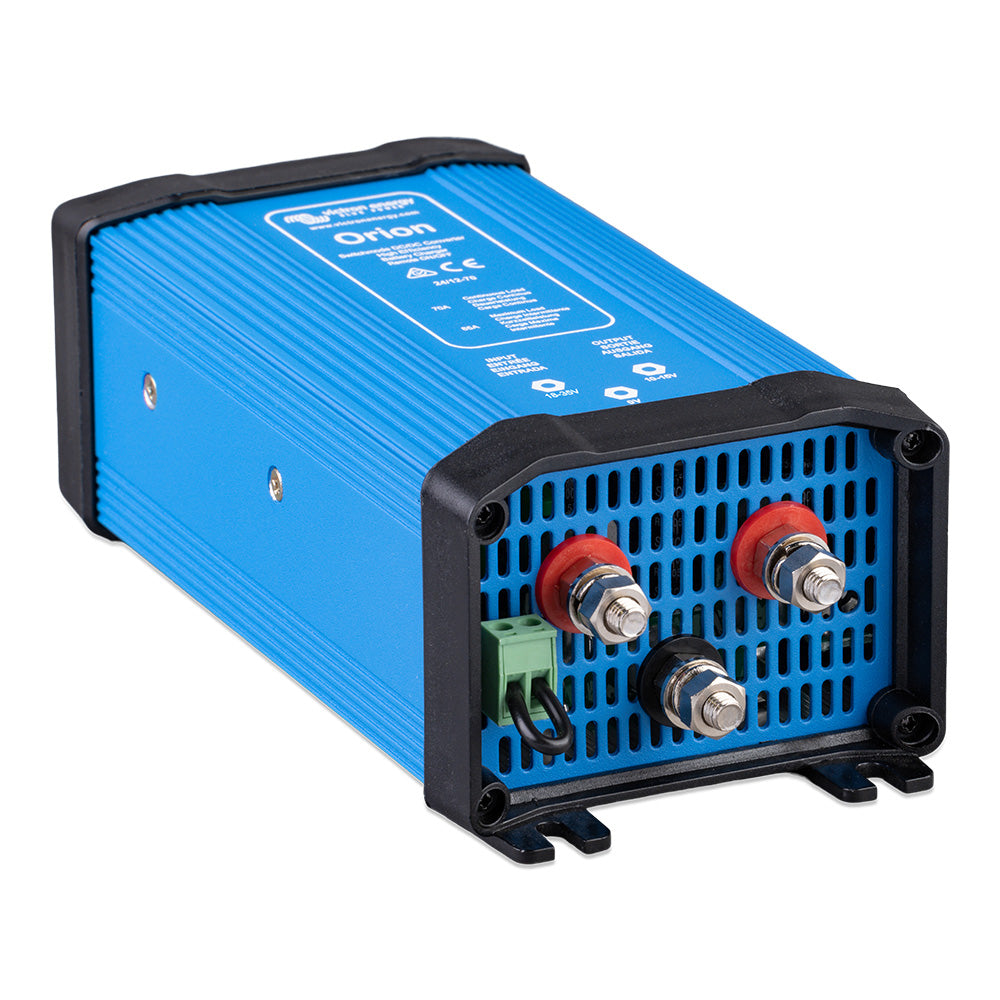

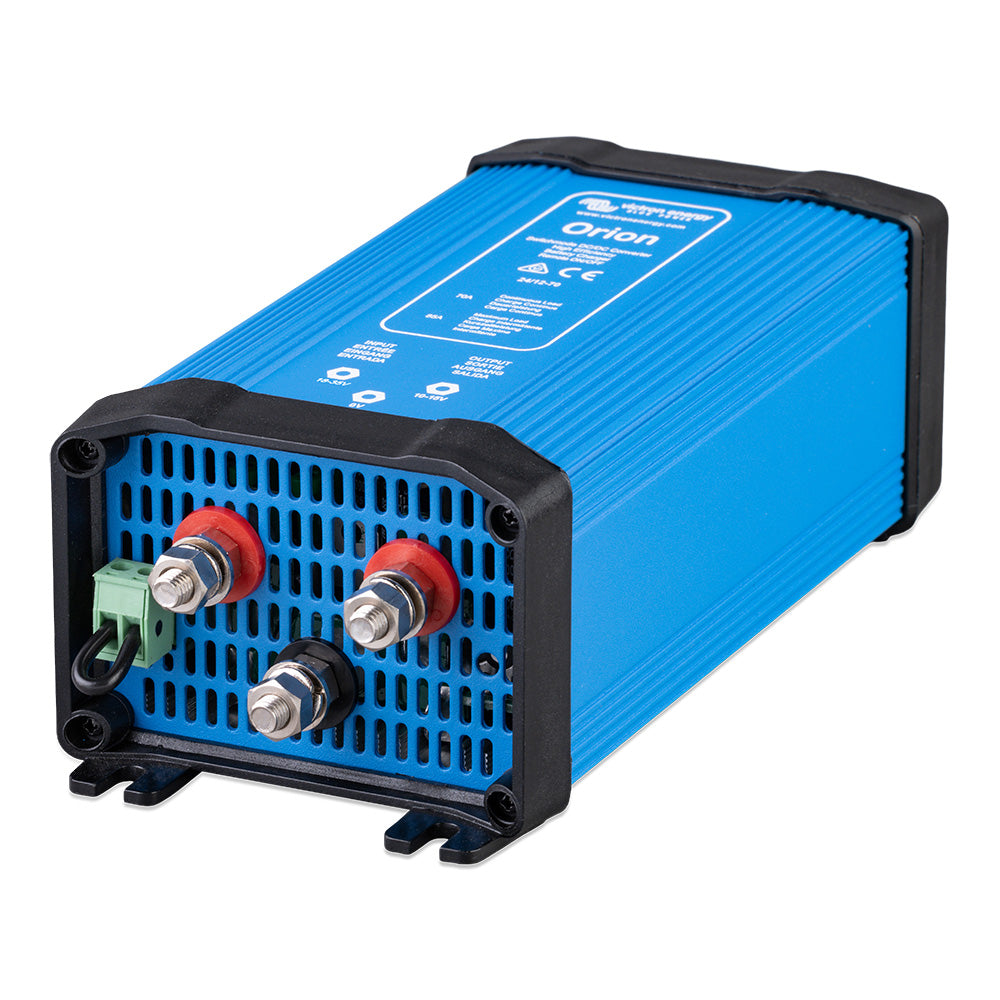

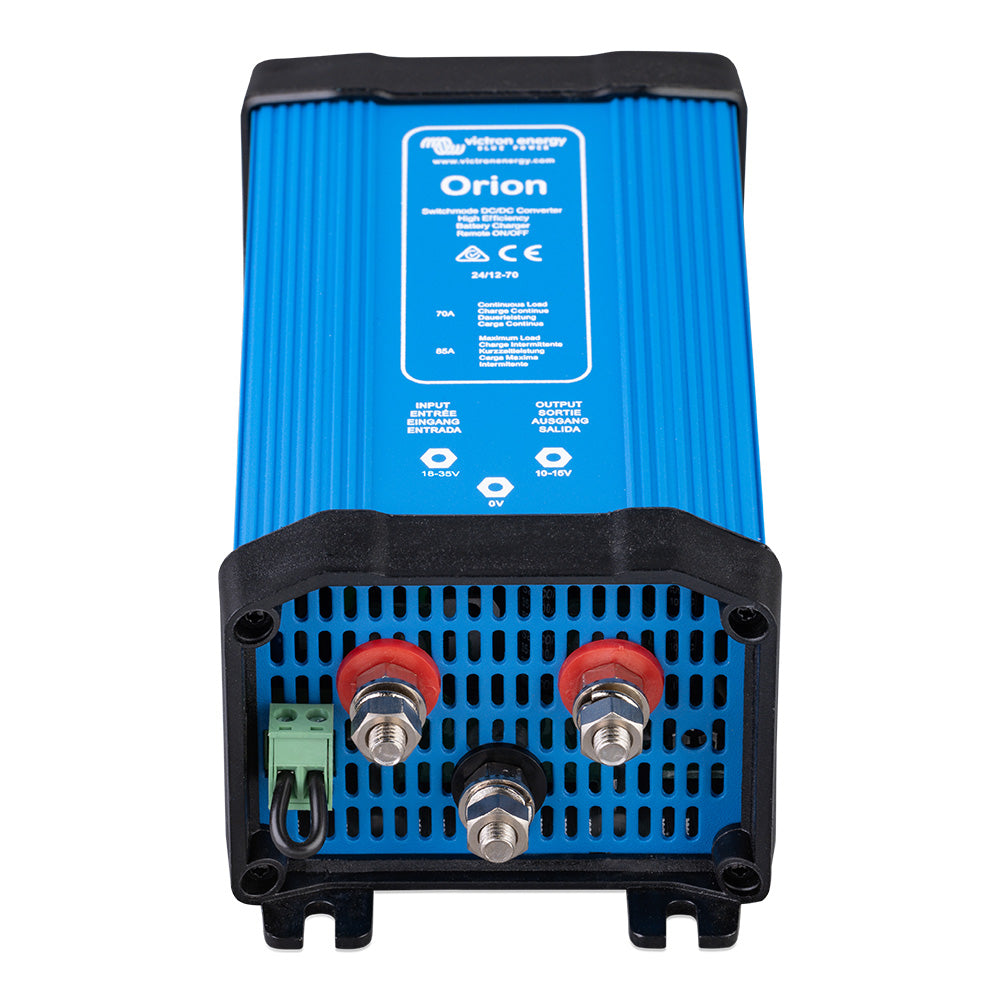

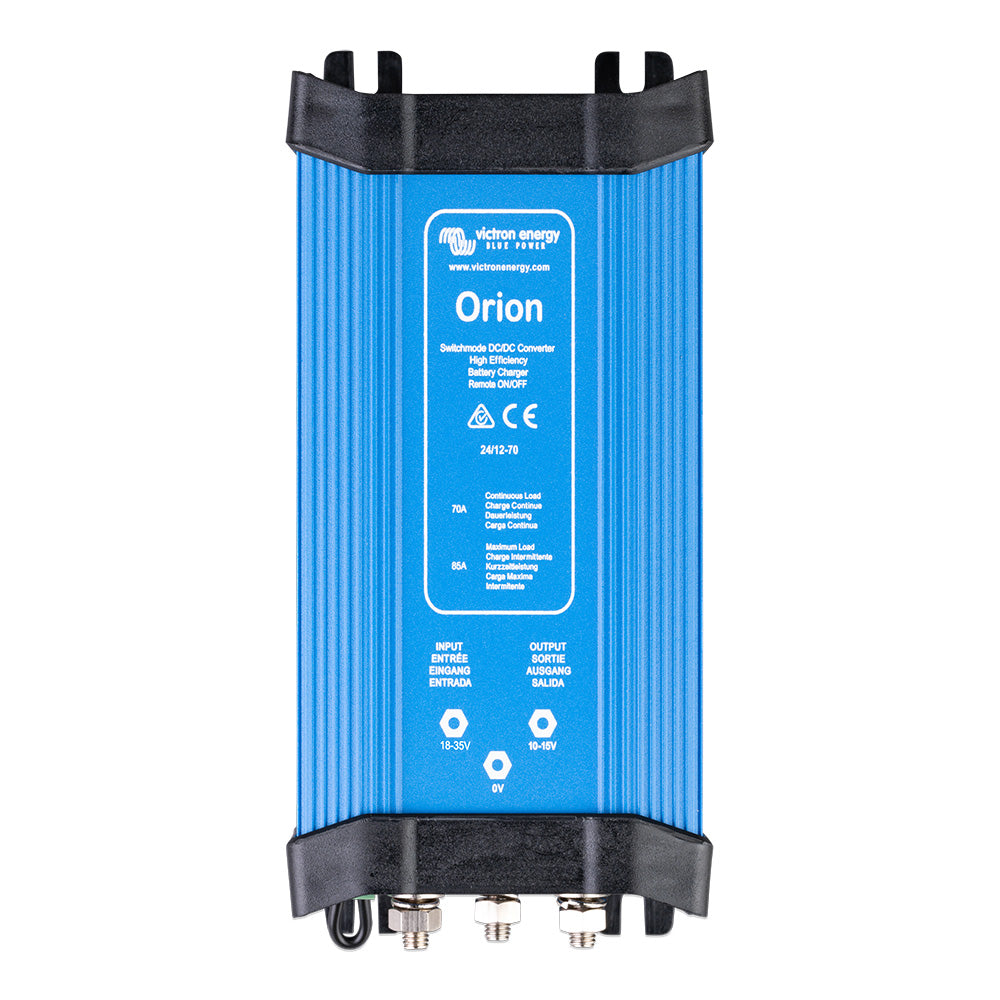

Victron Orion 24/12-70 DC-DC Converter IP20 [ORI241270020]

$118.15 $139.00

🛡️ Lifetime Parts Guarantee

We’ve got your back: For real, For life. Learn More

Quick Shipping, Free over $100

In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

No Fee Returns for 30 Days

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

Description

Orion 24/12-70 DC-DC Converter IP20

Remote on/off the connector

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger

For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current

Up to five units can be connected in parallel.

Easy to Install

Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).

Specifications:

  • Input Voltage Range: 18-35V
  • Under Voltage Shutdown: 14V
  • Under Voltage Restart: 18V
  • Output Voltage Adjustable with Potentiometer: Yes
  • Output Voltage: Adjustable 10-15V F set 13,2V
  • Efficiency: 92%
  • Suitable to buffer-charge a battery: Yes
  • Can be connected in Parallel: Yes
  • Continous output current: 70 Amp
  • Max ouput current: 85 Amp
  • Fan assisted cooling temp controlled: Yes
  • Galvanic isolation: No
  • Off load current: <20mA
  • Remote on-off: Yes
Please contact your dealer for any returns, repairs or support issues related to this product.
Quick Guide (pdf)
Brochure (pdf)
