Lumitec NevisLT Led Engine Room Light - 1000 Lumens [101296]
Description
Description
NevisLT LED Utility Light - White Only
A low-profile utility light for engine rooms and mechanical compartments. Confirm the exact generation and output; Nevis, Nevis2, NevisLT and Nevis Legacy are distinct models.
Selection and control
- Light output: White Non-Dimming.
- Housing / finish: Brushed.
- Power supply: 10-30 vDC.
Specifications
| 12v DC Amps | 1.3A |
|---|---|
| 24v DC Amps | 600mA |
| White color temperature (CCT) | 5000 K |
| CE Certified | Yes |
| Color Match Commitment (CM) | Yes |
| Color Output | White Non-Dimming |
| Color Rendering Index (CRI) | 70+ |
| Depth | 0.63in |
| Finish / Housing | Brushed |
| Height | 2.5in |
| IP Rating | IP67 |
| Lumens | 1000 |
| PLI Enabled | No |
| Rated power | 16 W |
| Third Party Dimmer Compatibility (3PD) | Yes |
| Timed Toggled Protocol (TTP) | No |
| UL Certified | No |
| Voltage | 10-30 vDC |
| Width | 5in |
Lumen ratings refer to white-light output where applicable; they do not describe the brightness of every color.
Part identification
- Manufacturer part number: 101296
- PartsDuck SKU: PD-56175
- UPC: 089300012968
Application and installation planning
Nevis fixtures distribute light broadly across engine-room and mechanical spaces. Different generations and LT versions have different output and color capabilities.

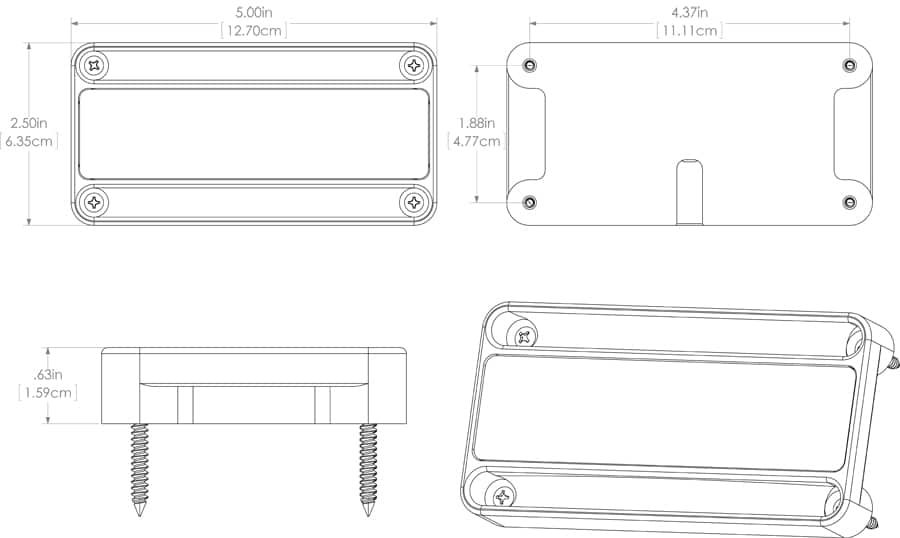

Check the mounting dimensions and wiring access against the actual installation. Size supply wiring and protection for the complete circuit, using the exact model instructions and suitable marine installation practices.
What you are ordering
This listing supplies the exact Lumitec item identified in the part identification section. Use the product identification and specifications to distinguish it from other sizes, finishes and output versions.
Common questions
Does every Nevis have two colors?
No. Choose by the exact color-output entry. Do not transfer Nevis2 two-color claims to a white-only LT model.
Can I use an external dimmer?
The manufacturer marks third-party dimmer compatibility as Yes for this model. Confirm the dimmer type, voltage and load requirements in its instructions before selecting one.
Manufacturer warranty
Lumitec states that products purchased from January 1, 2025 onward carry a five-year limited manufacturer warranty for the original purchaser. Earlier purchases retain their applicable original coverage. Keep proof of purchase and obtain a return authorization before a warranty return. Coverage terms and exclusions are available from Lumitec warranty support.
