Lumitec Kraken Underwater Dock Lighting System - Spectrum RGBW [101637]
- Ships same or next business day.
🛡️ PARTSDUCK Promise - Best price, great support & more
🛡️ PARTSDUCK Promise - Best price, great support & more
More than just a price match! Best price, fast shipping, great stock, real support. More Here
Free Shipping Over $99
Free Shipping Over $99
In stock items ship same or next business day from the closest of our 20+ warehouses with stock. Economy Shipping is free over $99.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday EST.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
No restocking fees on most items, full Return Policy
Lumitec Kraken Underwater Dock Lighting System - Spectrum RGBW [101...
Description
Description
Kraken Underwater Dock Light - Spectrum
An underwater fixture for a modular Kraken dock-light installation. A fixture is not a complete powered dock-light kit; confirm the command box, wiring and mounting components required for the installation.
Selection and control
- Light output: Spectrum RGBW - Cool White.
- Housing / finish: Bronze.
- Power supply: 10-30 vDC.
- PLI-enabled for compatible Poco digital control. A compatible Poco module is required for digital control and is not implied to be included with a light fixture.
- Supports Lumitec TTP switch control. Follow the model-specific instructions for the switching sequence.
- Lumitec does not specify this model for third-party dimmer control.
Specifications
| Color Output | Spectrum RGBW - Cool White |
|---|---|
| Finish / Housing | Bronze |
| Lumens | 6000 |
| Voltage | 10-30 vDC |
| 12v DC Amps | 5A |
| 24v DC Amps | 2.5A |
| Rated power | 60 W |
| White color temperature (CCT) | 6500 K |
| Color Rendering Index (CRI) | 70+ |

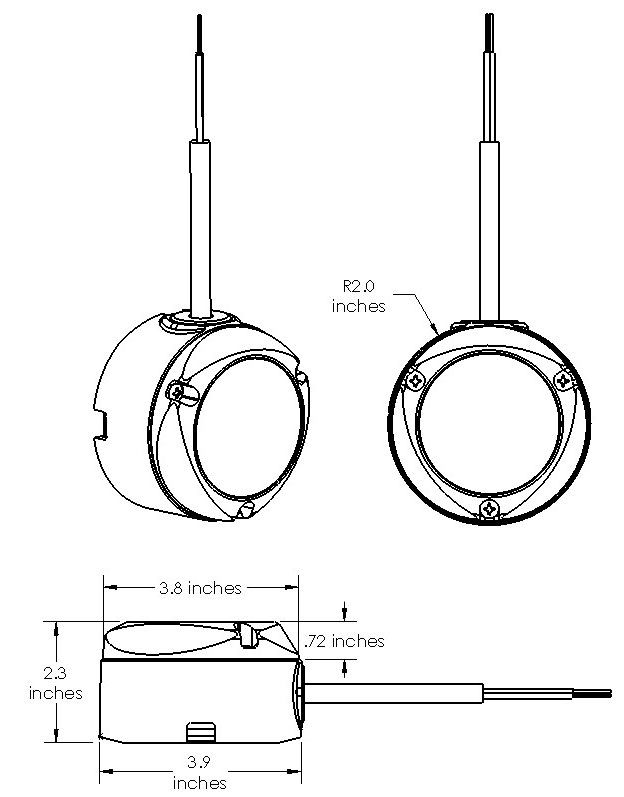

| Diameter | 3.94 in |
| Depth | 0.85 in |
| IP Rating | IP68 |
| PLI Enabled | Yes |
| Timed Toggled Protocol (TTP) | Yes |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | No |
| CE Certified | Yes |
| UL Certified | No |
Lumen ratings refer to white-light output where applicable; they do not describe the brightness of every color.
Part identification
- Manufacturer part number: 101637
- PartsDuck SKU: PD-82375
- UPC: 089300016379
Application and installation planning
Kraken fixtures provide underwater illumination for a modular dock system. Color-output versions and the required power/control equipment should be selected together.
Check the mounting dimensions and wiring access against the actual installation. Size supply wiring and protection for the complete circuit, using the exact model instructions and suitable marine installation practices.
What you are ordering
This listing supplies the exact Lumitec item identified in the part identification section. Use the product identification and specifications to distinguish it from other sizes, finishes and output versions.
Common questions
Is this a complete dock-lighting kit?
No. A Kraken fixture is one component of the modular system. Match it to the command/secondary-box arrangement and installation requirements.
Do I need Poco for basic operation?
This model supports TTP switch control as well as compatible Poco digital control. Follow the exact model’s switching instructions; a Poco module is needed for the digital-control option.
Can I add a conventional third-party dimmer?
The exact manufacturer specification marks third-party dimmer compatibility as No. Use the supported control method for this model.
Manufacturer warranty
Lumitec states that products purchased from January 1, 2025 onward carry a five-year limited manufacturer warranty for the original purchaser. Earlier purchases retain their applicable original coverage. Keep proof of purchase and obtain a return authorization before a warranty return. Coverage terms and exclusions are available from Lumitec warranty support.
