Lumitec Surface Mount Composite Navigation Light - Stern White | 101868
Please call for ETA
🛡️ PARTSDUCK Promise - Best price, great support & more
🛡️ PARTSDUCK Promise - Best price, great support & more
More than just a price match! Best price, fast shipping, great stock, real support. More Here
Free Shipping Over $99
Free Shipping Over $99
In stock items ship same or next business day from the closest of our 20+ warehouses with stock. Economy Shipping is free over $99.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday EST.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
No restocking fees on most items, full Return Policy
Description
Description

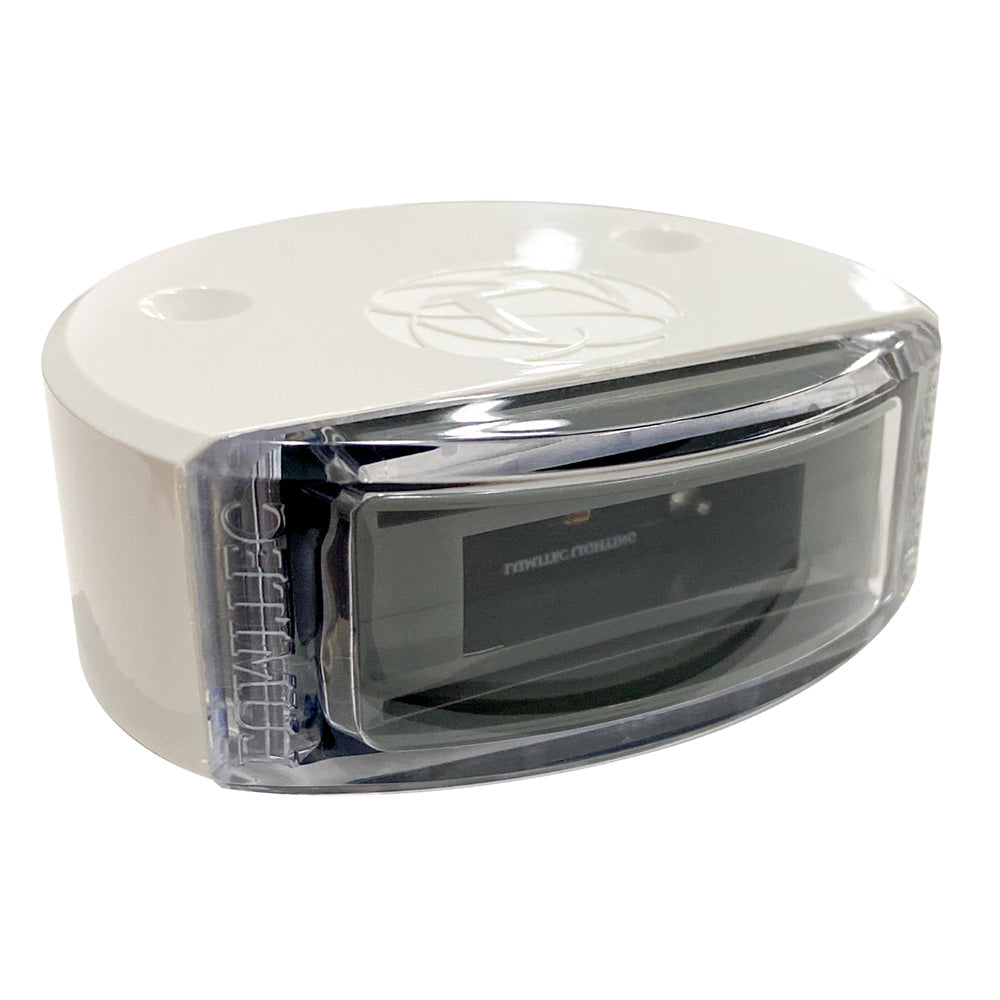

Surface Mount Composite Navigation Light - Stern White
A composite navigation light intended for a horizontal mounting surface. Select the correct port, starboard or stern output; the mounting format differs from Lumitec’s aluminum surface-mount version.
Selection and control
- Light output: Stern/White.
- Housing / finish: White.
- Power supply: 10-30 vDC.
- Lumitec does not specify this model for third-party dimmer control.
Specifications
| Color Output | Stern/White |
|---|---|
| Finish / Housing | White |
| Voltage | 10-30 vDC |
| 12v DC Amps | 50mA |
| 24v DC Amps | 25mA |
| Rated power | 0.6W |
| Height | 1 in |
| Width | 4.5 in |
| Depth | 2.1 in |
| IP Rating | IP67 |
| PLI Enabled | No |
| Timed Toggled Protocol (TTP) | No |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | No |
| CE Certified | Yes |
| UL Certified | No |
| USCG Rated | 2 NM |
Part identification
- Manufacturer part number: 101868
- PartsDuck SKU: PD-109511
- UPC: 893001002117
Application and installation planning
Navigation-light placement must preserve the required viewing sector. Horizontal composite and vertical aluminum surface-mount styles are different installations.
Check the mounting dimensions and wiring access against the actual installation. Size supply wiring and protection for the complete circuit, using the exact model instructions and suitable marine installation practices.
What you are ordering
This listing supplies the exact Lumitec item identified in the part identification section. Use the product identification and specifications to distinguish it from other sizes, finishes and output versions.
Common questions
Are horizontal and vertical versions interchangeable?
No. Select the fixture designed for the mounting surface and the required port, starboard or stern function.
Can I add a conventional third-party dimmer?
The exact manufacturer specification marks third-party dimmer compatibility as No. Use the supported control method for this model.
Manufacturer warranty
Lumitec states that products purchased from January 1, 2025 onward carry a five-year limited manufacturer warranty for the original purchaser. Earlier purchases retain their applicable original coverage. Keep proof of purchase and obtain a return authorization before a warranty return. Coverage terms and exclusions are available from Lumitec warranty support.
Documents and support
Manufacturer installation resources
Older instruction sheets may show the warranty terms in effect when they were printed. See the current manufacturer warranty policy above for purchase-date coverage.
