Lumitec Capri3 Flush Mount LED Flood Light - White/Red | 101722
Description
Description

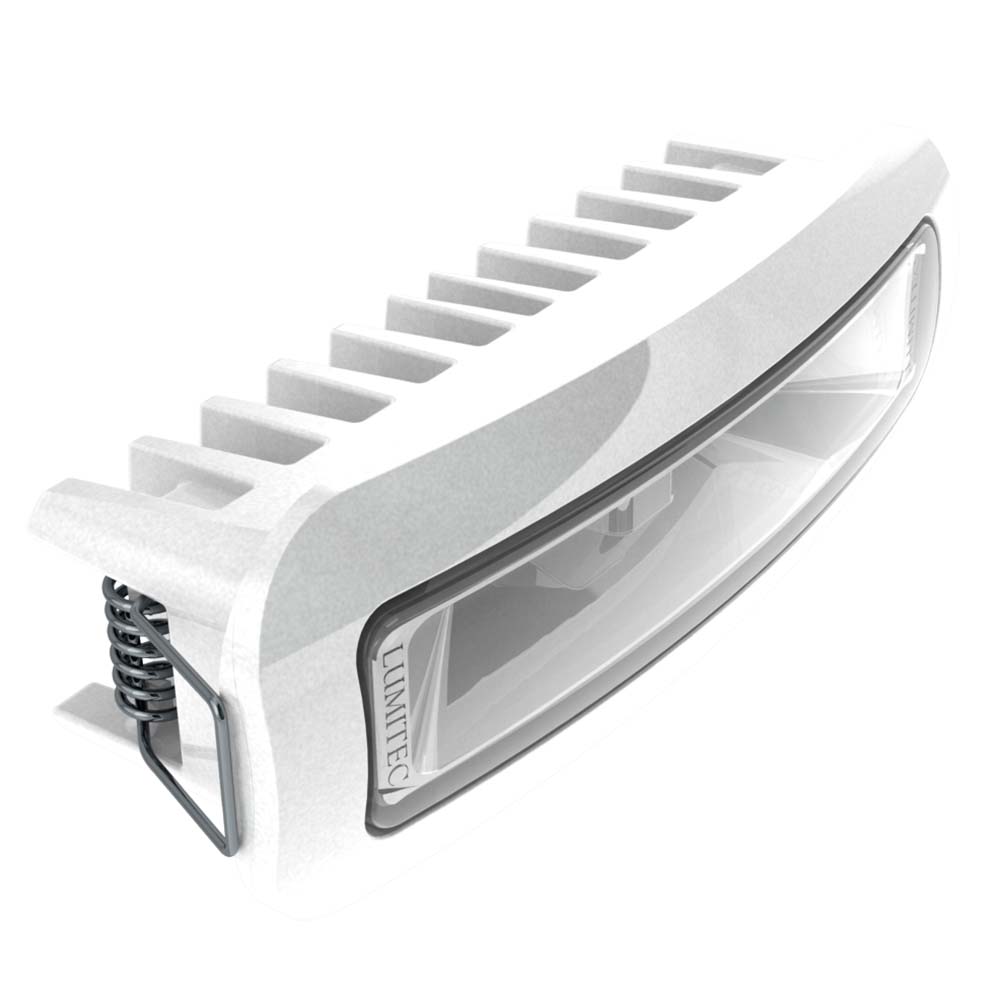

Capri3 Flush Mount LED Flood Light - White/Red
A flush-mount spreader light with butterfly-clip retention and no exposed fasteners. Match the output color, housing finish and cutout to the installation; control compatibility varies by exact model.
Selection and control
- Light output: White Dimming, Red Dimming.
- Housing / finish: White.
- Power supply: 10-30 vDC.
- PLI-enabled for compatible Poco digital control. A compatible Poco module is required for digital control and is not implied to be included with a light fixture.
- Supports Lumitec TTP switch control. Follow the model-specific instructions for the switching sequence.
- Lumitec does not specify this model for third-party dimmer control.
Specifications
| Color Output | White Dimming, Red Dimming |
|---|---|
| Finish / Housing | White |
| Lumens | 1200 |
| Voltage | 10-30 vDC |
| 12v DC Amps | 1A |
| 24v DC Amps | 0.5A |
| Rated power | 12 W |
| White color temperature (CCT) | 5000 K |
| Color Rendering Index (CRI) | 70+ |

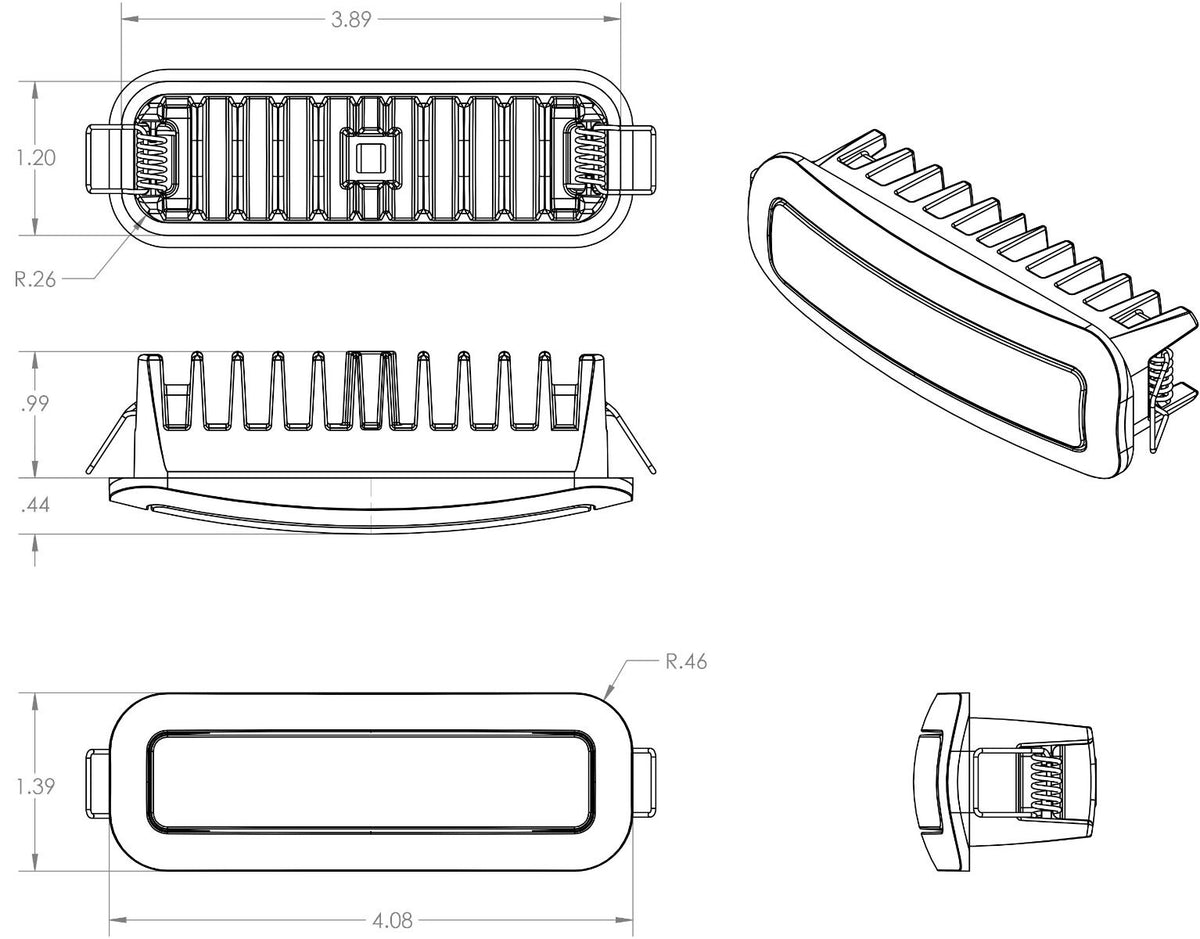

| Height | 1.39in |
| Width | 4.08in |
| Depth | 1.43in |
| IP Rating | IP67 |
| PLI Enabled | Yes |
| Timed Toggled Protocol (TTP) | Yes |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | Yes |
| CE Certified | Yes |
| UL Certified | No |
Lumen ratings refer to white-light output where applicable; they do not describe the brightness of every color.
Part identification
- Manufacturer part number: 101722
- PartsDuck SKU: PD-92789
- UPC: 089300017222
Application and installation planning
Capri3 uses butterfly clips for a flush installation with no exposed mounting fasteners. Its smaller housing and revised optics distinguish it from earlier Capri lights.
Check the mounting dimensions and wiring access against the actual installation. Size supply wiring and protection for the complete circuit, using the exact model instructions and suitable marine installation practices.
What you are ordering
This listing supplies the exact Lumitec item identified in the part identification section. Use the product identification and specifications to distinguish it from other sizes, finishes and output versions.
Common questions
Will Capri3 automatically fill my old Capri opening?
Check the cutout first. A separate Capri3 retrofit adapter is available for earlier Capri recesses; the adapter is not the light itself.
Do I need Poco for basic operation?
This model supports TTP switch control as well as compatible Poco digital control. Follow the exact model’s switching instructions; a Poco module is needed for the digital-control option.
Can I add a conventional third-party dimmer?
The exact manufacturer specification marks third-party dimmer compatibility as No. Use the supported control method for this model.
Manufacturer warranty
Lumitec states that products purchased from January 1, 2025 onward carry a five-year limited manufacturer warranty for the original purchaser. Earlier purchases retain their applicable original coverage. Keep proof of purchase and obtain a return authorization before a warranty return. Coverage terms and exclusions are available from Lumitec warranty support.
