Lumitec Caprera3 Spreader Light - White Dimming - White Housing [101714]
- Ships same or next business day.
🛡️ PARTSDUCK Promise - Best price, great support & more
🛡️ PARTSDUCK Promise - Best price, great support & more
More than just a price match! Best price, fast shipping, great stock, real support. More Here
Free Shipping Over $99
Free Shipping Over $99
In stock items ship same or next business day from the closest of our 20+ warehouses with stock. Economy Shipping is free over $99.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday EST.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
No restocking fees on most items, full Return Policy
Lumitec Caprera3 Spreader Light - White Dimming - White Housing [10...
Description
Description
Caprera3 Bracket Mount LED Flood Light - White Dimming
A bracket-mount spreader light for deck and cockpit illumination. The powder-coated aluminum housing and adjustable mounting format suit installations that need an aimed beam. Choose the exact output and control version shown in the specifications.
Selection and control
- Light output: White, Dimming.
- Housing / finish: White.
- Power supply: 10-30 vDC.
- Supports Lumitec TTP switch control. Follow the model-specific instructions for the switching sequence.
Specifications
| Color Output | White, Dimming |
|---|---|
| Finish / Housing | White |
| Lumens | 1200 |
| Voltage | 10-30 vDC |
| 12v DC Amps | 1A |
| 24v DC Amps | 0.5A |
| Rated power | 12 W |
| White color temperature (CCT) | 5000 K |
| Color Rendering Index (CRI) | 70+ |

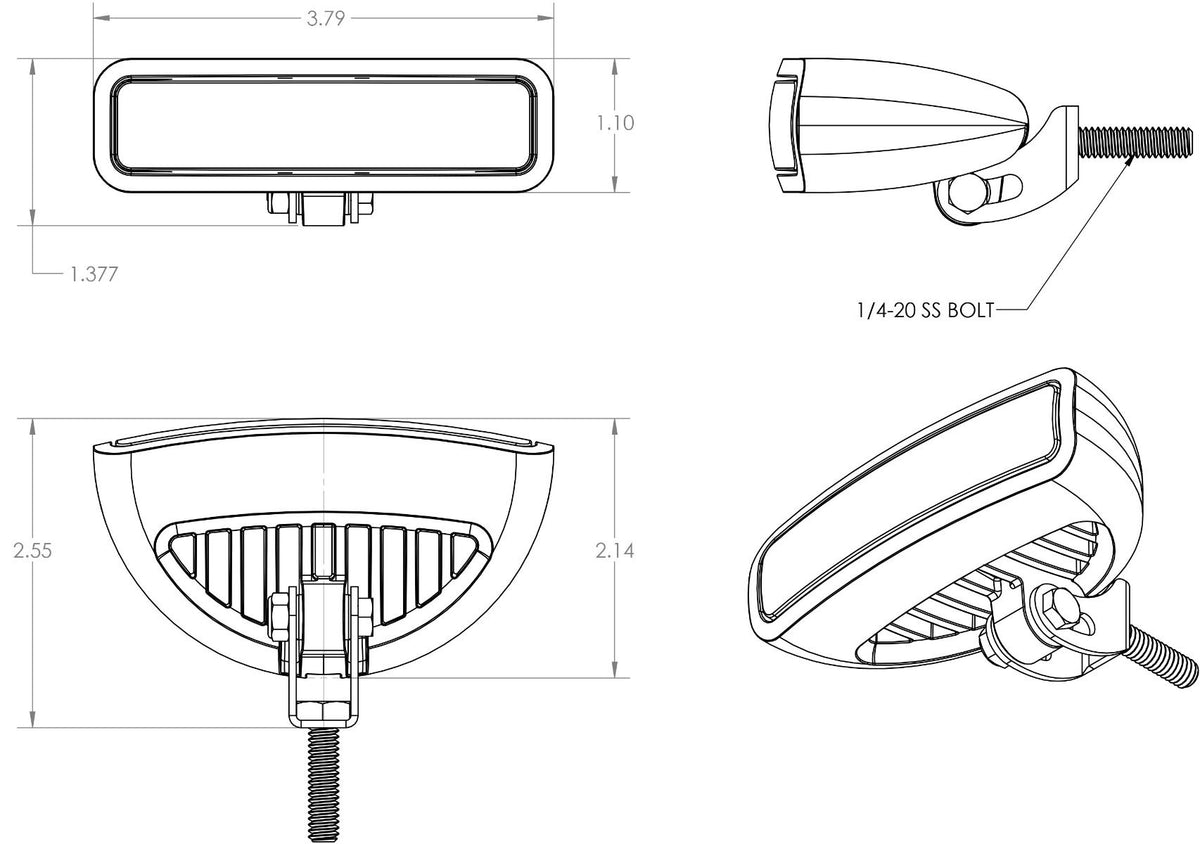

| Height | 1.10in |
| Width | 3.79in |
| Depth | 2.49in |
| IP Rating | IP67 |
| PLI Enabled | No |
| Timed Toggled Protocol (TTP) | Yes |
| Third Party Dimmer Compatibility (3PD) | Yes |
| Color Match Commitment (CM) | Yes |
| CE Certified | Yes |
| UL Certified | No |
Lumen ratings refer to white-light output where applicable; they do not describe the brightness of every color.
Part identification
- Manufacturer part number: 101714
- PartsDuck SKU: PD-92781
- UPC: 089300017147
Application and installation planning
Caprera3 uses an adjustable bracket to aim illumination across decks and cockpits. Its powder-coated die-cast aluminum housing is available in different finishes and output versions.
Check the mounting dimensions and wiring access against the actual installation. Size supply wiring and protection for the complete circuit, using the exact model instructions and suitable marine installation practices.
What you are ordering
This listing supplies the exact Lumitec item identified in the part identification section. Use the product identification and specifications to distinguish it from other sizes, finishes and output versions.
Common questions
Does every Caprera3 support Poco?
Control compatibility varies by exact model. Use the PLI and TTP entries for the selected part number rather than assuming every fixture in the family behaves alike.
Can I use an external dimmer?
The manufacturer marks third-party dimmer compatibility as Yes for this model. Confirm the dimmer type, voltage and load requirements in its instructions before selecting one.
Manufacturer warranty
Lumitec states that products purchased from January 1, 2025 onward carry a five-year limited manufacturer warranty for the original purchaser. Earlier purchases retain their applicable original coverage. Keep proof of purchase and obtain a return authorization before a warranty return. Coverage terms and exclusions are available from Lumitec warranty support.
