Lumitec Caprera3 Spreader Light - White/Blue Dimming - Black Housing [101716]

Caprera3 Bracket Mount LED Flood Light - White Dimming, Blue Dimming

A bracket-mount spreader light for deck and cockpit illumination. The powder-coated aluminum housing and adjustable mounting format suit installations that need an aimed beam. Choose the exact output and control version shown in the specifications.

Selection and control

• Light output: White Dimming, Blue Dimming.
• Housing / finish: Black.
• Power supply: 10-30 vDC.
• PLI-enabled for compatible Poco digital control. A compatible Poco module is required for digital control and is not implied to be included with a light fixture.
• Supports Lumitec TTP switch control. Follow the model-specific instructions for the switching sequence.

Specifications

Lumen ratings refer to white-light output where applicable; they do not describe the brightness of every color.

Part identification

• Manufacturer part number: 101716
• PartsDuck SKU: PD-92783
• UPC: 089300017161

Application and installation planning

Caprera3 uses an adjustable bracket to aim illumination across decks and cockpits. Its powder-coated die-cast aluminum housing is available in different finishes and output versions.

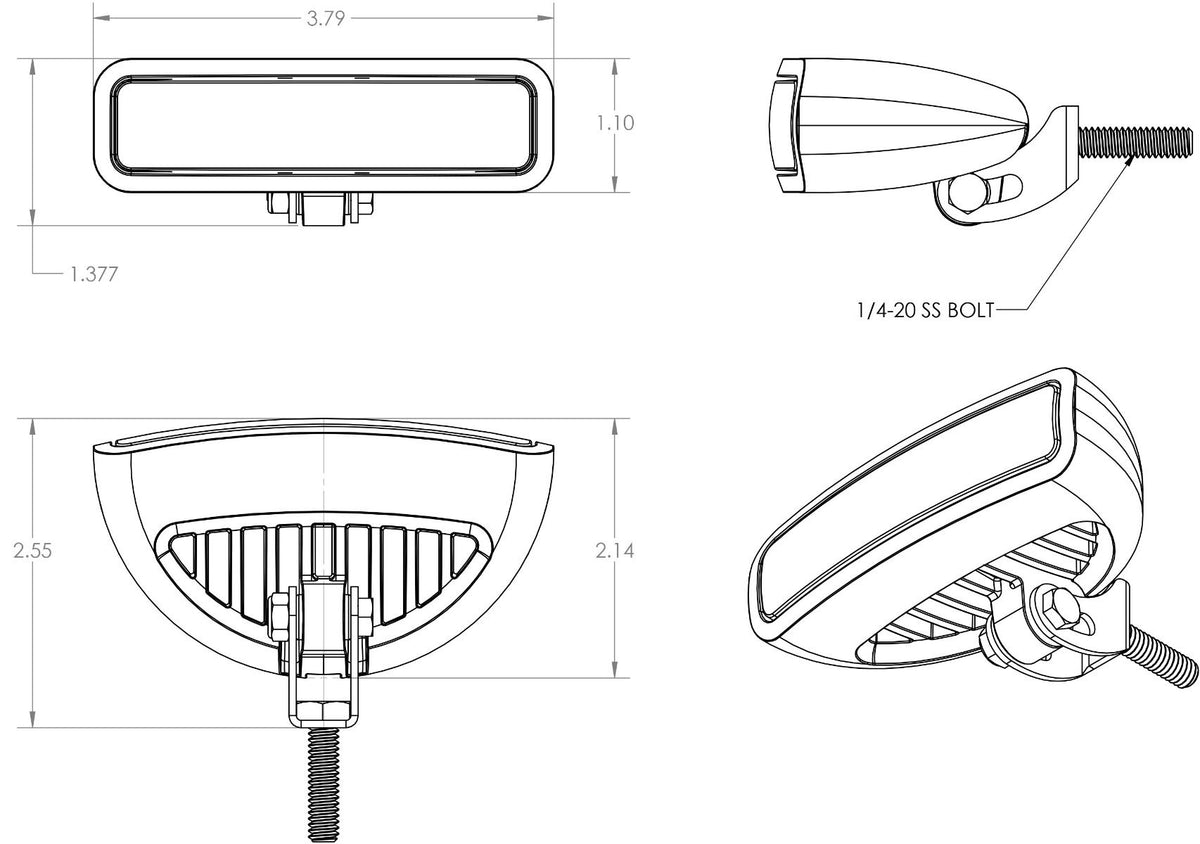

Check the mounting dimensions and wiring access against the actual installation. Size supply wiring and protection for the complete circuit, using the exact model instructions and suitable marine installation practices.

What you are ordering

This listing supplies the exact Lumitec item identified in the part identification section. Use the product identification and specifications to distinguish it from other sizes, finishes and output versions.

Common questions

Does every Caprera3 support Poco?
Control compatibility varies by exact model. Use the PLI and TTP entries for the selected part number rather than assuming every fixture in the family behaves alike.

Do I need Poco for basic operation?
This model supports TTP switch control as well as compatible Poco digital control. Follow the exact model’s switching instructions; a Poco module is needed for the digital-control option.

Can I use an external dimmer?
The manufacturer marks third-party dimmer compatibility as Yes for this model. Confirm the dimmer type, voltage and load requirements in its instructions before selecting one.

Manufacturer warranty

Lumitec states that products purchased from January 1, 2025 onward carry a five-year limited manufacturer warranty for the original purchaser. Earlier purchases retain their applicable original coverage. Keep proof of purchase and obtain a return authorization before a warranty return. Coverage terms and exclusions are available from Lumitec warranty support.

Documents and support

• Lumitec product specifications
• Lumitec 2026 product guide (PDF)
