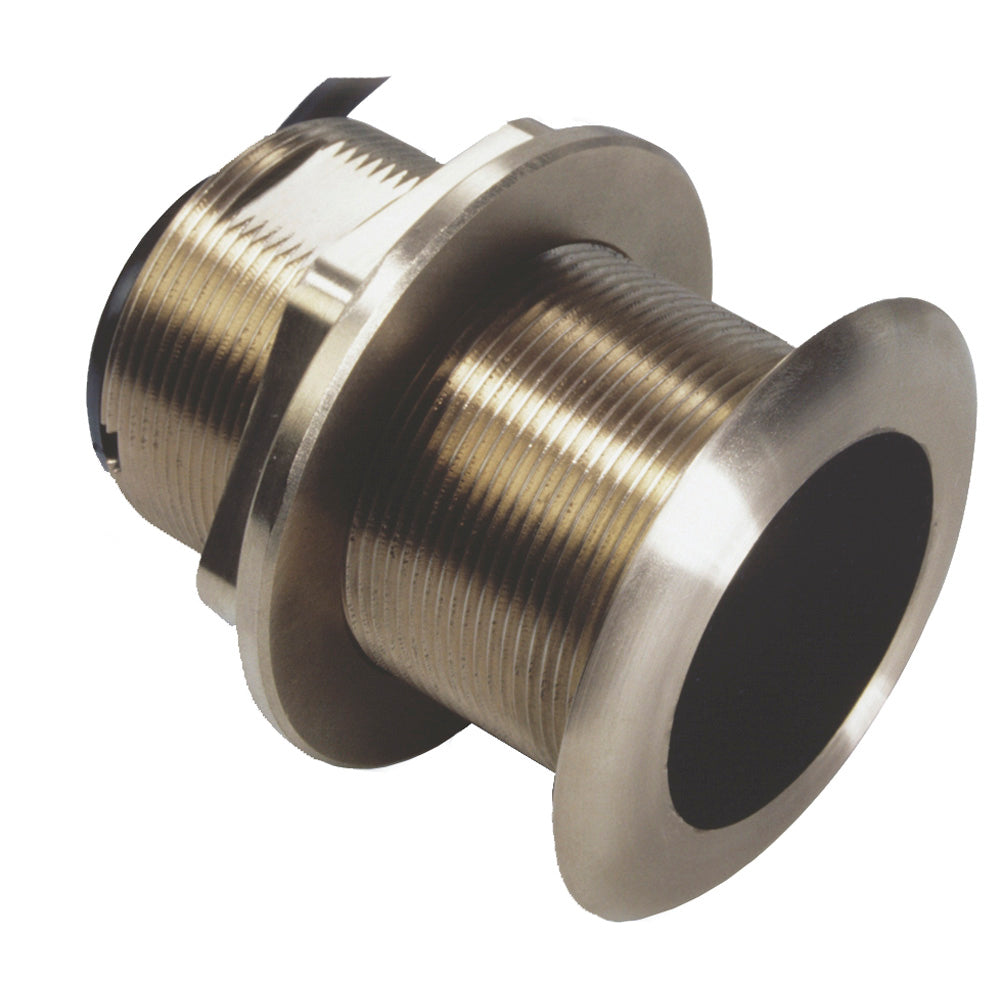

![Lowrance B60-12, 12 Degree Tilted Element Transducer [B60-12-BL]](http://partsduck.com/cdn/shop/files/32880XL.jpg?v=1750256343&width=1500)
Loading...
Lowrance | SKU:
PD-32880
Sold Out - Call for help finding a replacement.
Lowrance B60-12, 12 Degree Tilted Element Transducer [B60-12-BL]
Regular price
$324.99
Unit price
/
Unavailable
🛡️ Lifetime Parts Guarantee
🛡️ Lifetime Parts Guarantee
We’ve got your back: For real, For life. Learn More
Quick Shipping, Free over $100
Quick Shipping, Free over $100
In stock items ship same or next business day. $3.99 flat rate, or free over $100.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
Description
Description
B60 Tilted Element 12°
12° tilted version is designed for 8° - 15° deadrise angles
The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 7
- Mounting Style: Thru-Hull
- Imagining: Standard
- Chirp: No
- Cable Length (Feet): 30'
- Box Dimensions: 4"H x 8"W x 10"L WT: 4.85 lbs
Owner's Manual (pdf)
Brochure (pdf)
