Lopolight | SKU:
PD-108096
Sold Out - Call for help finding a replacement.

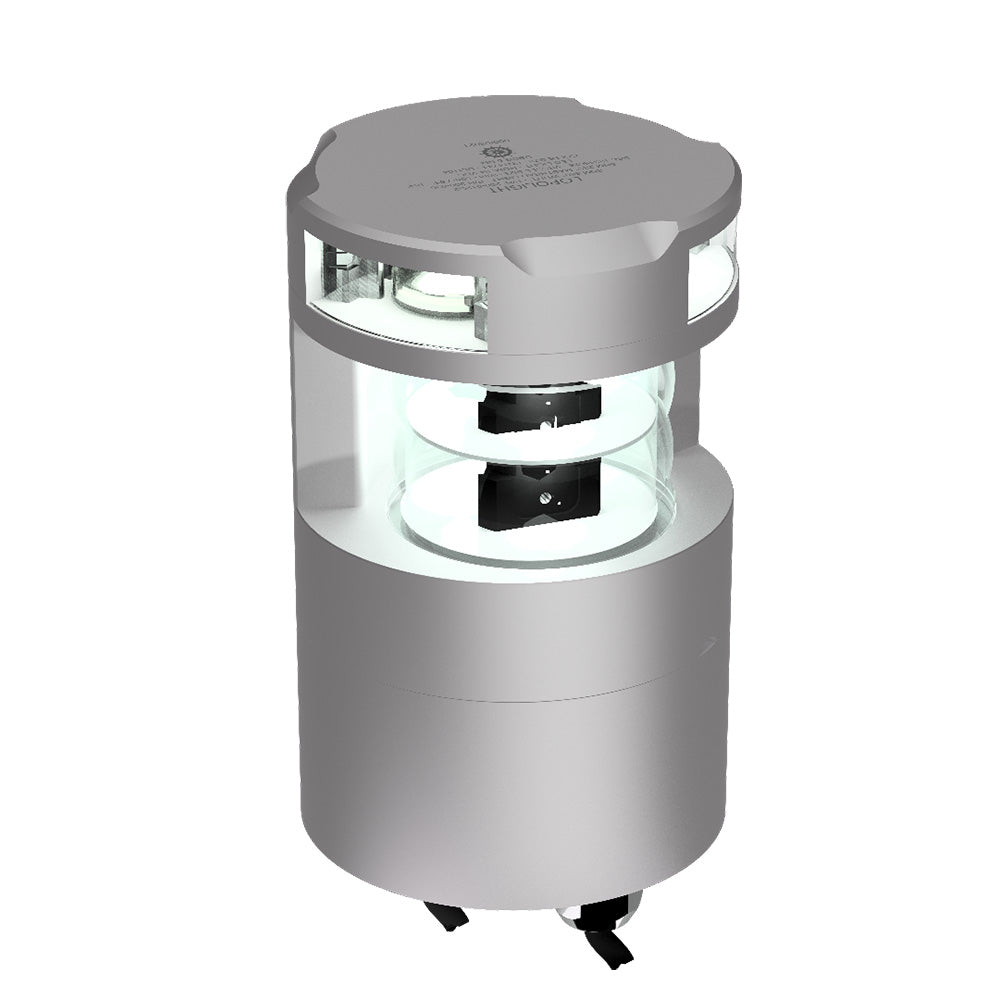

Lopolight 6nm Double Masthead + 3nm 360 Degree Light [300-138+300-112G2]
Regular price
$4,651.21
Unit price
Unavailable
🛡️ Lifetime Parts Guarantee
🛡️ Lifetime Parts Guarantee
We’ve got your back: For real, For life. Learn More
Free Shipping On All Orders!
Free Shipping On All Orders!
(Normally)In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
Description
Description
6nm Double Masthead + 3nm 360 Degree Light
6nm dbl Masthead + 3nm 360 degrees, white, silver anodized. Horizontal mounted on a cable-down aluminum base (P/N 400-035).
Specifications:
- Light Color: White
- Dimensions metric: Ø92,5mm x 147mm
- Certification: This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support
- Intensity: >94cd
- Dimensions imperial: Ø3.6" x 5.7"
- Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Visibility: 3nm
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438013537
- IP rating: IP68
- Power draw (W): 13
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 0
- Current consumption (mA @ 24VDC): 580
- Vessel size: Over 50M
- Min. feed wire gauge: 0.5mm2 AWG22
- Weight (Kg): 1.45 kg
- Weight (Oz): 51.14 oz
