Description

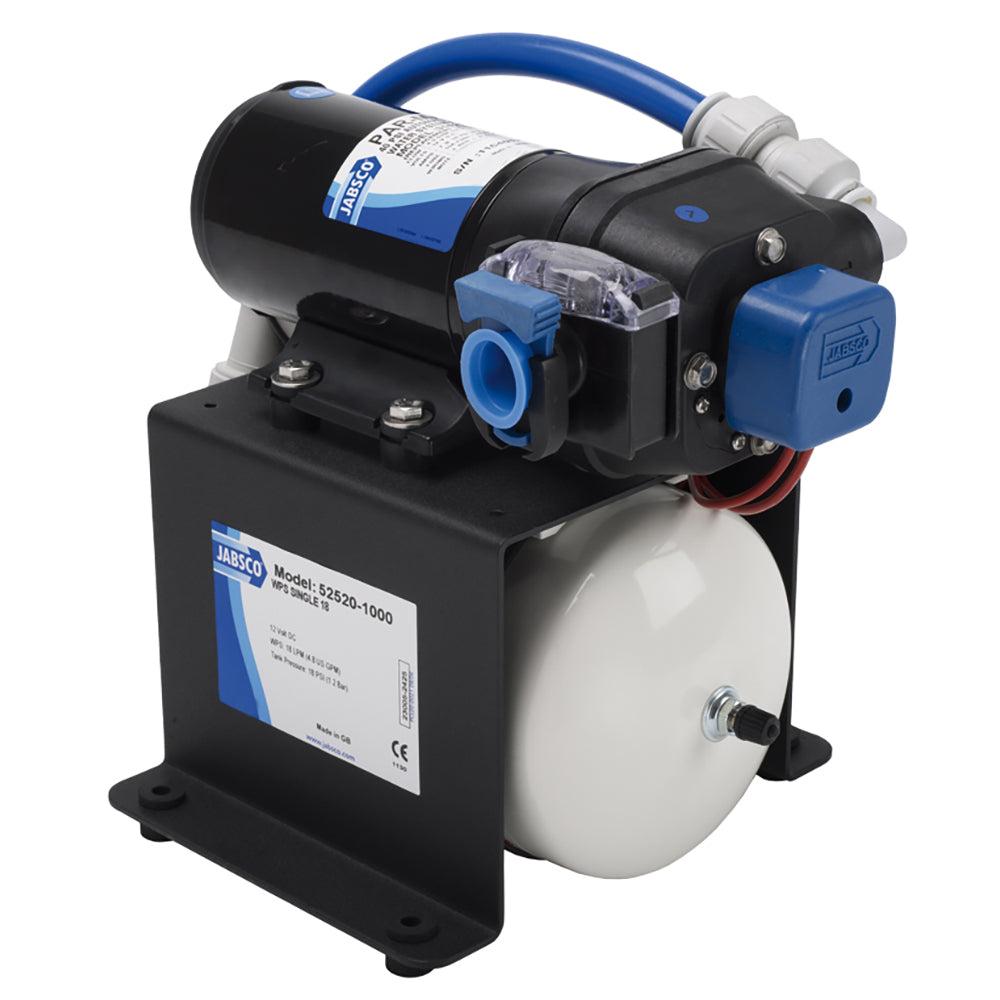

Single Stack Water System - 4.8 GPM - 40PSI - 12V

The Single Stack Water System is a fully assembled water pressure set which makes installation of water pressure systems simple. The system consists of a PAR-Max 4.0 Pump, strainer and pre-pressurized accumulator tank.

Serves four or more outlets.

Features:

  • Self-priming up to 10' (3M)
  • Run-dry ability
  • Smooth, even flow
  • Thermal overload protection
  • Complies with ISO 8846 MARINE (Ignition Protection)
  • Three-year warranty

Specifications:

  • Flow: 4.8 GPM (18LPM)
  • Shut-Off Pressure: 40PSI (2.8bar)
  • Fitting: Connections for 3/4" (19mm) hose tail
  • Size: 12.2" Long x 9.4" Wide x 9.8" High
  • Weight: 12lbs (5.4kg)

Specifications:

  • Gallons Per Minute: 4.8 GPM
  • Max PSI: 40
  • Volts: 12v
  • Box Dimensions: 8"H x 11"W x 15"L WT: 12 lbs
  • UPC: 671880615914
