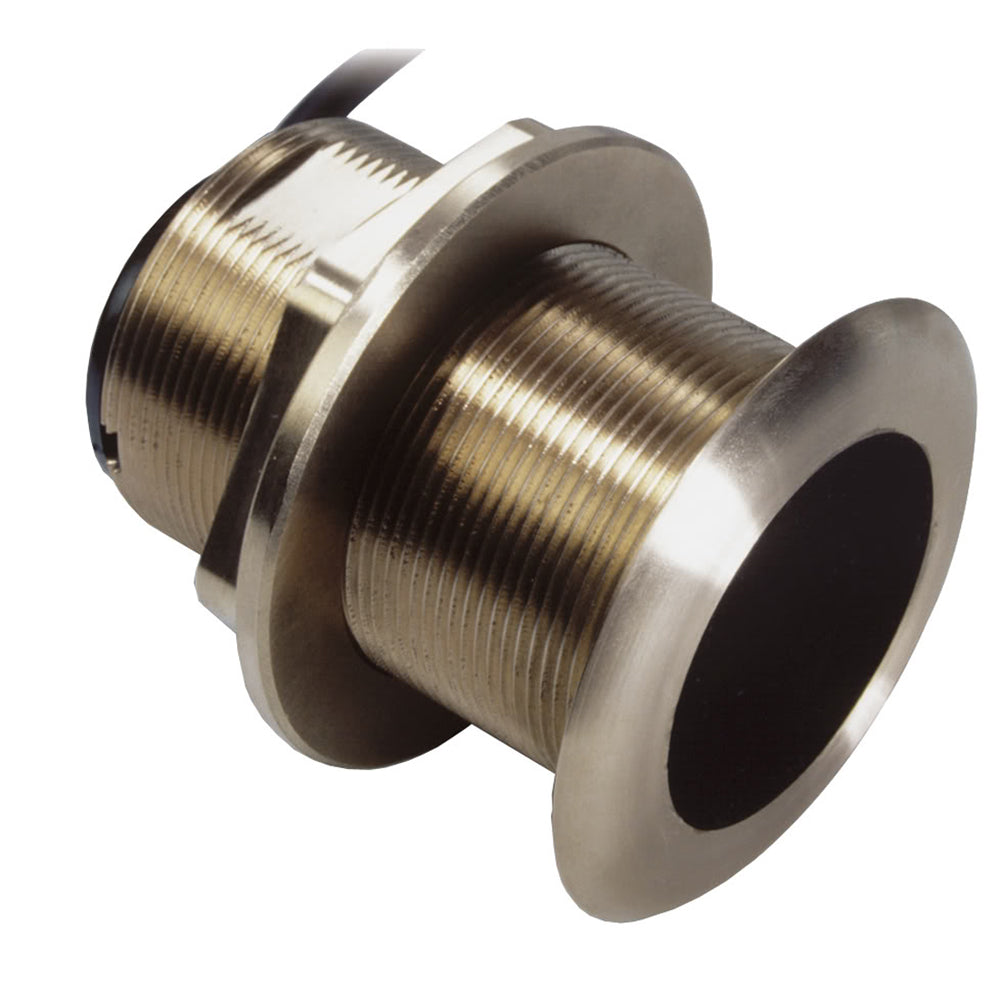

Furuno B60-20, 20 Degree Tilted Element Transducer [525T-LTD/20]
🛡️ PARTSDUCK Promise - Best price, great support & more
🛡️ PARTSDUCK Promise - Best price, great support & more
More than just a price match! Best price, fast shipping, great stock, real support. More Here
Free Shipping Over $99
Free Shipping Over $99
In stock items ship same or next business day from the closest of our 20+ warehouses with stock. Economy Shipping is free over $99.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday EST.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
No restocking fees on most items, full Return Policy
Description
Description
B60 Tilted Element 20° Furuno 10 pin connector
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Mounting Style: Thru-Hull
- Temperature: Yes
- Speed Included: No
- Box Dimensions: 6"H x 8"W x 9"L WT: 4.6 lbs
- UPC: 6116793079346
Owner's Manual (pdf)
Brochure (pdf)
