Bluewater  |  SKU: PD-101926

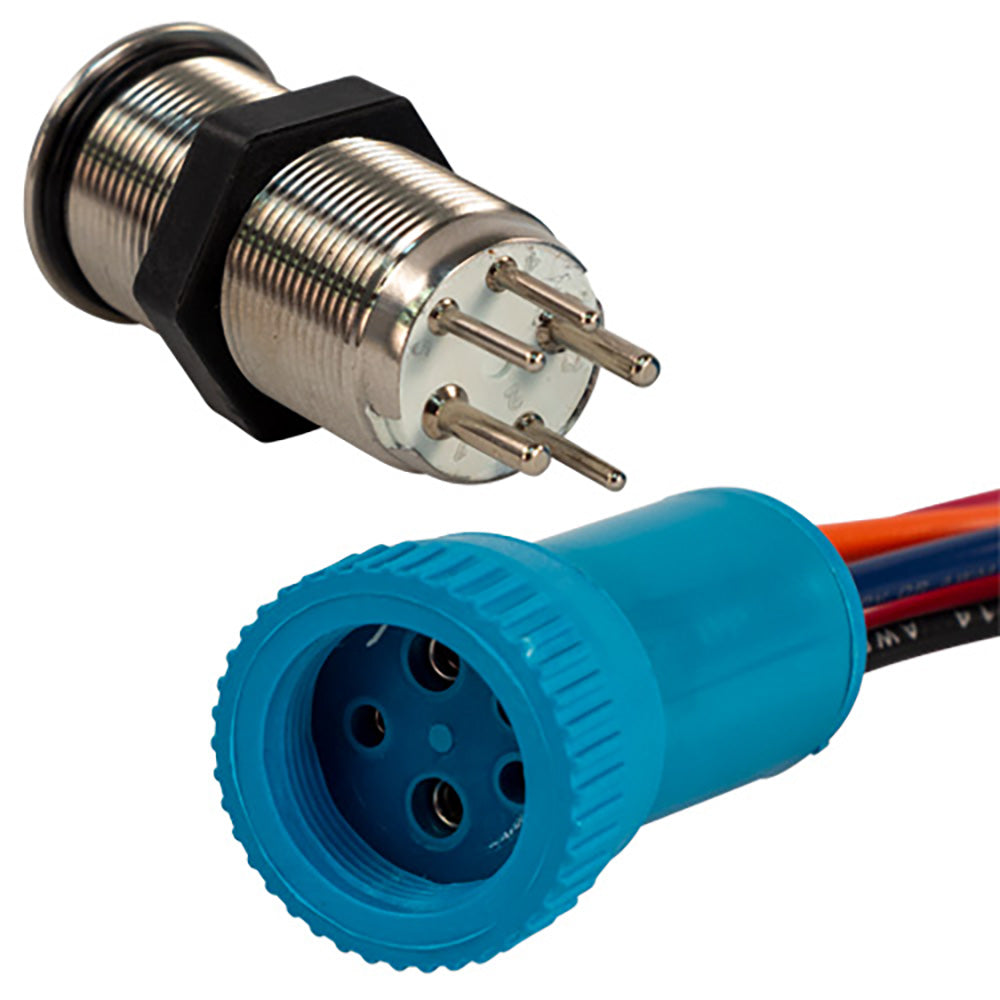

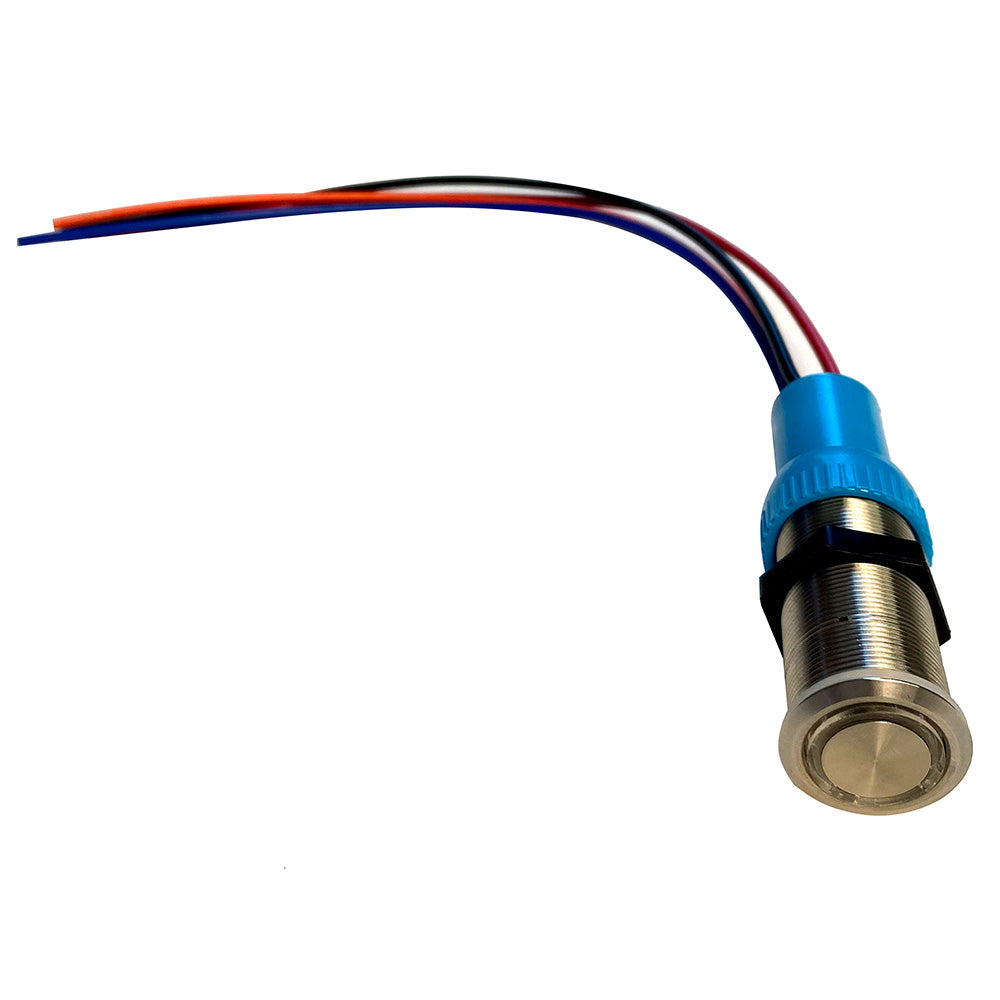

Bluewater 19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 1' Lead [9057-2123-1]

$63.00

🛡️ Lifetime Parts Guarantee

We’ve got your back: For real, For life. Learn More

Quick Shipping, Free over $100

In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

No Fee Returns for 30 Days

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

Description

19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 1' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an “Off/(On)/(On)" double momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

  • 1 ft. lead

Specifications:

  • Function: Off-(On)-(On) (double momentary contact)
  • Off/On: Blue/green
  • 2nd On: Red
  • Rear Mark Page: Green dot with a line
  • Switch Rating: 15A/12 – 24VDC
  • Material: Stainless steel
  • Mechanical Life: 50,000 cycles
  • Electrical Life: 10,000 cycles

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Specifications:

  • Action: OFF/(ON)/(ON)
  • Color: Blue/Green/Red
  • Box Dimensions: 1"H x 1"W x 1"L WT: 0.21 lbs

Quick Guide (pdf)
