Blue Sea Systems  |  SKU: PD-40607  |  Barcode: 632085081027

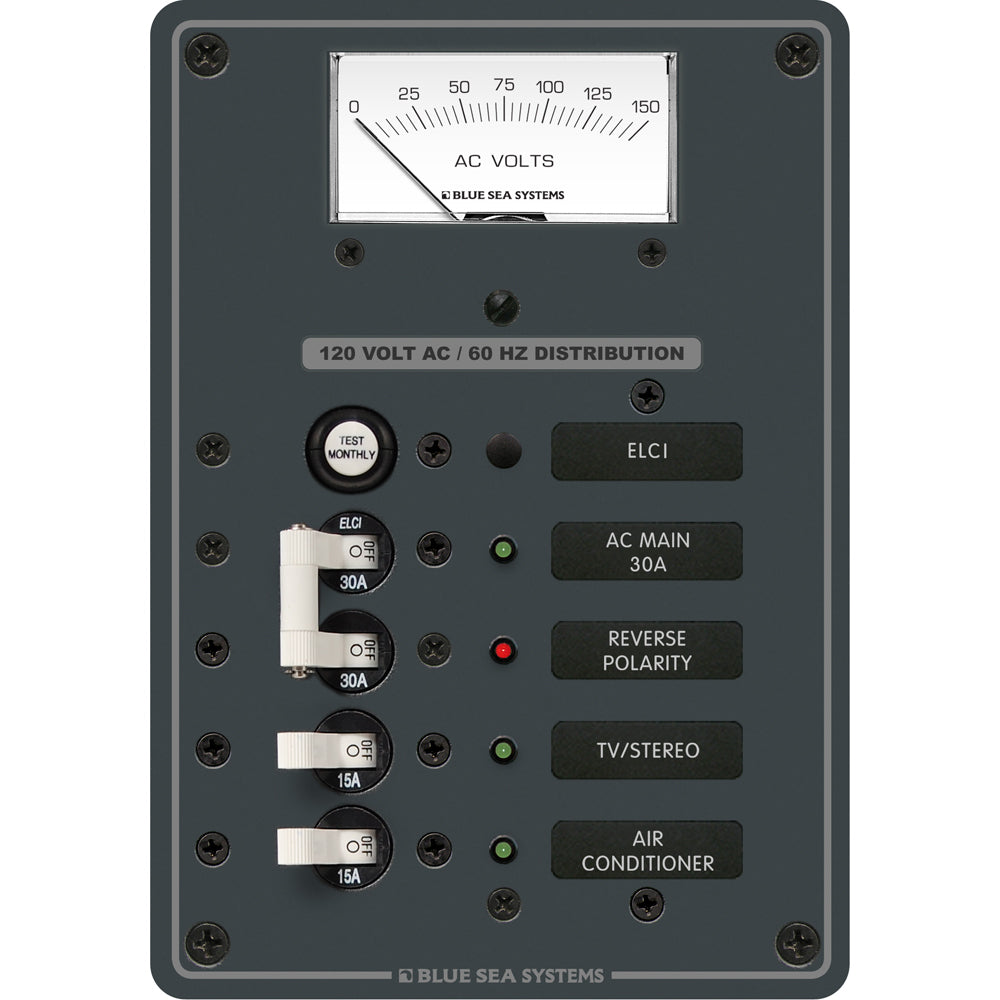

Blue Sea 8102 ELCI GFCI Panel AC 2 Position [8102]

$561.56 $955.99

🛡️ Lifetime Parts Guarantee

We’ve got your back: For real, For life. Learn More

Quick Shipping, Free over $100

In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

No Fee Returns for 30 Days

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

Description

ELCI Main 30A Double Pole + 2 Positions with Voltmeter

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Red " Reverse Polarity" LED
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications
Positions 2
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25" (133.35mm)
Width 7.50" (190.5mm)
Depth 3.50" (88.9mm)
Weight 2.25lb (1.02kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Max Breaker Quantity: 2
  • Voltage: 120v
  • Box Dimensions: 5"H x 9"W x 11"L WT: 2.3 lbs
  • UPC: 632085081027
