Blue Sea Systems  |  SKU: PD-47526  |  Barcode: 632085076115

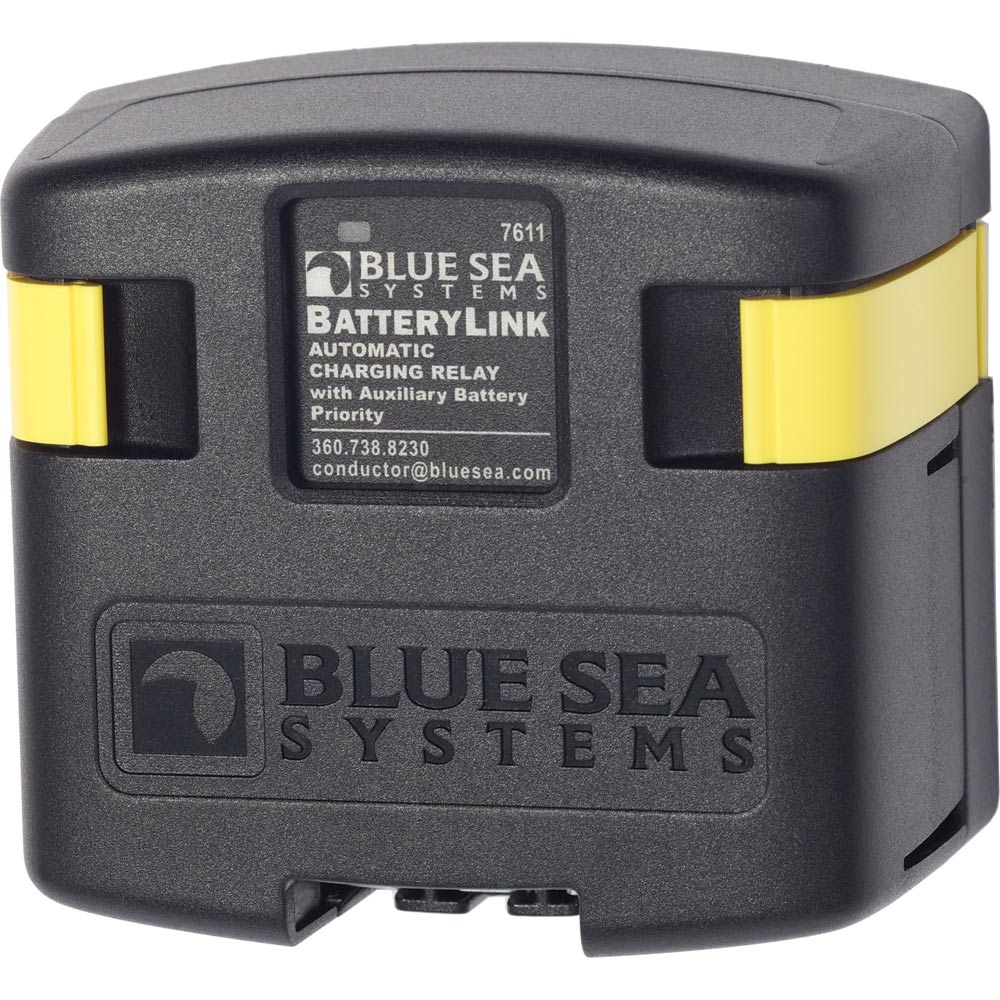

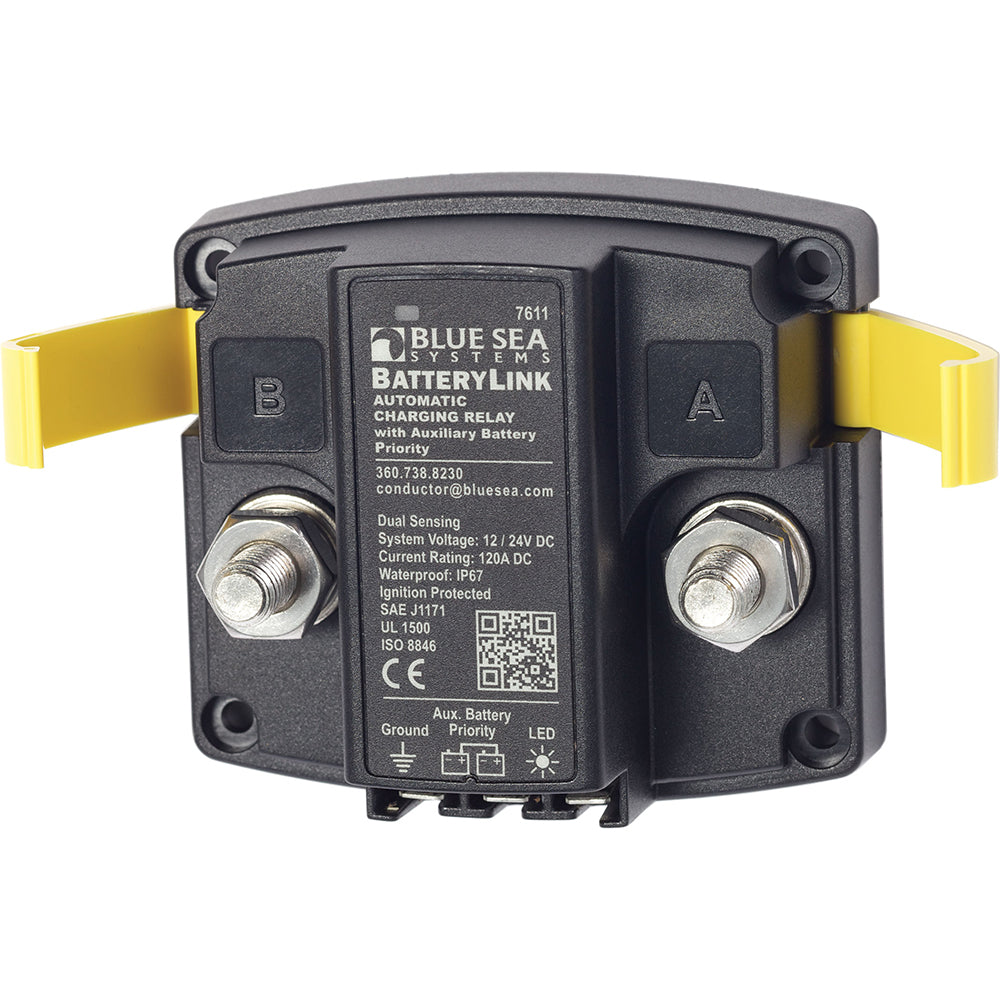

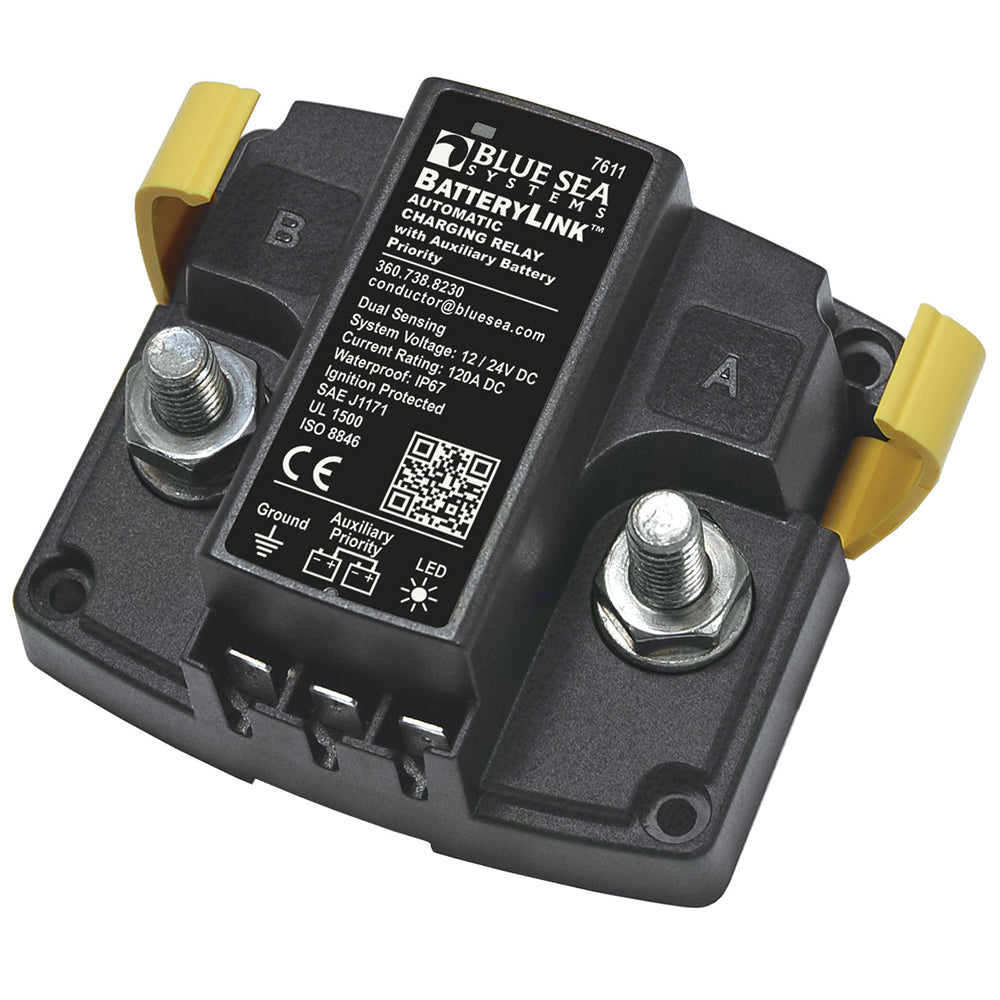

Blue Sea 7611 DC BatteryLink Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging [7611]

$93.12 $163.99

🛡️ Lifetime Parts Guarantee

We’ve got your back: For real, For life. Learn More

Quick Shipping, Free over $100

In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

No Fee Returns for 30 Days

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

Description

7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging

Features:

  • 120 Amp continuous rating
  • 12/24V DC auto ranging voltage input
  • Senses charging on two battery banks
  • Side and bottom knockouts for cable connections
  • Clip-on cover insulates terminal connections
  • 7/8" (22 mm) stud length to accept multiple cable terminals
  • Integrated LED indicates ACR status
  • 1/4" x .032" male quick connect terminals for ground and optional features


Specifications:
  • Intermittent Rating: 5 min.: 210 Amps
  • Continuous Rating: 120 Amps
  • Nominal Voltage: 12/24 Volts DC

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Continuous Amperage: 120a
  • Box Dimensions: 4"H x 7"W x 9"L WT: 1.25 lbs
  • UPC: 632085076115

Owner's Manual (pdf)
