Blue Sea Systems  |  SKU: PD-54775  |  Barcode: 632085050238

Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block [5023]

$25.24 $42.99

🛡️ Lifetime Parts Guarantee

We’ve got your back: For real, For life. Learn More

Quick Shipping, Free over $100

In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

No Fee Returns for 30 Days

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

Description

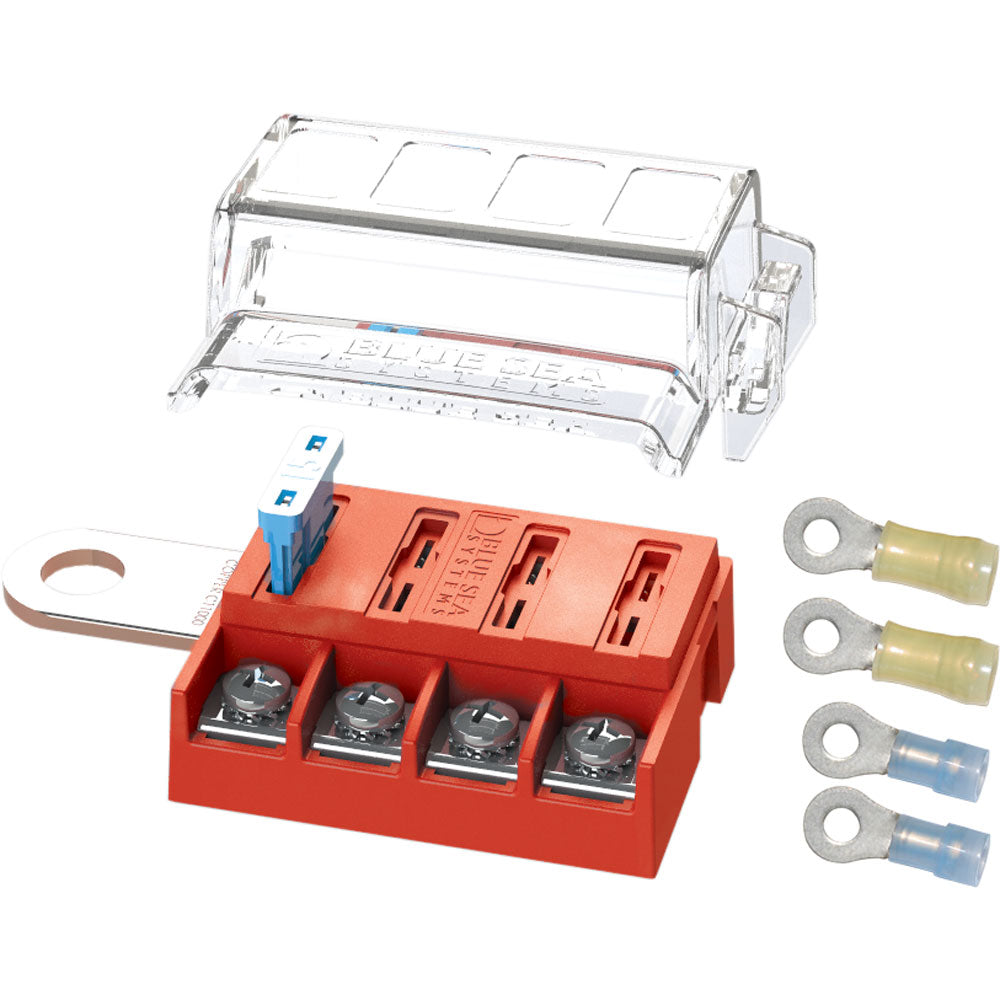

ST-Blade Battery Terminal Mount Fuse Block

Features:

  • Easy to install 4 ATO/ATC fused circuits
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Four Nylon insulated ring terminals included
  • Insulating cover included
  • Accepts Small Format Circuit Labels
  • Includes 1 fuse

Specifications:
  • Circuits: 4
  • Maximum Amperage: 100A per block, 30A per circuit
  • Maximum Voltage: 32V DC
  • Mounting: Clearance for 3/8" [M10] stud
  • Screw Terminal Type: #8-32 Screws with captive star lock washer

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Fuse Type: ATO/ATC
  • Type: Fuse Blocks
  • Box Dimensions: 2"H x 5"W x 8"L WT: 0.3 lbs
  • UPC: 632085050238

Quick Guide (pdf)
