Blue Sea Systems  |  SKU: PD-57216  |  Barcode: 632085015220

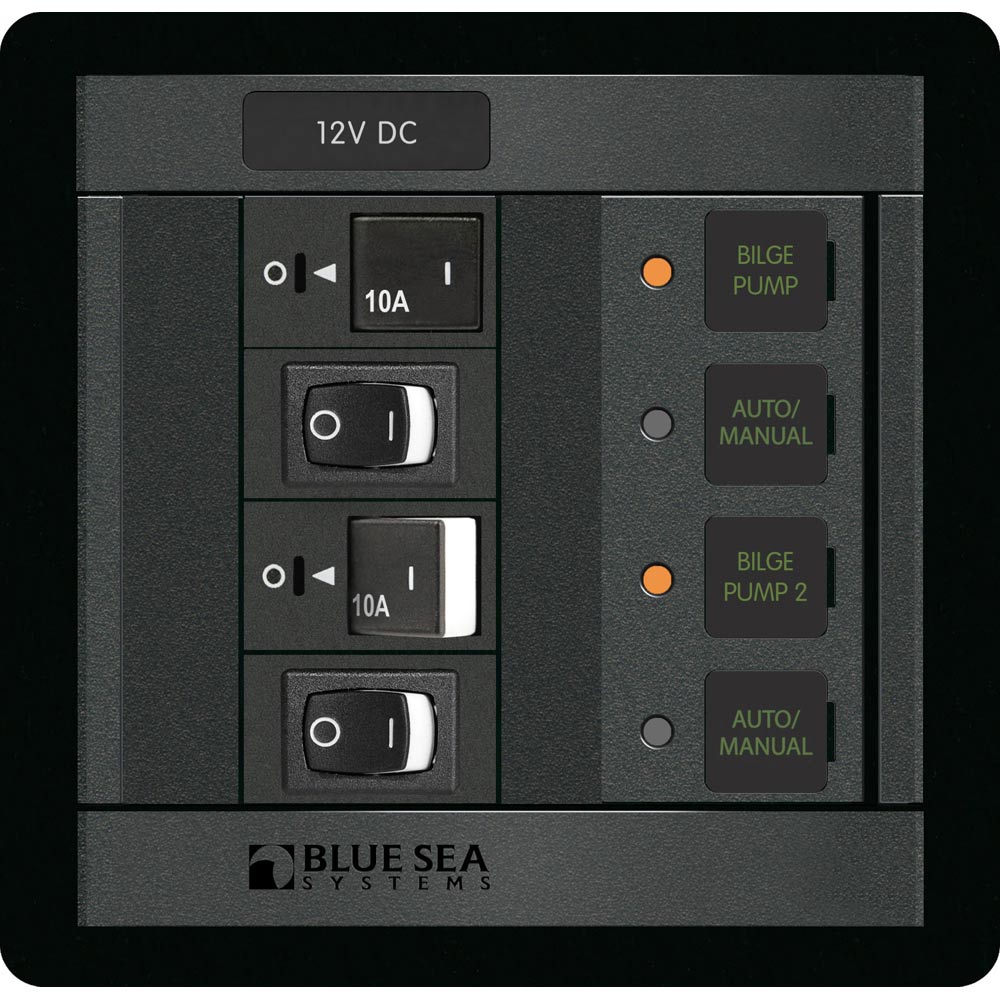

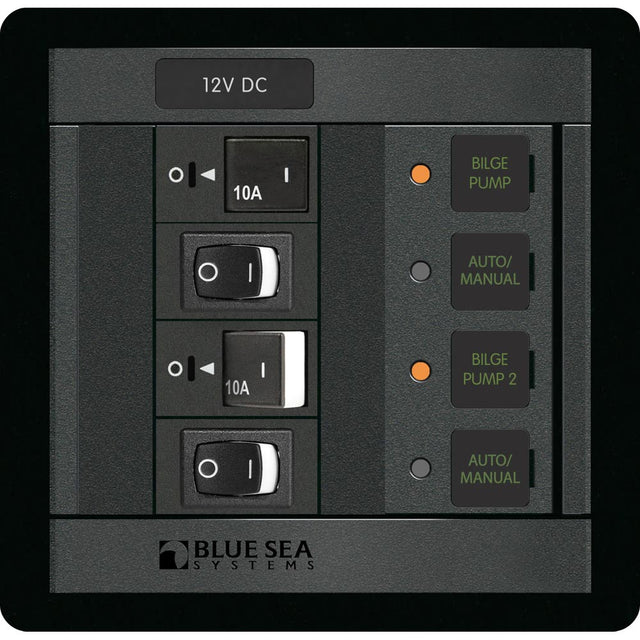

Blue Sea 1522 360 Panel Dual Bilge Pump Control [1522]

$261.76 $441.99

🛡️ Lifetime Parts Guarantee

We’ve got your back: For real, For life. Learn More

Quick Shipping, Free over $100

In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

No Fee Returns for 30 Days

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

Description

360 Panel Dual Bilge Pump Control

Controls two bilge pumps
Restricted-off circuit breakers and manual override switches

  • On-indicating LED indicates power is available at the bilge pump float switch
  • Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch
  • Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation


Specifications:
  • Nominal Voltage: 12V DC
  • Height: 4.75" (120.65mm)
  • Width: 4.88" (123.95mm)


Includes:
(2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A
(2) - 7480 - Rocker Switch SPST - ON-OFF

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: DC
  • Box Dimensions: 5"H x 7"W x 9"L WT: 1.3 lbs
  • UPC: 632085015220

Quick Guide (pdf)
