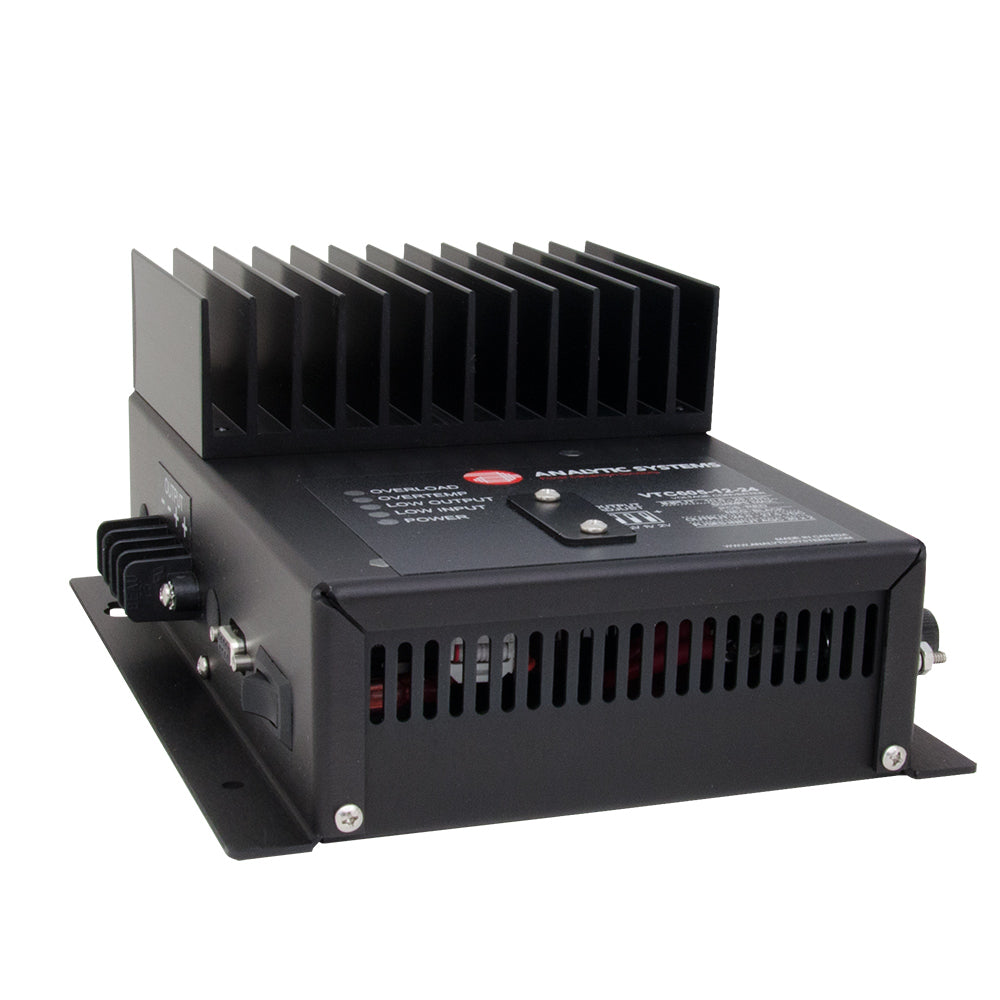

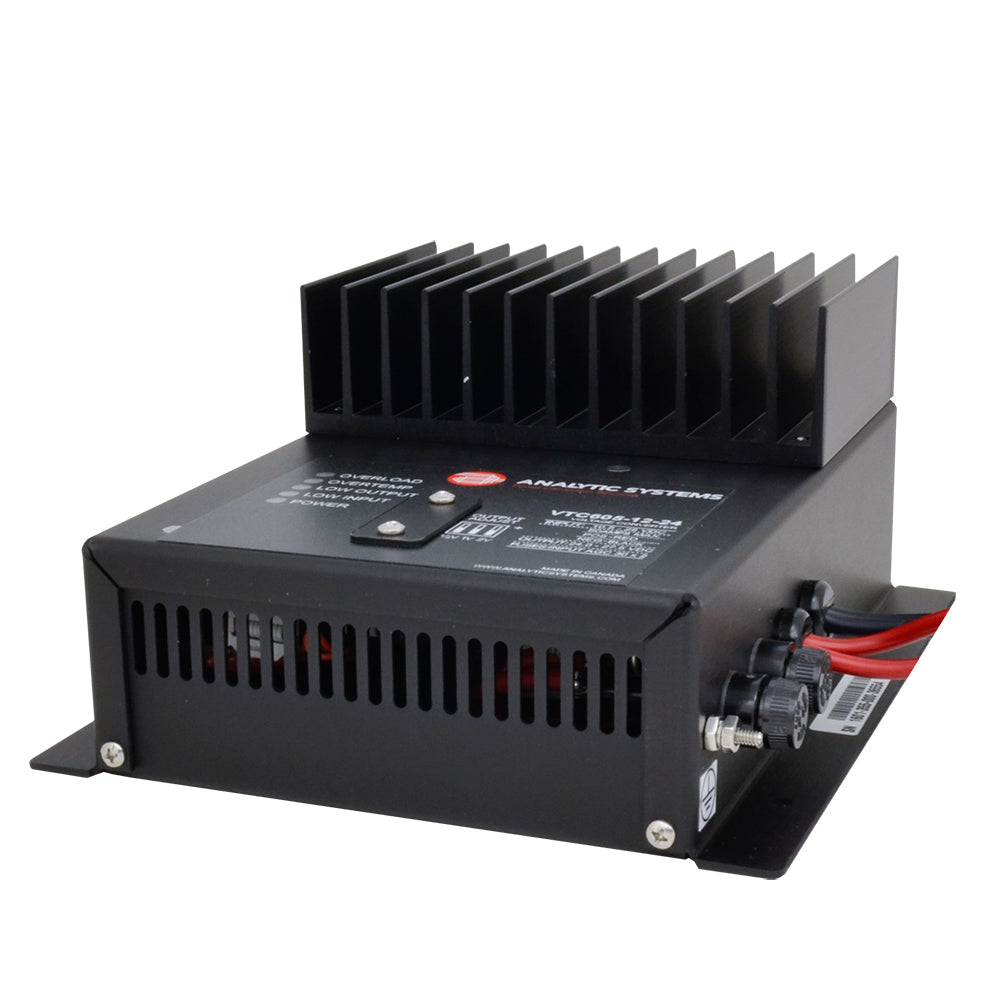

Analytic Systems Non Iso DC/DC Converter 22A, 24V Out, 11-15V In [VTC605-12-24]

Name: Analytic Systems Non Iso DC/DC Converter 22A, 24V Out, 11-15V In [VTC605-12-24]
Brand: Analytic Systems
SKU: PD-77027
Price: 900.13 USD
Availability: OutOfStock

$900.13 $922.00

Sold Out - Call for help finding a replacement.

Please call for ETA

🛡️ PARTSDUCK Promise - Best price, great support & more

More than just a price match! Best price, fast shipping, great stock, real support. More Here

Free Shipping Over $99

In stock items ship same or next business day from the closest of our 20+ warehouses with stock. Economy Shipping is free over $99.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday EST.

(856) 666-7986

No Fee Returns for 30 Days

No restocking fees on most items, full Return Policy

Description

Non Iso DC/DC Converter 22A, 24V Out, 11-15V In

Step up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 DC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system.

Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, a dry contact alarm relay output and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage,
the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include remote panel monitoring with On/Off control.

Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12V and 24 VDC power systems in marine, automotive or aeronautical environments and more.

Features:
