![Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin [B117-DT-HB]](http://partsduck.com/cdn/shop/files/65259XL.jpg?v=1747254954&width=1500)
Loading...
Airmar | SKU:
PD-65259
Sold Out - Call for help finding a replacement.
Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin [B117-DT-HB]
Regular price
$289.99
Unit price
Unavailable
🛡️ Lifetime Parts Guarantee
🛡️ Lifetime Parts Guarantee
We’ve got your back: For real, For life. Learn More
Free Shipping On All Orders!
Free Shipping On All Orders!
(Normally)In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
Description
Description

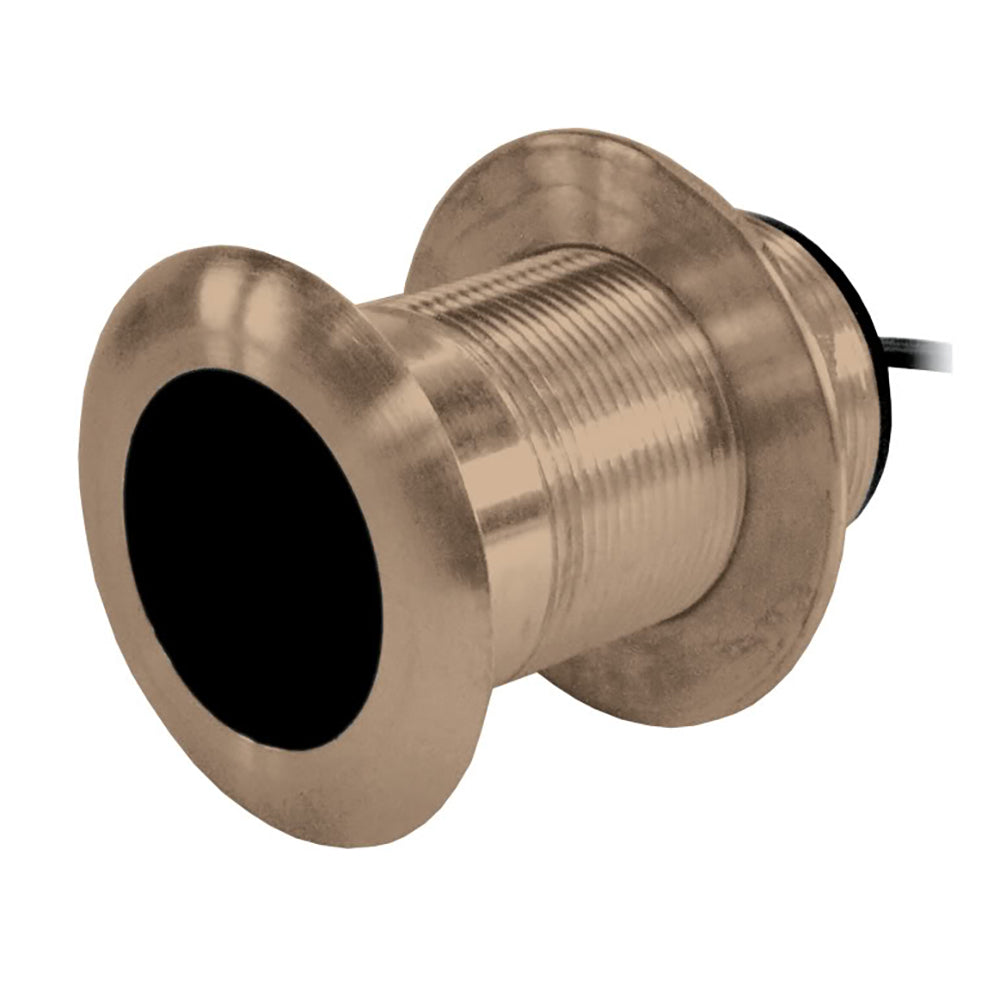

B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin
The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.
Features
- Industry standard for low-profile transducers
- Depth and temperature
- Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Optional temperature sensor
- Bronze transducer housing
- Boat Size: 8M (25') and up
Specifications:
- Weight: Bronze - 0.9 kg (2.0 lb)
- Hull Deadrise: Up to 8°
- Acoustic Window: Urethane
- Hole Diameter: 51mm (2")
Specifications:
- Mounting Style: Thru-Hull
- Temperature: Yes
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
