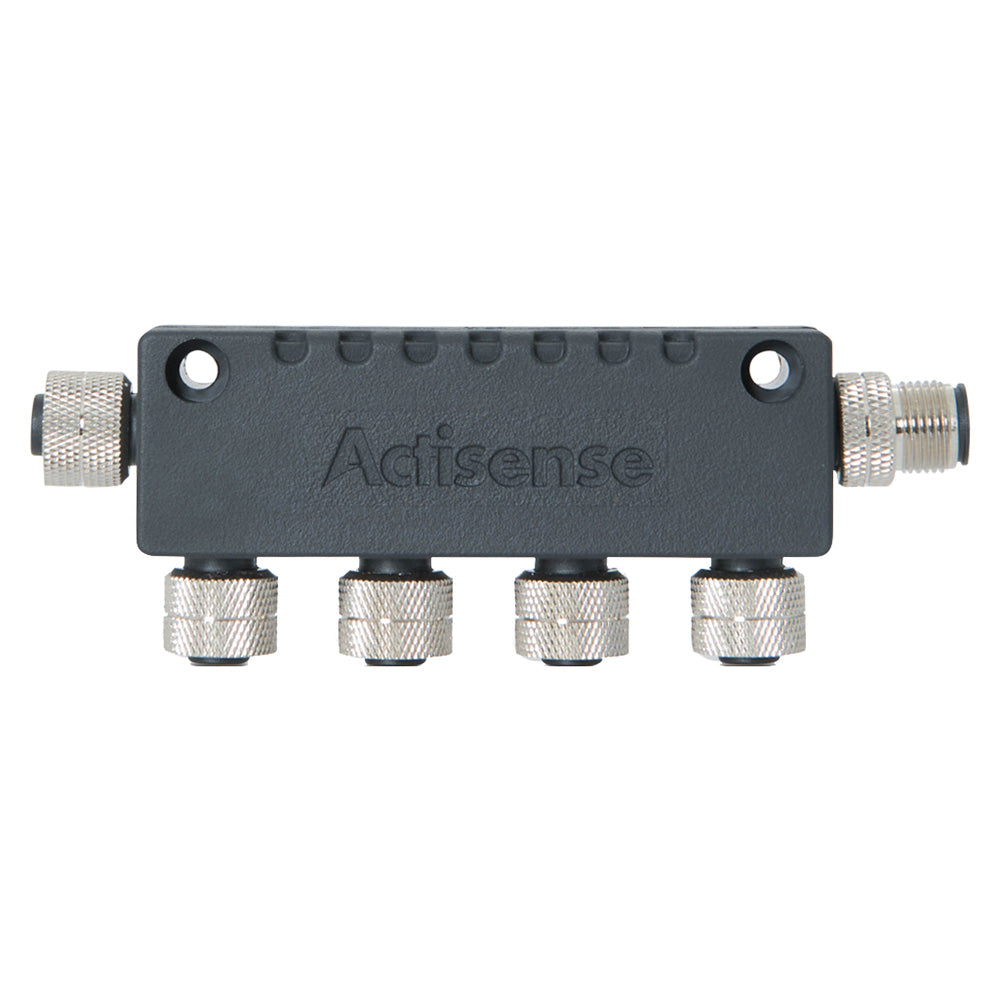

Actisense N2K Micro 4 Way T-Piece [A2K-4WT]
🛡️ Lifetime Parts Guarantee
🛡️ Lifetime Parts Guarantee
We’ve got your back: For real, For life. Learn More
Free Shipping On All Orders!
Free Shipping On All Orders!
(Normally)In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
Actisense N2K Micro 4 Way T-Piece [A2K-4WT]
Description
Description
N2K Micro 4 Way T-Piece
The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces, and costs less than four.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Features:
- NMEA 2000 Approved
- RoHS Compliant
Specifications:
- Rated Current: 4A
- Rated Voltage: 60V DC
- Male Contact: Brass, gold plated
- Female Contact: Phosphor bronze, gold plated
- Contact Carrier: PA66 (30% Glass filled), black
- Contact Polarization: Standard M12 -“A”- polarization
- Mating Thread: M12
- Screw Cap: Brass, nickel plated
- O-Ring Seal: Rubber, Black
- Housing: TPU, flame retardant to UL94V-0, Halogen Free
- Internal Housing Shield: Copper Foil
- Weight: 105g
- Protection: IP67 (when mated)
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
Quick Guide (pdf)
