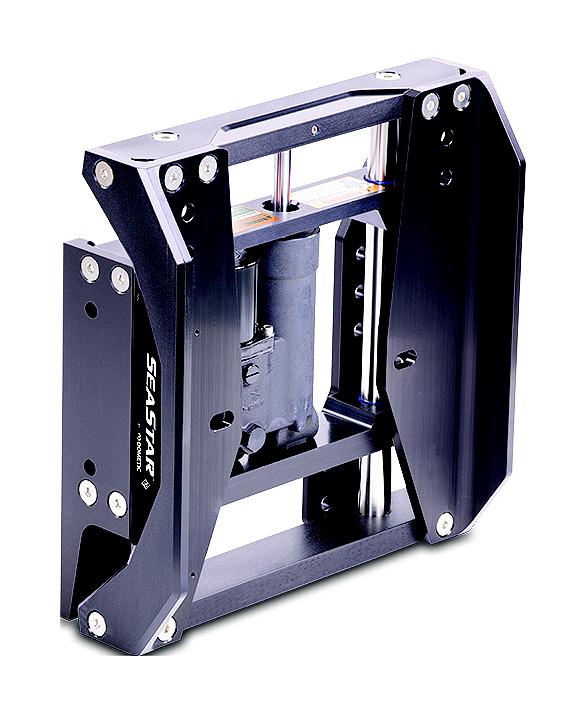

Dometic SeaStar Standard Hydraulic Jackplate, 4-inch Setback - JP5040R

Standard hydraulic outboard jackplate in the nominal 4-inch setback class. Confirm the actual mounting dimensions and clearances using the drawing for your jackplate revision. Manufacturer rating: up to 300 HP; confirm engine weight and transom limits in the installation guide. Integrated hydraulic actuator provides 5.6 inches of lift with a nominal 8.5-second travel time. Composite bushings, a visible lift scale and side access to engine bolts support adjustment and service. Includes basic DK4020 rocker-switch control; SmartStick position indication is an optional accessory. DK4600 is required when installing an anchoring system on this 4-inch model. Verify full engine tilt, steering cylinder and hose clearance throughout travel.

Specifications

Technical reference

Manufacturer product information

Manufacturer video

Dometic: Jack Plates 101

Manufacturer jackplate family overview. Features and adjustment methods vary between manual and hydraulic models; use this listing and the exact model manual for selection.

Manufacturer video

Dometic: Outboard Jackplate Review and Install

Hydraulic jackplate demonstration. Confirm the setback, engine rating and installation instructions for the selected model.
