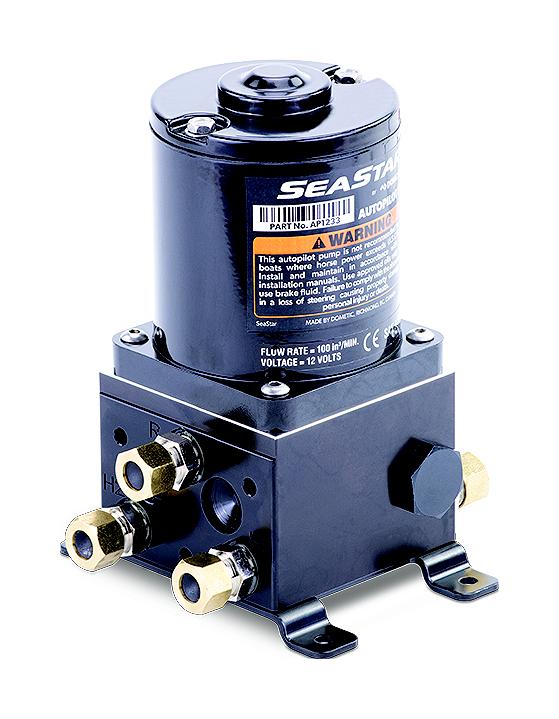

Dometic SeaStar Type 2 Autopilot Pump, 12V - AP1233
Description
Description
12V DC fixed-flow reversible hydraulic autopilot pump, Type 2, with nominal flow of 100 cubic inches per minute. The flow rating is not a cylinder capacity. Uses an internal gear pump and can be installed as a suitable standalone pilot pump or with the specified SeaStar Power Assist arrangement. Select the pump using cylinder volume and the autopilot controller requirements; verify plumbing and electrical compatibility.
Specifications
| Manufacturer part number | AP1233 |
|---|---|
| Product | SeaStar Type 2 Autopilot Pump, 12V |
Selection and service
Match the complete part number, including revision suffix, to the installed equipment. Follow the equipment manufacturer's instructions for installation and service.
Pump selection data
| Supply | 12V DC |
|---|---|
| Flow at no load | 100 cu. in./min |
| Maximum pressure | 1,000 PSI |
| Typical current draw | 5–11 A; depends on application |
| Steering-cylinder displacement range | 12.5–21 cu. in. |
| Electrical leads | 24-inch bare leads |
| Hose compatibility | Standard SeaStar hose fittings, including the HO51 series |
Confirm that the autopilot controller supports the selected pump and electrical load. These are pump specifications, not a guarantee of complete-system compatibility. Dometic Type 1 / Type 2 pump specifications.
