Turning Point Express Mach4 4-Blade Stainless Steel Propeller — 4.75"+ Gearcase

$432.55 $747.00

In stock

- Ships same or next business day.

Select propeller

🛡️ PARTSDUCK Promise - Best price, great support & more

More than just a price match! Best price, fast shipping, great stock, real support. More Here

Free Shipping Over $99

In stock items ship same or next business day from the closest of our 20+ warehouses with stock. Economy Shipping is free over $99.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday EST.

(856) 666-7986

No Fee Returns for 30 Days

No restocking fees on most items, full Return Policy

Description

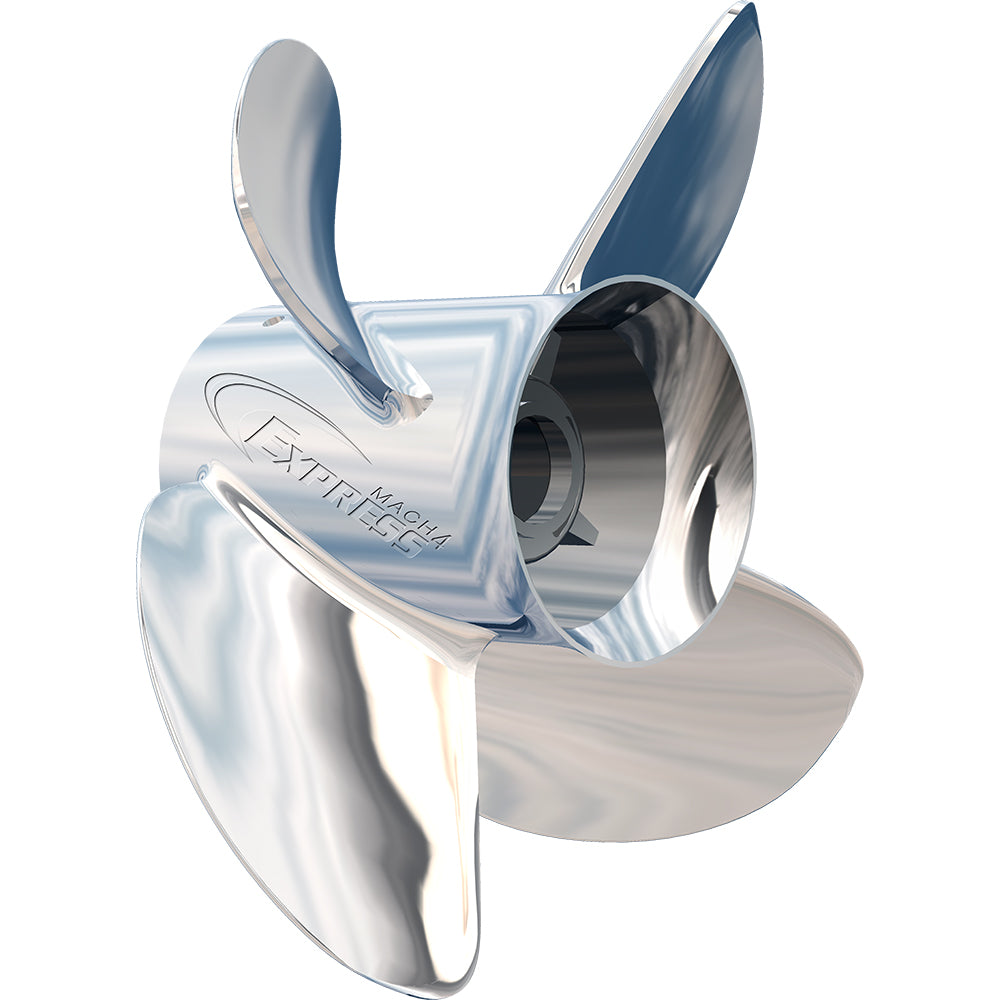

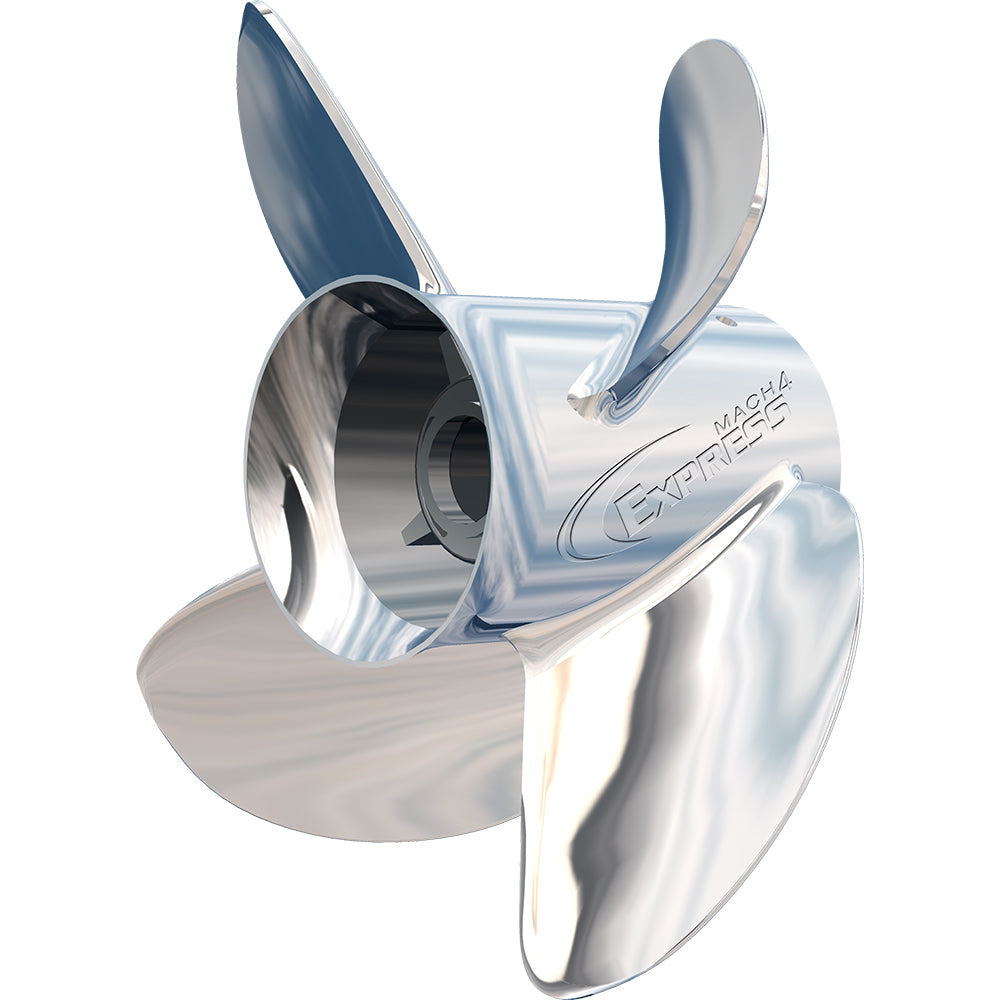

The Turning Point Express Mach4 EX is a 4-blade stainless steel propeller housing in the 4.75-inch and larger gearcase family. Its four-blade design is intended for boaters prioritizing acceleration, handling and load carrying. Engine fitment requires the correct separate installation/hub kit; gearcase family or horsepower alone does not establish compatibility.

Sold as one propeller housing. The engine-specific hub/installation kit is required and sold separately. Choose the exact propeller from the dropdown. Each choice lists diameter x pitch, rotation and manufacturer part number; use the specification table below to compare.

Exact specifications by part number

Part number	PartsDuck SKU	Diameter	Pitch	Rotation	Material	Blades
31501330	PD-80063	15.3 in	13 in	Right Hand	Stainless Steel	4
31501340	PD-80064	15.3 in	13 in	Left Hand	Stainless Steel	4
31501532	PD-56044	15 in	15 in	Right Hand	Stainless Steel	4
31501542	PD-56045	15 in	15 in	Left Hand	Stainless Steel	4
31501731	PD-56037	14.5 in	17 in	Right Hand	Stainless Steel	4
31501741	PD-56041	14.5 in	17 in	Left Hand	Stainless Steel	4
31501931	PD-56038	14 in	19 in	Right Hand	Stainless Steel	4
31501941	PD-56042	14 in	19 in	Left Hand	Stainless Steel	4
31502131	PD-56039	14 in	21 in	Right Hand	Stainless Steel	4
31502141	PD-56043	14 in	21 in	Left Hand	Stainless Steel	4
31502331	PD-80067	14.3 in	23 in	Right Hand	Stainless Steel	4

Design details

Separate prop housing and engine-specific installation kit allow the hub and prop to be selected for the application.
TP17 stainless-steel construction.
MaxSpeed balancing process.
Dual Geometry design for the larger gearcase family.

Performance depends on hull, engine, load, mounting height and trim. A different blade count or design may require a different pitch even when replacing a prop with the same stamped pitch.

Hub and engine compatibility

Start with the exact engine manufacturer, model, year, gearcase and shaft spline count in Prop Wizard. The following kit references are application-dependent choices, not a list of interchangeable hubs. Applications marked four-blade-only or OS-only require that specified prop design.

Hub kit and engine application chart — EX prop housing
Engine application and fitment requirements	Shop hub kit
15-spline Evinrude/Johnson large-gearcase V4, V6 and V8 applications listed in the chart, including specified non-G2 E-TEC and H.O. models. OMC Cobra 800 3.0–7.5 L, King Cobra 454/502/7.4–8.2 L (1990+) and Sea Drive 2.0–4.0 L. Excludes E-TEC G2; OMC SX uses the Volvo SX selection.	Kit 502 — 11500200
15-spline Evinrude E-TEC G2: 140 hp with large gearcase and 150 H.O.–300 hp. Use Super Duty 711 on 200+ hp engines with stainless props.	Kit 511 — 11501100
Super Duty for 15-spline Evinrude E-TEC G2 200+ hp engines using stainless props. Does not imply fitment to earlier non-G2 E-TEC gearcases.	Kit 711 — 11701100
15-spline Honda BF115D (2011+), BF135/150 (2004+), BF200/225 (2002+), BF250 (2012+); Tohatsu BFT115 (2014–2020), BFT150/200/225/250. For 200+ hp engines with stainless props, the chart calls for Super Duty 708.	Kit 508 — 11500800
Super Duty for listed 15-spline Honda and Tohatsu BFT applications using stainless props on 200+ hp engines. Check the exact model/year; do not substitute for a smaller Honda gearcase.	Kit 708 — 11700800
15-spline large-gearcase Mercury/Mariner models listed in the manufacturer chart; MerCruiser Alpha One / Bravo One (1983+). For 200+ hp Bravo One drives with stainless props, use kit 701 instead. Excludes 19-spline HD shafts.	Kit 501 — 11500100
Super Duty for listed 15-spline Mercury/Mariner 200+ hp stainless-prop applications and MerCruiser Bravo One 200+ hp with stainless props. Not the 19-spline Mercury fat-shaft kit. Check the exact drive in Prop Wizard.	Kit 701 — 11700100
Sound-dampening hub for listed 15-spline Mercury/Mariner large-gearcase outboard applications. Match exact model/year in the manufacturer chart. Excludes 19-spline HD shafts.	Kit 801F — 11800100
MasterTorq fat-shaft kit for Mercury/MerCruiser 19-spline, 1.25-inch HD shafts with 5.25–5.44-inch gearcases: specified Pro XS/Torque Master, Verado 300–400, Sport Master/Fleet Master, and Bravo One XR/XZ applications. Not the standard 1-inch, 15-spline kit. Confirm the exact gearcase.	Kit 621 — 11602100
Hub for listed 15-spline Suzuki DT two-stroke 150–225 hp. Suzuki DF150–300 and Johnson four-stroke 200–225 are excluded from this propeller: they require Express Mach3 OS.	Kit 517 — 11501700
Super Duty hub for listed 15-spline Suzuki DT two-stroke 150–225 hp. Suzuki DF150–300 and Johnson four-stroke 200–225 are excluded from this propeller: they require Express Mach3 OS.	Kit 717 — 11701700
Sound-dampening hub for listed 15-spline Suzuki DT two-stroke 150–225 hp. Suzuki DF150–300 and Johnson four-stroke 200–225 are excluded from this propeller: they require Express Mach3 OS.	Kit 817F — 11801700
19-spline Volvo Penta SX and OMC SX Cobra, 3.0–8.2 L (1994+). Not for Volvo DuoProp or Aquamatic drives.	Kit 504 — 11500400
17-spline Volvo Penta AQ 200/250/270/280/290. Use 4-blade props only.	Kit 510 — 11501000
15-spline Yamaha 2- and 4-stroke 150–250 hp, V6 F300 (2009+) and sterndrives 3.0–7.4 L. Match hub duty rating to application; F350 requires a different prop housing and kit.	Kit 505 — 11500500
Super Duty for listed 15-spline Yamaha stainless-prop applications at 200+ hp. Yamaha Express Mach3 OS prop housings use 805FT; F350 is a separate 715 application.	Kit 705 — 11700500
Sound-dampening hub for listed 15-spline Yamaha 150–250 hp, V6 F300 (2009+) and sterndrive applications. Not for Express Mach3 OS housings.	Kit 805F — 11800500

Choosing pitch and rotation

Record the current prop part number, diameter, pitch and rotation.
Check the engine maker’s recommended wide-open-throttle RPM range and record actual RPM and GPS speed with the normal passenger, fuel and gear load.
Use Prop Wizard with the exact engine and boat details; do not select by horsepower alone.
Confirm right-hand or left-hand rotation, particularly on twin-engine installations. Left-hand is not a substitute for right-hand.
After installation, water-test under normal load and confirm operation within the engine maker’s RPM range.

Installation and package

Package: one propeller housing. Hub kit and engine-specific installation hardware are separate. Follow the installation-kit instructions and engine manual for washer order, shaft preparation, retaining hardware, torque and locking procedure. Check full rotation and trim-tab clearance before operation. Do not assume the old hub or hardware will fit the new prop.

Fitment tools and documents
