Quick answer: A SeaStar hydraulic steering system uses a helm pump at the steering wheel to move hydraulic fluid through hoses to a steering cylinder at the engine. The correct system depends on the boat, engine, cylinder, helm displacement, hose configuration and Dometic application requirements.

PartsDuck now carries a deep Dometic SeaStar hydraulic steering catalog, so this guide is designed to explain what each major component actually does.

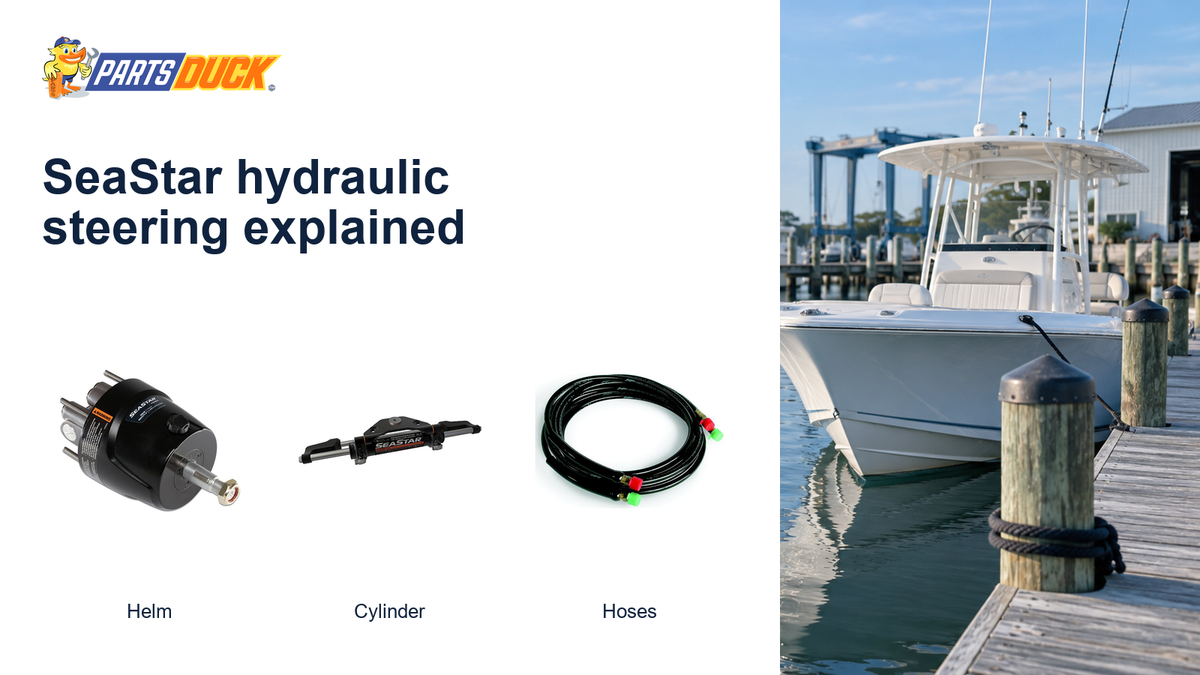

The Main Parts of a SeaStar Hydraulic Steering System

Hydraulic helm
Steering cylinder
Hydraulic hoses or tubing
Fittings
Approved steering fluid
Bleed/service equipment
Application-specific mounting hardware

1. The SeaStar Helm

The helm is the hydraulic pump behind the steering wheel. Turning the wheel moves fluid through the steering circuit, which drives the cylinder.

Helms are available in different displacements and mounting styles, including standard front-mount and tilt configurations. The helm is not something to select only by appearance; its displacement and system compatibility affect steering response and wheel turns.

Example: Dometic SeaStar HH5271-4 1.7 Front-Mount Hydraulic Helm →

Shop Dometic Steering Helms →

2. The Steering Cylinder

The cylinder converts hydraulic pressure into movement at the engine. Outboard cylinders may use front-mount or other application-specific configurations.

One of the best-known current SeaStar cylinders is the HC5345-3 Front-Mount Outboard Steering Cylinder. Dometic’s cylinder specifications identify an 8-inch stroke, 8.34 cu. in. volume and adjustable ORB fittings.

Do not select a cylinder because it "looks the same" as the old one. Dometic publishes application diagrams and engine-specific mounting instructions because similar-looking cylinders can have different applications.

Shop Dometic Hydraulic Steering Cylinders →

3. Hoses and Tubing

Hydraulic lines carry steering fluid between the helm and cylinder. Routing matters just as much as length.

Dometic instructions emphasize sufficient slack for full steering and engine trim/tilt travel, chafe protection, approved hose, and proper bend radius. Do not cut factory SeaStar hose assemblies or substitute nylon tubing for an outboard SeaStar pressure hose.

Shop Steering Hoses & Tubing →

4. Steering Fluid

Use the fluid specified by Dometic for the system. Mixing unknown fluids or substituting automotive hydraulic products can create seal, performance, or warranty problems.

5. Complete Steering Kits

A complete kit can simplify a new installation because the major matched components are packaged together.

Examples include:

Some current PartsDuck kits are sold without hoses, so read the included-components section carefully before ordering.

Standard SeaStar vs. SeaStar PRO

SeaStar PRO is intended for specific high-performance applications, not as a universal upgrade. Dometic currently targets SeaStar PRO toward single non-power-assisted outboards up to 300 HP, especially boats capable of speeds over 60 MPH.

Read our HK6400 vs. HK7500 PRO comparison →

Service Parts Matter

Hydraulic steering systems require inspection and maintenance. PartsDuck carries Dometic steering service parts, including fittings, adapters, mounting hardware and related components.

Any steering system showing leaks, excessive free play, damaged hoses, corrosion, abnormal steering effort or loose hardware should be inspected before operation.
