Quick answer: The safest way to identify a SeaStar steering component is to combine any visible model or part number with the steering type, mounting configuration, exact engine information and Dometic's current application documentation. Do not choose a replacement from appearance alone.

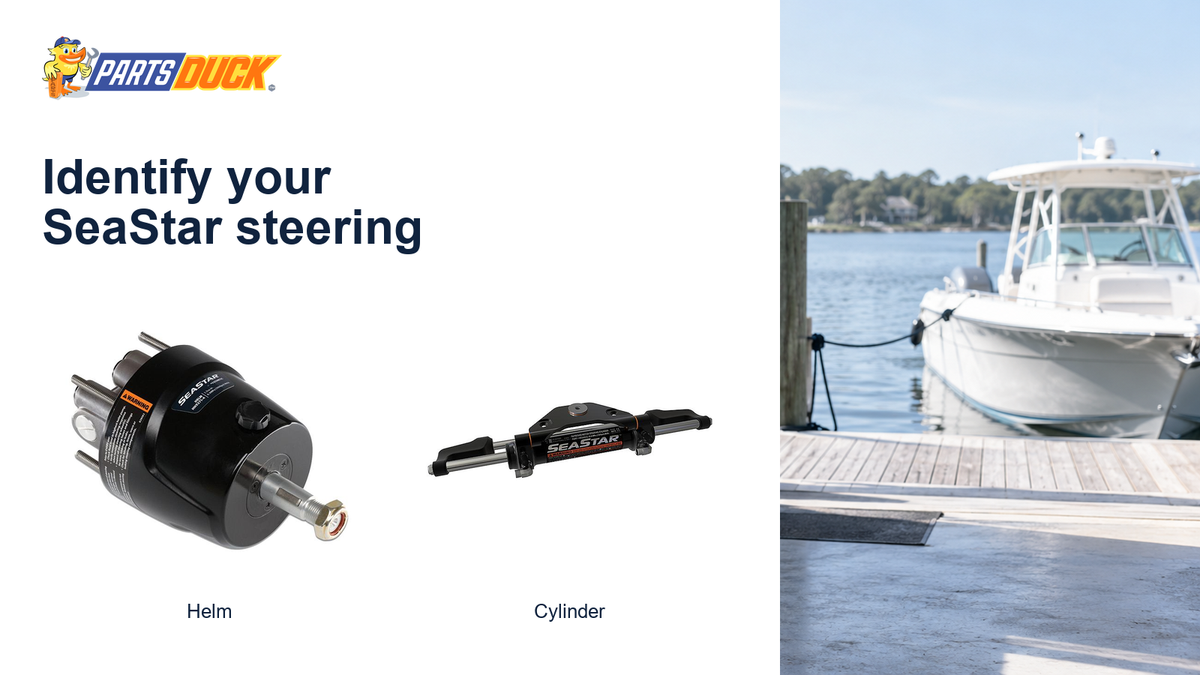

Why SeaStar Identification Can Be Tricky
SeaStar has produced many helms, cylinders, kits and service parts over the years. Several components can look very similar while having different displacement, fittings, mounting geometry or engine applications.
Start With the Existing Part Number
If the component has a readable printed, engraved, stamped or labeled part/model number, record it exactly. Also check old invoices, installation records, manuals and previous service documentation.
SeaStar part families often begin with prefixes such as:
- HC — many hydraulic steering cylinders
- HH — many hydraulic helms
- HK — steering kits
- HF — many fittings/service components
Prefixes are helpful clues, not a substitute for application verification.
How to Identify a SeaStar Cylinder
Record:
- Any visible SeaStar/Dometic part number
- Front-mount, side-mount, splashwell or inboard configuration
- Single vs. twin/multiple engines
- Engine manufacturer
- Exact engine model and year
- Horsepower
- Current hose/fitting configuration
- Any jack plate or unusual mounting hardware
Dometic's current front-mount cylinder manual includes HC5345-3, HC5347-3, HC5348-3, HC5358-3 and other related cylinders and gives application-specific assembly diagrams.
How to Identify a SeaStar Helm
Record:
- Any model number
- Front mount, rear mount or tilt configuration
- Helm displacement if known
- Standard SeaStar vs. SeaStar PRO system
- Number of steering stations
- Existing hose/fitting type
An example currently sold by PartsDuck is the SeaStar HH5271-4 1.7 Front-Mount Hydraulic Helm.
Why Appearance Alone Is Not Enough
Two cylinders may both be stainless front-mount designs but use different application hardware, support brackets or system specifications. A helm can fit the dash opening yet still have the wrong displacement or system role.
For steering, "looks close" is not a safe fitment method.
Fittings are another identification clue: Dometic specifies ORB hose ports on -3 cylinders and -4 helms. Do not thread an NPT fitting into an ORB hose port. Record the complete model suffix and verify the specified fitting rather than judging threads by eye.
HC5345-3 Example
The HC5345-3 SeaStar Front-Mount Outboard Cylinder is one of the most recognized SeaStar cylinders, but even it must be checked against the exact engine application and installation geometry.
Read our full HC5345-3 guide →
What Information Should You Have Before Ordering?
- Engine make
- Engine model
- Engine year
- Horsepower
- Single/twin/multiple engine setup
- Current steering type
- Current cylinder/helm part number if available
- Boat type and performance level
- Jack plate or special transom hardware
Shop by Component
- SeaStar Steering Cylinders
- SeaStar Steering Helms
- SeaStar Steering Service Parts
- All Dometic Hydraulic Steering
When to Stop and Get Professional Help
If identification remains uncertain, or the system shows corrosion, leaks, excessive play, damaged mounting hardware or unusual steering effort, confirm the installation with Dometic or a qualified marine steering technician before operating the boat.
Manufacturer Source
Use Dometic's current SeaStar front-mount cylinder installation manual for application diagrams and installation details.
