Description
Description

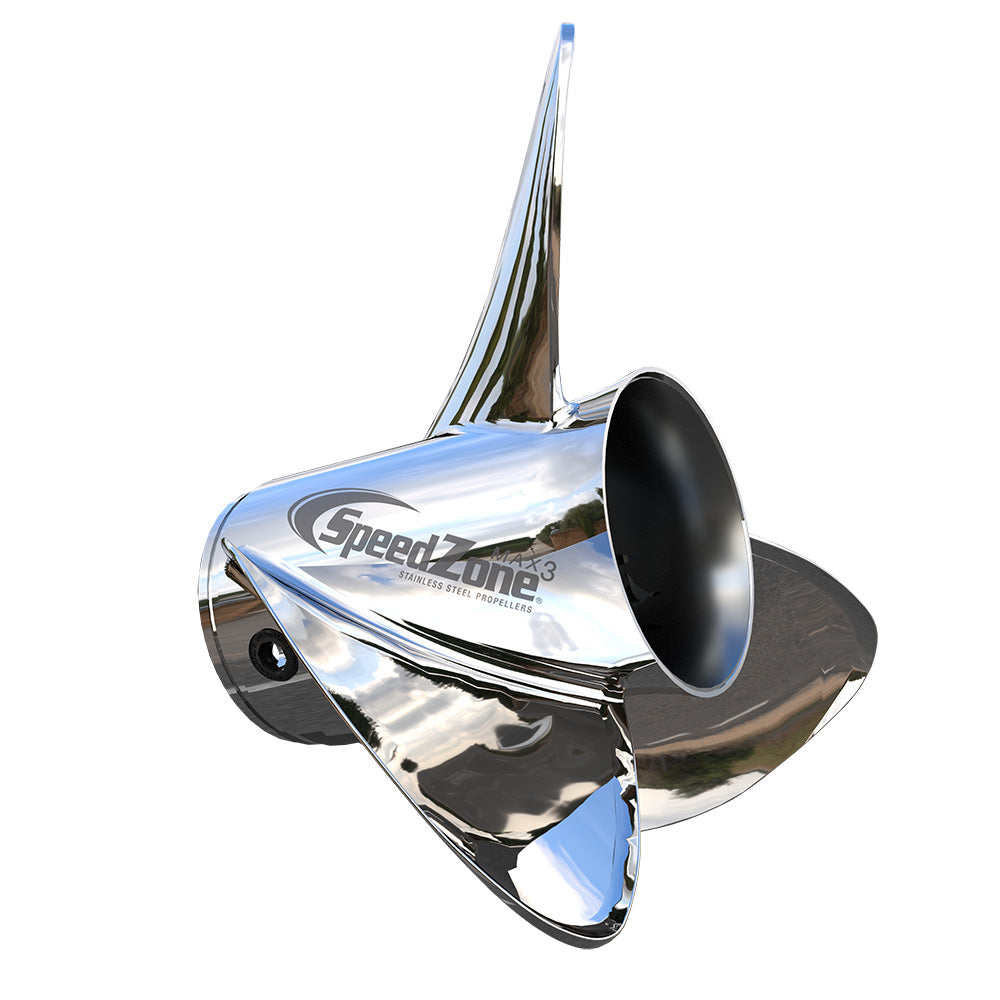

The Turning Point SpeedZone Max3 SZM3 is a 3-blade stainless steel propeller housing in the 4.75-inch and larger gearcase family. The manufacturer identifies this as its bass-boat series. Engine fitment requires the correct separate installation/hub kit; gearcase family or horsepower alone does not establish compatibility.
Sold as one propeller housing. The engine-specific hub/installation kit is required and sold separately. Choose the exact propeller from the dropdown. Each choice lists diameter x pitch, rotation and manufacturer part number; use the specification table below to compare.
Exact specifications by part number
| Part number | PartsDuck SKU | Diameter | Pitch | Rotation | Material | Blades |
|---|---|---|---|---|---|---|
| 31542310 | PD-101537 | 14.8 in | 23 in | Right Hand | Stainless Steel | 3 |
| 31542410 | PD-101538 | 14.8 in | 24 in | Right Hand | Stainless Steel | 3 |
| 31542510 | PD-101539 | 14.8 in | 25 in | Right Hand | Stainless Steel | 3 |
Hub and engine compatibility
Start with the exact engine manufacturer, model, year, gearcase and shaft spline count in Prop Wizard. The following kit references are application-dependent choices, not a list of interchangeable hubs. Applications marked four-blade-only or OS-only require that specified prop design.
| Engine application and fitment requirements | Shop hub kit |
|---|---|
| 15-spline Evinrude/Johnson large-gearcase V4, V6 and V8 applications listed in the chart, including specified non-G2 E-TEC and H.O. models. OMC Cobra 800 3.0–7.5 L, King Cobra 454/502/7.4–8.2 L (1990+) and Sea Drive 2.0–4.0 L. Excludes E-TEC G2; OMC SX uses the Volvo SX selection. | Kit 502 — 11500200 |
| 15-spline Evinrude E-TEC G2: 140 hp with large gearcase and 150 H.O.–300 hp. Use Super Duty 711 on 200+ hp engines with stainless props. | Kit 511 — 11501100 |
| Super Duty for 15-spline Evinrude E-TEC G2 200+ hp engines using stainless props. Does not imply fitment to earlier non-G2 E-TEC gearcases. | Kit 711 — 11701100 |
| 15-spline Honda BF115D (2011+), BF135/150 (2004+), BF200/225 (2002+), BF250 (2012+); Tohatsu BFT115 (2014–2020), BFT150/200/225/250. For 200+ hp engines with stainless props, the chart calls for Super Duty 708. | Kit 508 — 11500800 |
| Super Duty for listed 15-spline Honda and Tohatsu BFT applications using stainless props on 200+ hp engines. Check the exact model/year; do not substitute for a smaller Honda gearcase. | Kit 708 — 11700800 |
| 15-spline large-gearcase Mercury/Mariner models listed in the manufacturer chart; MerCruiser Alpha One / Bravo One (1983+). For 200+ hp Bravo One drives with stainless props, use kit 701 instead. Excludes 19-spline HD shafts. | Kit 501 — 11500100 |
| Super Duty for listed 15-spline Mercury/Mariner 200+ hp stainless-prop applications and MerCruiser Bravo One 200+ hp with stainless props. Not the 19-spline Mercury fat-shaft kit. Check the exact drive in Prop Wizard. | Kit 701 — 11700100 |
| Sound-dampening hub for listed 15-spline Mercury/Mariner large-gearcase outboard applications. Match exact model/year in the manufacturer chart. Excludes 19-spline HD shafts. | Kit 801F — 11800100 |
| MasterTorq fat-shaft kit for Mercury/MerCruiser 19-spline, 1.25-inch HD shafts with 5.25–5.44-inch gearcases: specified Pro XS/Torque Master, Verado 300–400, Sport Master/Fleet Master, and Bravo One XR/XZ applications. Not the standard 1-inch, 15-spline kit. Confirm the exact gearcase. | Kit 621 — 11602100 |
| Hub for listed 15-spline Suzuki DT two-stroke 150–225 hp. Suzuki DF150–300 and Johnson four-stroke 200–225 are excluded from this propeller: they require Express Mach3 OS. | Kit 517 — 11501700 |
| Super Duty hub for listed 15-spline Suzuki DT two-stroke 150–225 hp. Suzuki DF150–300 and Johnson four-stroke 200–225 are excluded from this propeller: they require Express Mach3 OS. | Kit 717 — 11701700 |
| Sound-dampening hub for listed 15-spline Suzuki DT two-stroke 150–225 hp. Suzuki DF150–300 and Johnson four-stroke 200–225 are excluded from this propeller: they require Express Mach3 OS. | Kit 817F — 11801700 |
| 19-spline Volvo Penta SX and OMC SX Cobra, 3.0–8.2 L (1994+). Not for Volvo DuoProp or Aquamatic drives. | Kit 504 — 11500400 |
| 15-spline Yamaha 2- and 4-stroke 150–250 hp, V6 F300 (2009+) and sterndrives 3.0–7.4 L. Match hub duty rating to application; F350 requires a different prop housing and kit. | Kit 505 — 11500500 |
| Super Duty for listed 15-spline Yamaha stainless-prop applications at 200+ hp. Yamaha Express Mach3 OS prop housings use 805FT; F350 is a separate 715 application. | Kit 705 — 11700500 |
| Sound-dampening hub for listed 15-spline Yamaha 150–250 hp, V6 F300 (2009+) and sterndrive applications. Not for Express Mach3 OS housings. | Kit 805F — 11800500 |
Choosing pitch and rotation
- Record the current prop part number, diameter, pitch and rotation.
- Check the engine maker’s recommended wide-open-throttle RPM range and record actual RPM and GPS speed with the normal passenger, fuel and gear load.
- Use Prop Wizard with the exact engine and boat details; do not select by horsepower alone.
- Confirm right-hand or left-hand rotation, particularly on twin-engine installations. Left-hand is not a substitute for right-hand.
- After installation, water-test under normal load and confirm operation within the engine maker’s RPM range.
Installation and package
Package: one propeller housing. Hub kit and engine-specific installation hardware are separate. Follow the installation-kit instructions and engine manual for washer order, shaft preparation, retaining hardware, torque and locking procedure. Check full rotation and trim-tab clearance before operation. Do not assume the old hub or hardware will fit the new prop.
