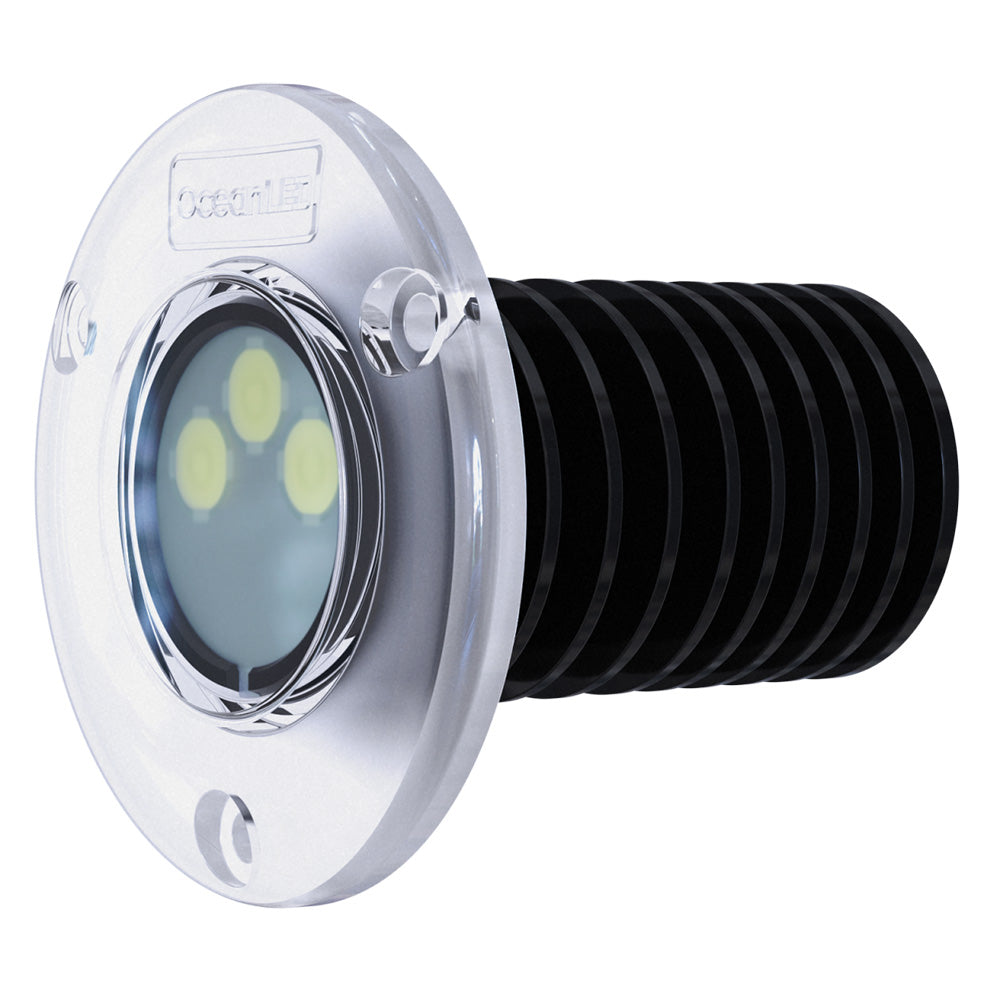

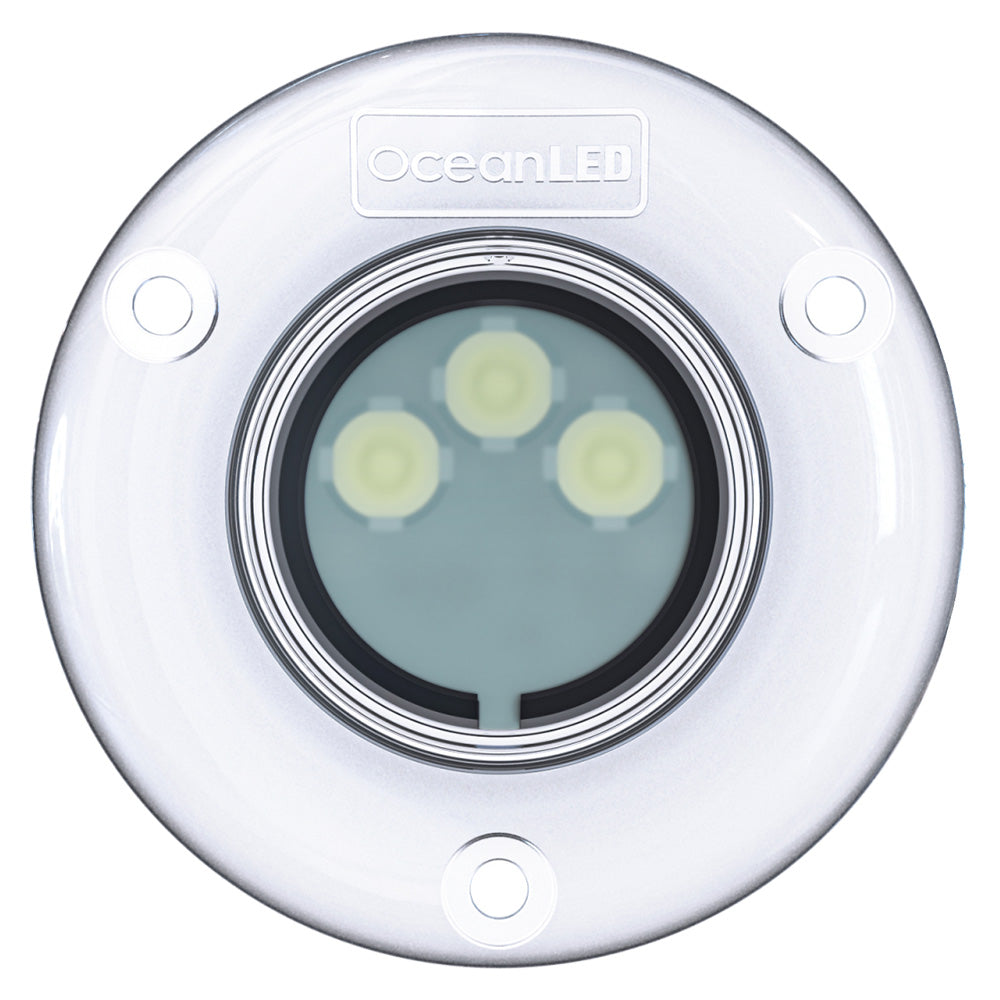

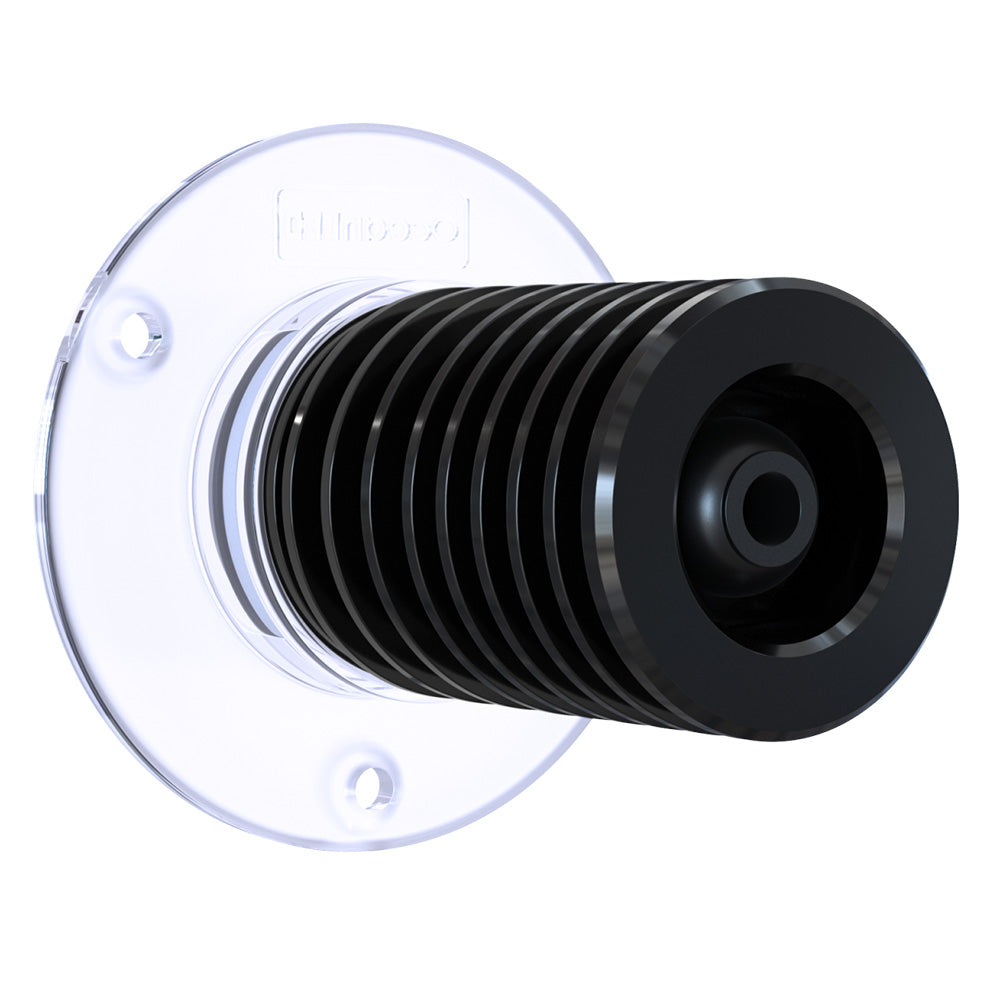

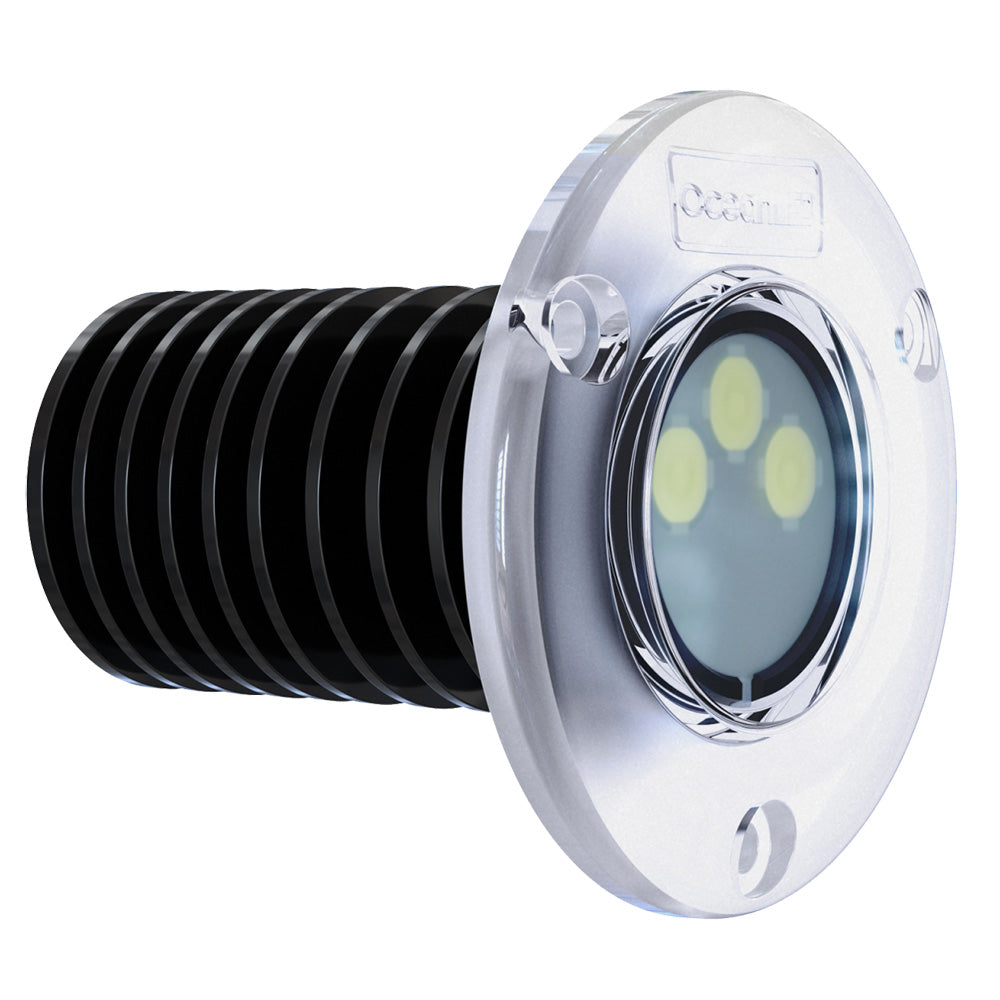

OceanLED Discover D3 Underwater LED Light with Isolation Kit | D3009BI / D3009WI
- Ships same or next business day.
🛡️ PARTSDUCK Promise - Best price, great support & more
🛡️ PARTSDUCK Promise - Best price, great support & more
More than just a price match! Best price, fast shipping, great stock, real support. More Here
Free Shipping Over $99
Free Shipping Over $99
In stock items ship same or next business day from the closest of our 20+ warehouses with stock. Economy Shipping is free over $99.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday EST.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
No restocking fees on most items, full Return Policy
OceanLED Discover D3 Underwater LED Light with Isolation Kit | D300...
Description
Description
Choose a Midnight Blue or Ultra White OceanLED Discover D3 with the supplied isolating mounting kit. Both options use the same flush-mount light body and 90° by 20° beam. Follow the manufacturer’s hull-material and isolation instructions.
Choose your option
| Light Color | Manufacturer part number | SKU |
|---|---|---|
| Midnight Blue | D3009BI | 812-D3009BI |
| Ultra White | D3009WI | 812-D3009WI |
Specifications shared by these options
| Mounting | Flush mount |
|---|---|
| Supply | 10–30V DC |
| Beam | 90° x 20° |
| Current at 12V / 24V | 0.7A / 0.37A |
| Face diameter | 70 mm |
| Body diameter | 40 mm |
| Hull cutout | 44 mm |
| Maximum recommended hull thickness | 50 mm |
| Cable | 2 m |
| Bezel | UV-protected polymer |
| Ingress rating | IP69K |
| Isolating mounting kit | Included |
Details by part number
D3009BI — Midnight Blue
| Light color | Midnight Blue |
|---|
D3009WI — Ultra White
| Light color | Ultra White |
|---|---|
| Fixture lumens (Ultra White) | 700 |
Selection and installation
- Check the 44 mm cutout, hull thickness and rear clearance before selecting a location.
- Follow the manual for sealing, hull-material suitability and isolation. The isolation-kit package is distinct from the light-only package.
- An unlit light-body photograph does not depict its emitted color or every included mounting component.
What is included
- One Discover D3 light
- Isolating mounting kit
Related installation components
Check the manual for the parts required by your exact system.
