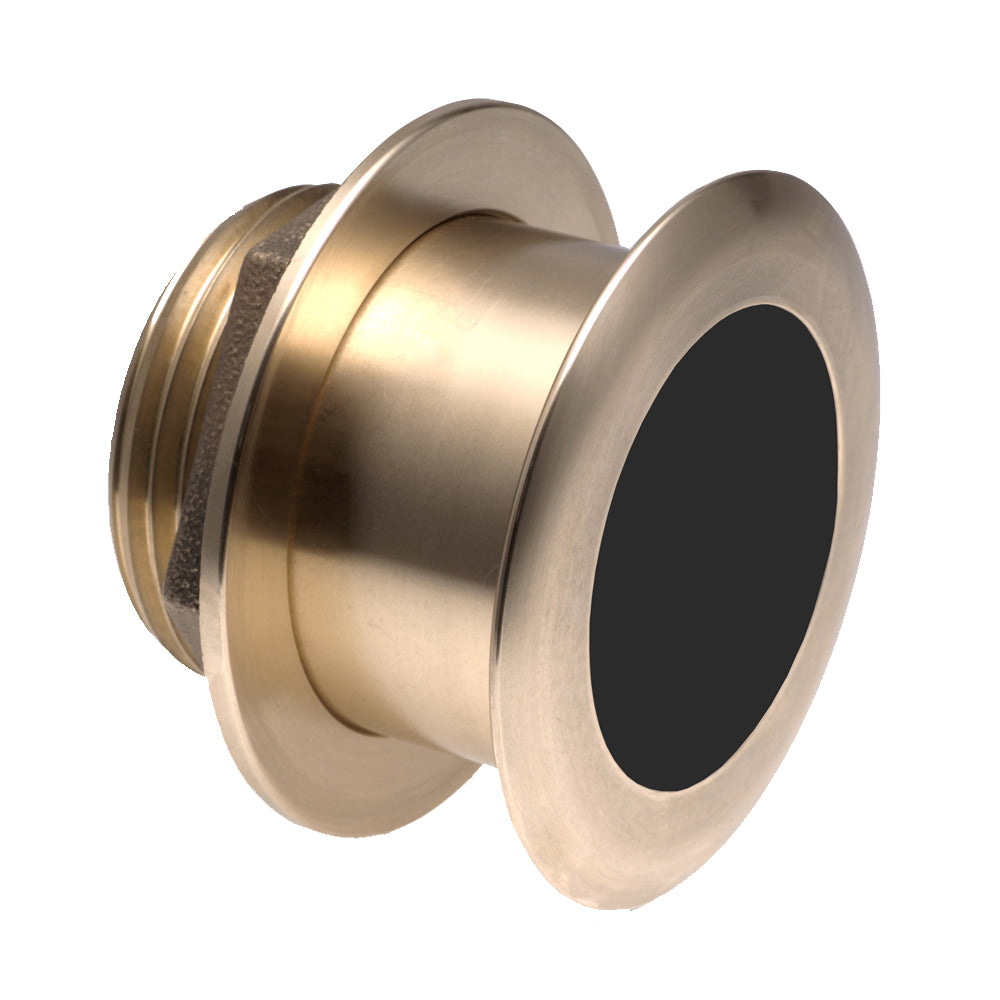

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]
🛡️ Lifetime Parts Guarantee
🛡️ Lifetime Parts Guarantee
We’ve got your back: For real, For life. Learn More
Quick Shipping, Free over $100
Quick Shipping, Free over $100
In stock items ship same or next business day. $3.99 flat rate, or free over $100.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1...
Description
Description
B175H-W 1KW Bronze Thru Hull 20° Tilted Element
Installation: Thru Hull
Material: Urethane
Power (RMS): 1kW
Max Depth(ft): 800
Frequency (KHz): 150-250
Records: Depth and Temperature
Approved Hull Material: Fiberglass / Wood
Cable Length (ft/M): 6ft/2m
Supported deadrise: 16-24° Deadrise
ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imagining: Standard
- Chirp: High Wide
- Cable Length (Feet): 6'
- Box Dimensions: 9"H x 11"W x 12"L WT: 9.8 lbs
- UPC: 723193796276
