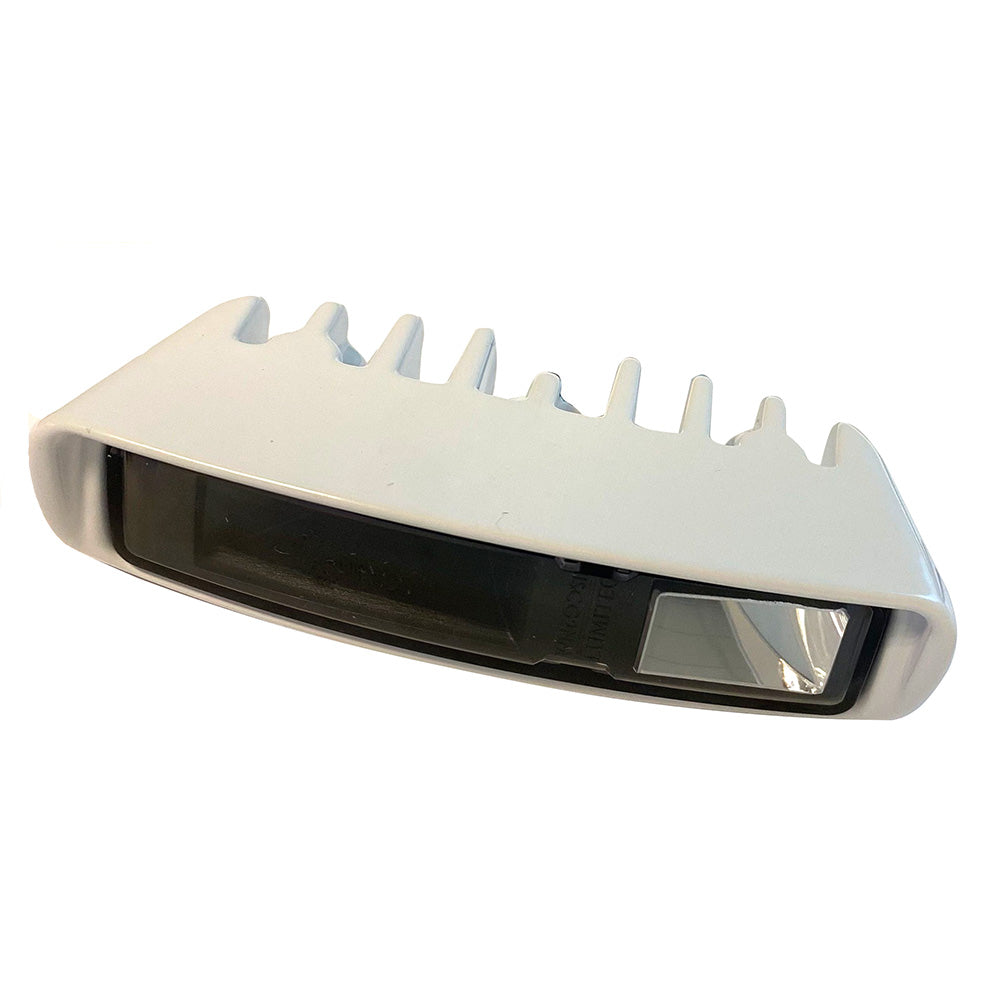

Lumitec Contour Series Navigation/Docking Combination Light - Starboard Green [101839]
- Ships same or next business day.
🛡️ PARTSDUCK Promise - Best price, great support & more
🛡️ PARTSDUCK Promise - Best price, great support & more
More than just a price match! Best price, fast shipping, great stock, real support. More Here
Free Shipping Over $99
Free Shipping Over $99
In stock items ship same or next business day from the closest of our 20+ warehouses with stock. Economy Shipping is free over $99.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday EST.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
No restocking fees on most items, full Return Policy
Lumitec Contour Series Navigation/Docking Combination Light - Starb...
Description
Description
Contour Navigation Docking Combination Light - Starboard Green
Combines a docking beam and navigation-light function. Confirm port or starboard selection and follow the exact mounting and wiring instructions for the selected part.
Selection and control
- Light output: Starboard/Green - White Flood.
- Housing / finish: White.
- Power supply: 10-30 vDC.
- Lumitec does not specify this model for third-party dimmer control.
Specifications
| Color Output | Starboard/Green - White Flood |
|---|---|
| Finish / Housing | White |
| Voltage | 10-30 vDC |
| 12v DC Amps | 25mA |
| 24v DC Amps | 13mA |
| Rated power | 0.3W |
| Height | 1 in |
| Width | 4 in |
| Depth | 1.8 in |
| IP Rating | IP67 |
| PLI Enabled | No |
| Timed Toggled Protocol (TTP) | No |
| Third Party Dimmer Compatibility (3PD) | No |
| Color Match Commitment (CM) | No |
| CE Certified | Yes |
| UL Certified | No |
| USCG Rated | 2 NM |
Part identification
- Manufacturer part number: 101839
- PartsDuck SKU: PD-102524
- UPC: 089300018397
Application and installation planning
Contour navigation products have distinct port, starboard, stern, anchor and masthead functions. Correct orientation and visibility are as important as the physical fit.

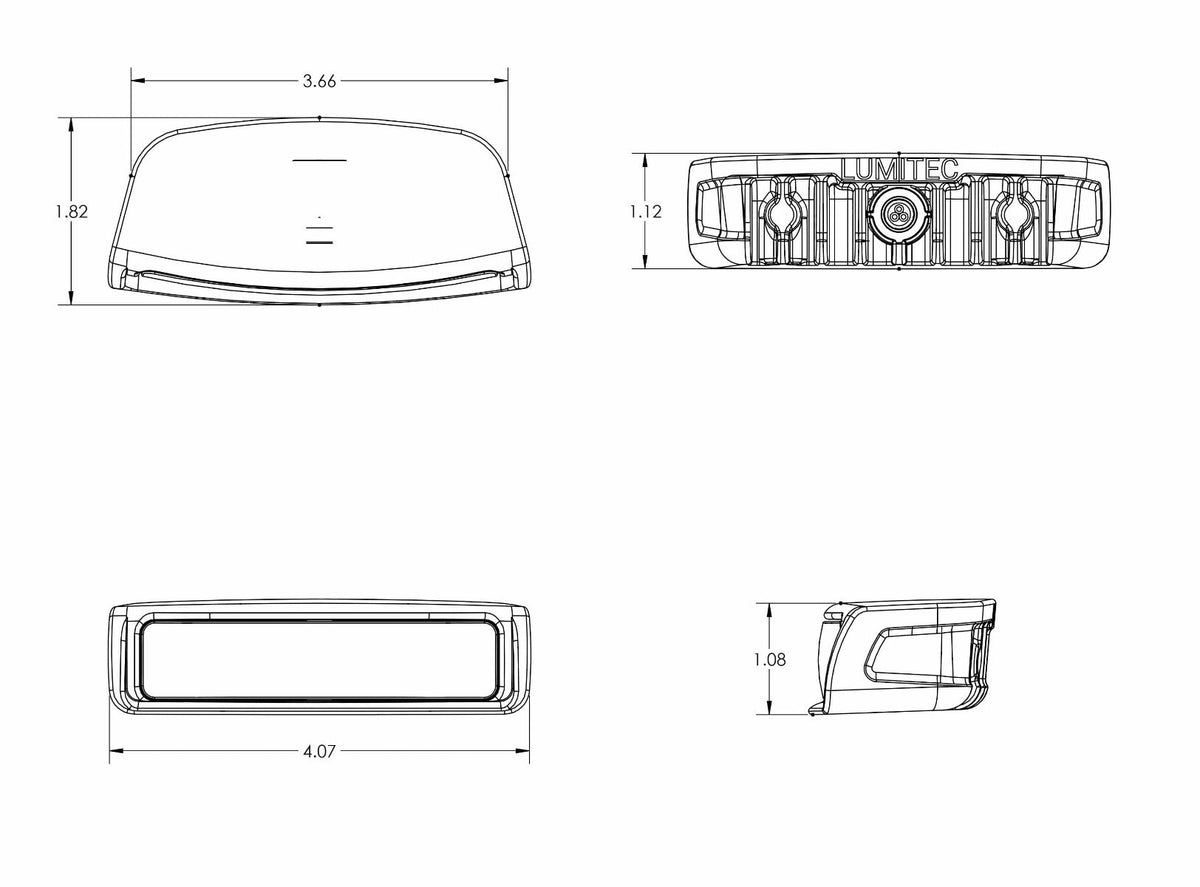

Check the mounting dimensions and wiring access against the actual installation. Size supply wiring and protection for the complete circuit, using the exact model instructions and suitable marine installation practices.
What you are ordering
This listing supplies the exact Lumitec item identified in the part identification section. Use the product identification and specifications to distinguish it from other sizes, finishes and output versions.
Common questions
Can I choose only by the housing color?
No. First match the navigation function and mounting format, then the finish. Use the exact model instructions to preserve the intended light sector.
Can I add a conventional third-party dimmer?
The exact manufacturer specification marks third-party dimmer compatibility as No. Use the supported control method for this model.
Manufacturer warranty
Lumitec states that products purchased from January 1, 2025 onward carry a five-year limited manufacturer warranty for the original purchaser. Earlier purchases retain their applicable original coverage. Keep proof of purchase and obtain a return authorization before a warranty return. Coverage terms and exclusions are available from Lumitec warranty support.
Documents and support
Manufacturer installation resources
Older instruction sheets may show the warranty terms in effect when they were printed. See the current manufacturer warranty policy above for purchase-date coverage.
