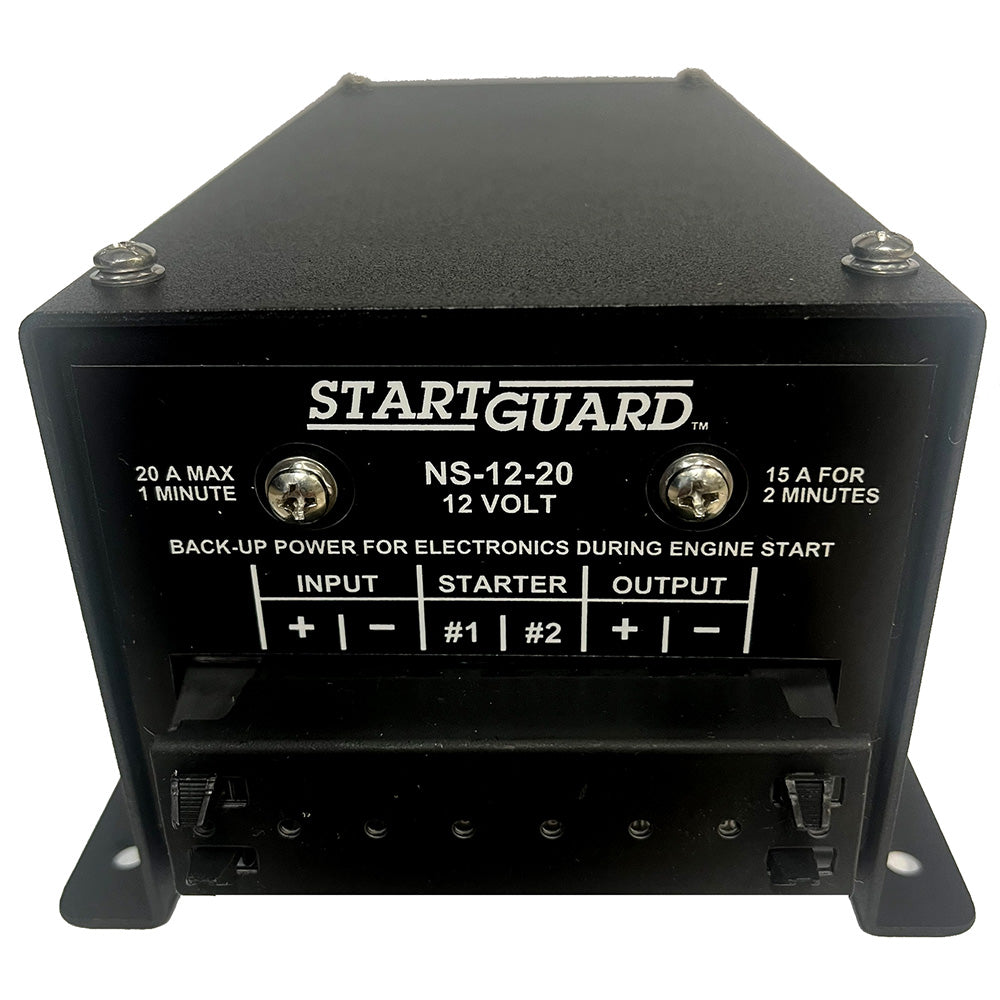

![Newmar NS-12-20 StartGuard [NS-12-20]](http://partsduck.com/cdn/shop/files/102320XL.jpg?v=1747276748&width=1500)
Newmar NS-12-20 StartGuard [NS-12-20]
🛡️ Lifetime Parts Guarantee
🛡️ Lifetime Parts Guarantee
We’ve got your back: For real, For life. Learn More
Free Shipping On All Orders!
Free Shipping On All Orders!
(Normally)In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
Newmar NS-12-20 StartGuard [NS-12-20]
Description
Description
NS-12-20 StartGuard
The abrupt DC system voltage drop that accompanies engine starting can cause micro-processor-driven electronics aboard vehicles or vessels to "dump" programmed memory. StartGuard solves these problems by providing supplemental power to sensitive electronics while the engines are cranking. Newmar's NS-12-20 StartGuard supplies backup power for electronics during engine start.
Mounting
Mount the StartGuard in any convenient location, such as under the dash or console, using the four mounting screws provided or #10 bolts.
Wiring
Input from the power source to the electronics must be routed through the StartGuard.
Specifications:
- Input Voltage: 13.8-14.8 VDC nominal, 15.5 VDC Max
- Relay Activation Input Voltage: 7-15 VDC
- Output: 20 Amps Max
- Battery: 12 VDC, 4.0 Amp/Hour, Sealed Rechargeable, 3-5 Year Life (Typical)
- Backup Capacity (Fully Charged): 20 Amps for one minute/18 Amps for 2 minutes
- Operating Temperature Range: 0-40 degrees Celsius
- Winter Storage Temperature Range: -20 degrees to +40 degrees Celsius
- Dimensions: 8.25" x 4.9" x 3.5"
- Weight: 5.5 lbs
