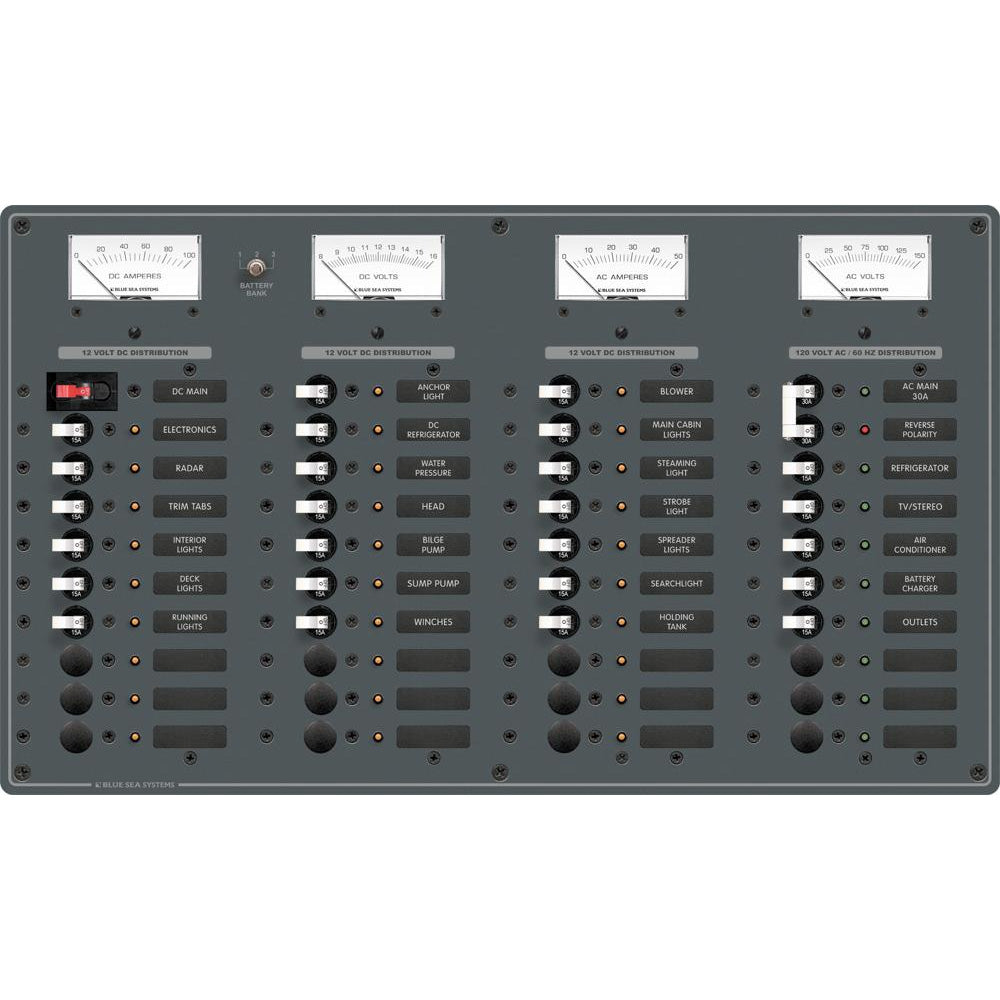

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches) [8095]
Sale price
$1,440.94
Regular price
$2,401.99
Unit price
/
Unavailable
🛡️ Lifetime Parts Guarantee
🛡️ Lifetime Parts Guarantee
We’ve got your back: For real, For life. Learn More
Free Shipping On All Orders!
Free Shipping On All Orders!
(Normally)In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle C...
Sale price
$1,440.94
Regular price
$2,401.99
Unit price
/
Unavailable
Description
Description
AC Main +8 Positions / DC Main +29 Positions
PN: 8095
White Switches
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
- 100 Amperes DC
AC Features
- Red reverse polarity indicating LED
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Specifications:
- AC Positions: Source Selectors +8
- DC Positions: Main +29
- 120 Volts AC
- 12 Volts DC
- (1) 30A - (5) 15A AC Circuit Breakers
- (1) 100A - (20) 15A DC Circuit Breakers
Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Max Breaker Quantity: 8 AC / 29 DC
- AC/DC: Both
- Voltage: 120v/12v
- Box Dimensions: 7"H x 15"W x 22"L WT: 8 lbs
- UPC: 632085080952
