Blue Sea Systems  |  SKU: PD-20234  |  Barcode: 632085030032

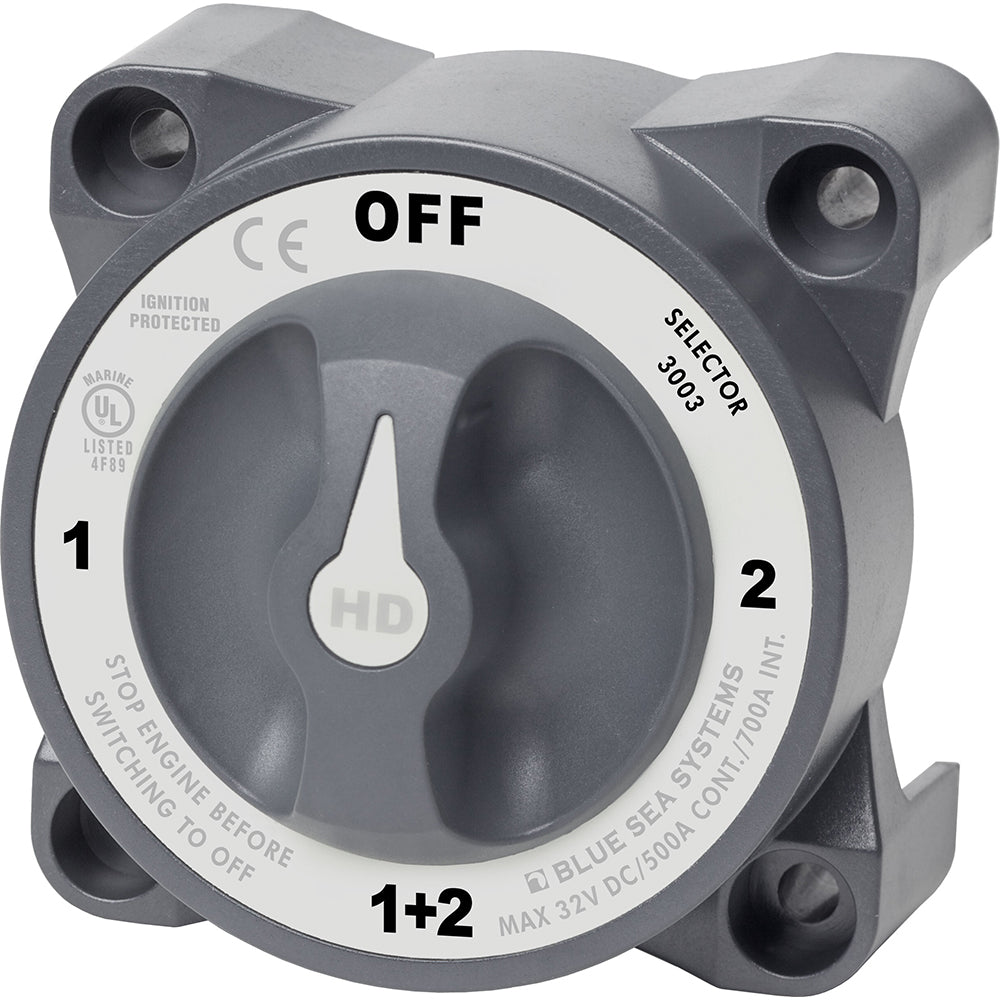

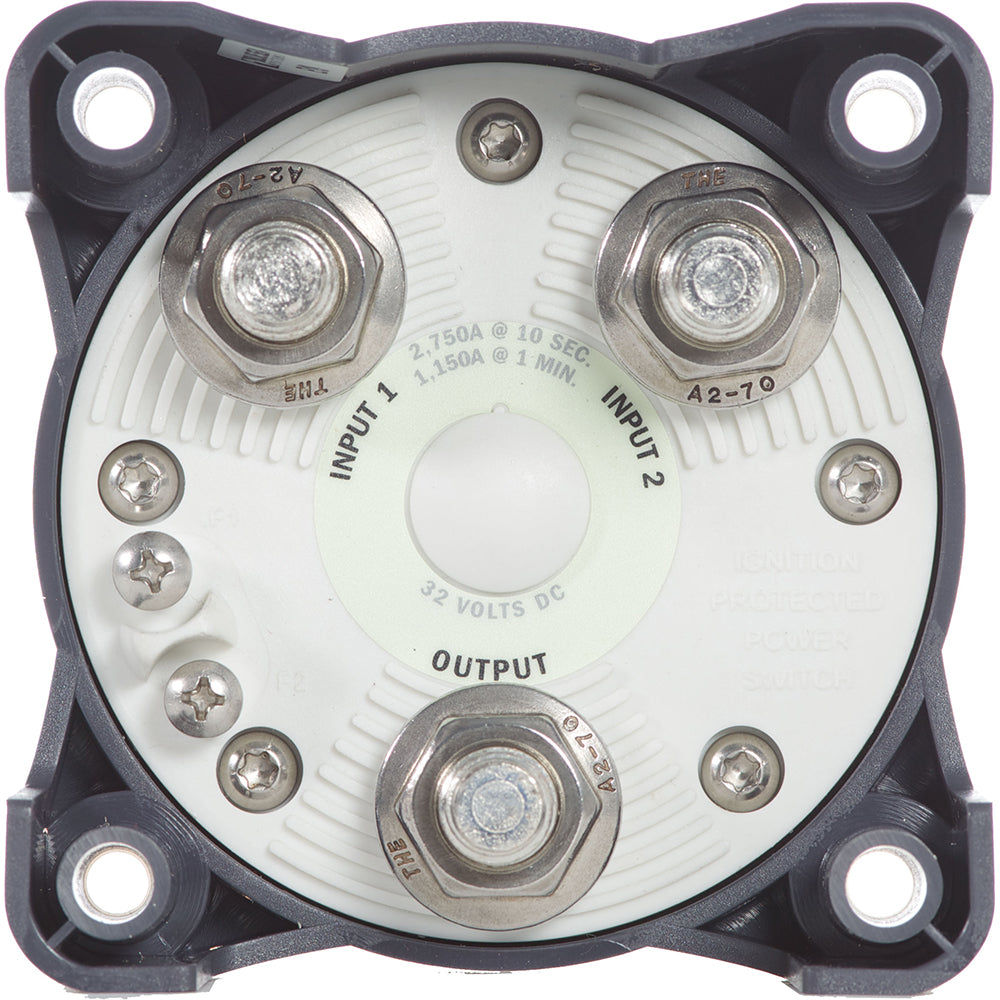

Blue Sea 3003 HD-Series Battery Switch Selector w/Alternator Field Disconnect [3003]

$102.42 $155.99

🛡️ Lifetime Parts Guarantee

We’ve got your back: For real, For life. Learn More

Free Shipping On All Orders!

(Normally)In stock items ship same or next business day from the closest of our 20 warehouses with stock. $6.99 flat rate, or free over $100.

Phone Support (856) 666-7986

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

No Fee Returns for 30 Days

Call us with questions 9-5 Monday - Friday.

(856) 666-7986

Description

3003 HD-Series Battery Switch Selector with Alternator Field Disconnect

Features:

  • 500 Ampere Continuous Rating
  • Accepts 4/0 battery cables
  • Ignition protected - safe for installation aboard gasoline powered boats
  • .870" (22.01mm) stud length to accept 4 or more cable terminals
  • 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Tactile textures indicate knob position by feel only

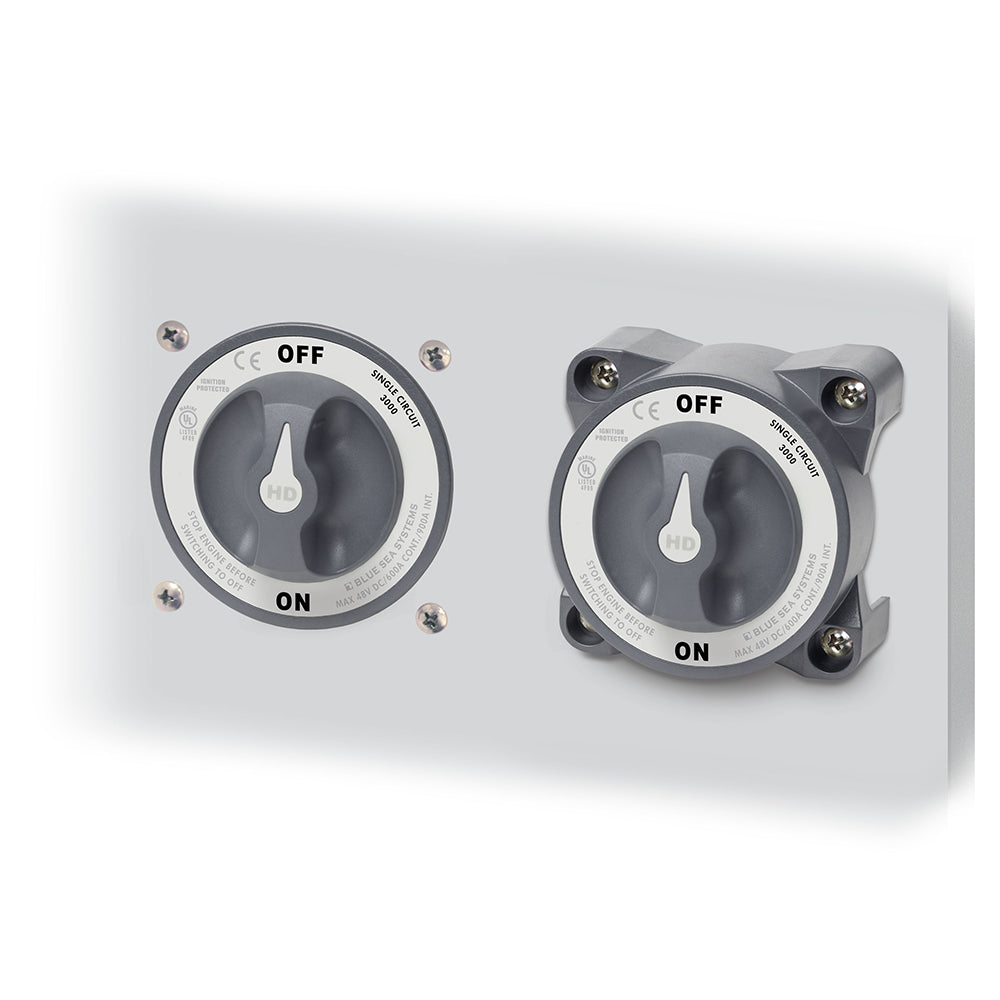

  • Case design allows surface or rear panel mounting
  • Fits all Perko and Guest low amperage battery switch hole patterns

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Positions: 4
  • AFD: Yes
  • Continuous Amperage: 700a
  • Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs
  • UPC: 632085030032

Owner's Manual (pdf)
