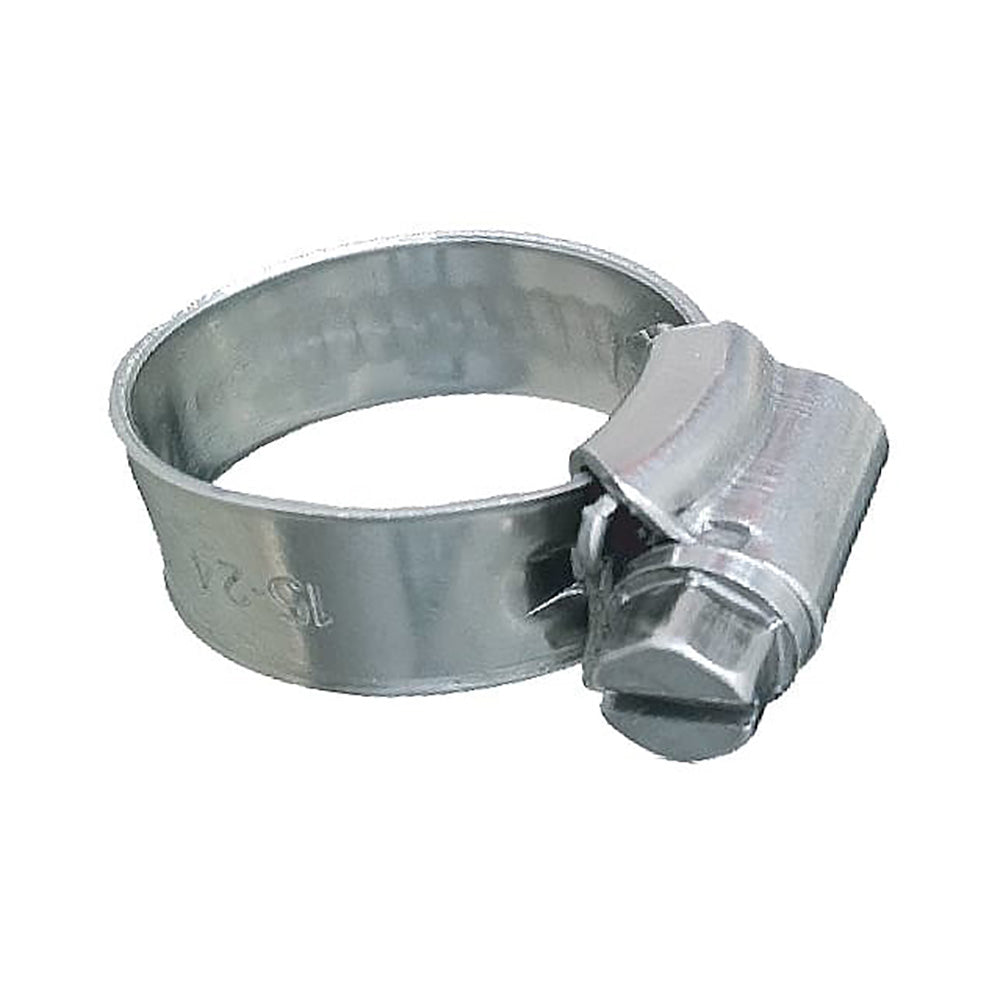

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"21/32" Clamping Range - 10-Pack - SAE Size 4 [705-0561]
🛡️ Lifetime Parts Guarantee
🛡️ Lifetime Parts Guarantee
We’ve got your back: For real, For life. Learn More
Quick Shipping, Free over $100
Quick Shipping, Free over $100
In stock items ship same or next business day. $3.99 flat rate, or free over $100.
Phone Support (856) 666-7986
Phone Support (856) 666-7986
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
No Fee Returns for 30 Days
No Fee Returns for 30 Days
Call us with questions 9-5 Monday - Friday.
(856) 666-7986
Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8&quo...
Description
Description
316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 7/16"–21/32" Clamping Range - 10-Pack - SAE Size 4
Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact “HD NON-PERF” Worm Gear Hose Clamp. The 9.7 mm (0.382”) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.
Features:
- The screw head is 7mm
- Long service life and safety for most general-purpose hose applications and connections
Recommendations:
- Measure hose O.D. before selecting clamp size for proper fit
- Double clamp on each hose end for critical applications
Construction:
- Band & Housing: 316 Stainless Steel 9.7 mm wide band – 0.8mm thick
- Screw Drive: 316 Stainless Steel 7.0 mm screw head
Specifications:
- SAE Size: 4
- Hose Inner Diameter: (inch) 1/4" – 5/16"
- Clamping Range: (inch) 7/16" – 21/32" / (mm) 11-17
- Recommended Torque Inch lbs: 25-35
Quick Guide (pdf)
