Awlgrip High Build Epoxy Primer Base | D8002, D9002

Two-component epoxy surfacer for filling and building a fair surface above the waterline.

What is included

D8002 Off-White or D9002 Yellow base with D3002 converter, sold separately.

Application

Conventional or airless spray; not recommended for roll-and-tip application.

Mixing and reduction

1:1 base:D3002 by volume; induct 15 minutes, then reduce 10–20% with the specified reducer such as T0006.

Surface preparation

Apply over compatible prepared primers/fairing compounds. Properly prepared wood or fiberglass can be coated, with 545 sealing recommended for best results.

Coats and coverage

Two or three coats may be required, with 4–5 mil dry film per coat.

Working and drying times

At 77°F/50% RH: approximately 8-hour pot life; 2 hours between self-coats and 12–24 hours before other compatible products. Sanding is recommended before overcoating with other products.

Compatibility and limits

Not for below-water use. Use the specified primer/finishing sequence rather than applying a finish directly to unsealed fairing.

Package and part numbers

Sold as one container in the selected size unless the package description specifically states otherwise. Components shown as separate products are not included.

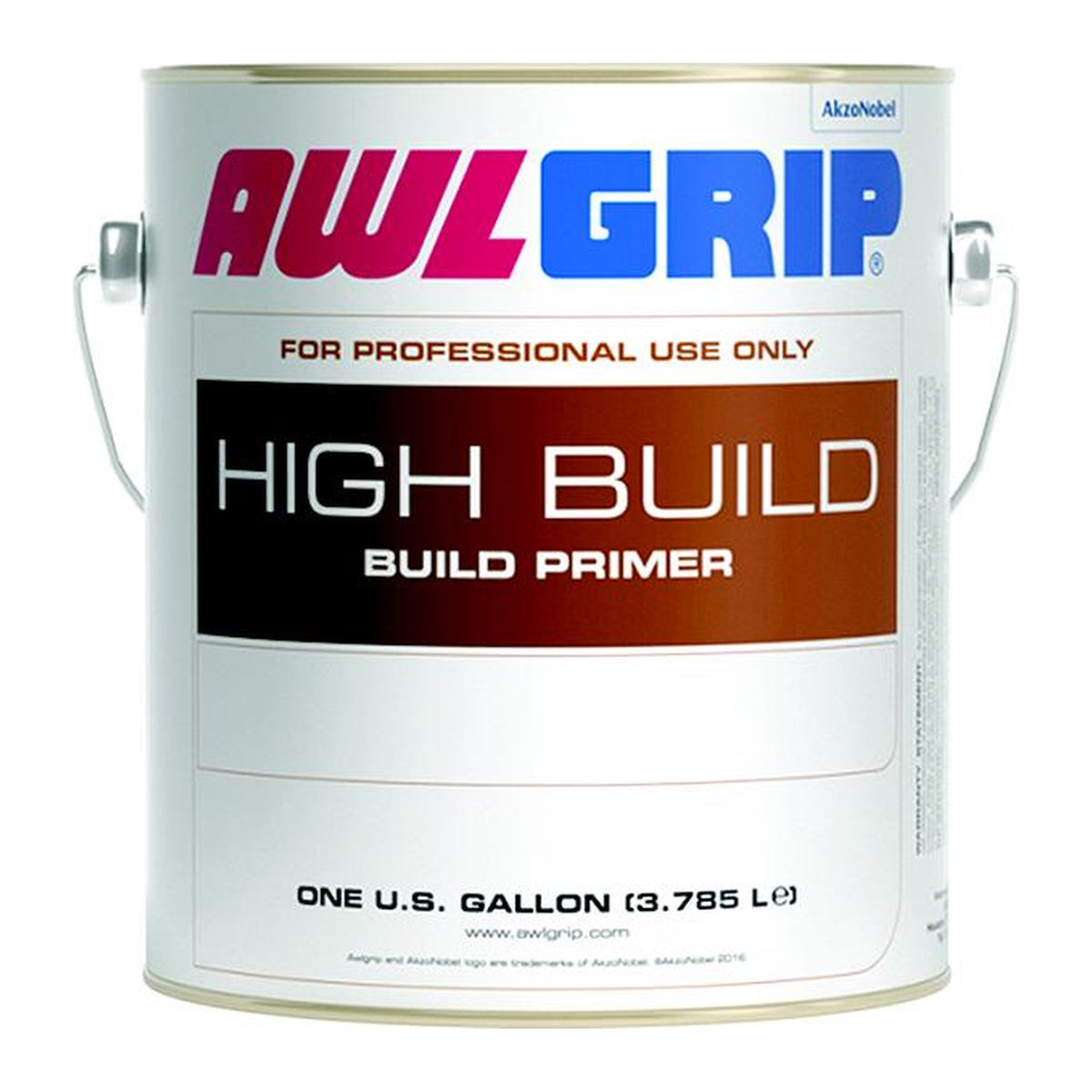

Package photo note: some images show representative manufacturer packaging. Order contents, container size and part number are defined by the selected option and table above; label style and the container pictured may differ.

Screen colors are approximate. Use the manufacturer’s physical color reference and a test panel for final selection. Only verified, product-specific original color chips are displayed; other colors retain their written names.

Safe handling

For professional use. Read the current container label and safety data sheet before opening or mixing. Use the specified ventilation, protective clothing, gloves, eye protection and respiratory protection for the product and application method. Keep solvent-containing materials away from ignition sources. Coating and additive instructions are product-specific.

Manufacturer documents

• High Build technical data sheet
• high build white base — OD8002 safety data sheet
• Current manufacturer application guide and updates

Related system components

• Awlgrip High Build Epoxy Primer Converter | D3002
• Awlgrip Epoxy Primer Reducer | T0006

Shop Awlgrip marine coatings or compare primers barrier coats.
